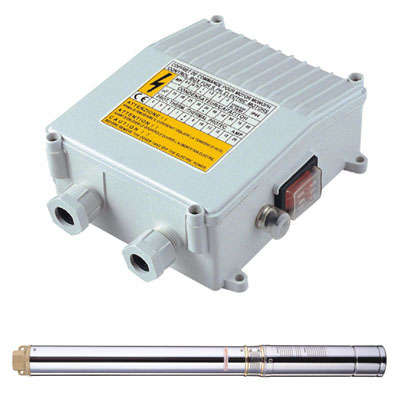

Borehole Pump 220V 0.55KW Manual controller Maximum fluid temperature up to +35°C Maximum sand content : 0.25% Maximum immersion : 80m Minimum borehole diameter : 4" or 100mm Single Phase : 220V - 240V/50Hz Supplied with start control box and protection circuits NEMA dimension standards Curve tolerance according to ISO2548
Applications
Water supply from boreholes or resevoirs, for domestic and garden use and for civil and industrial applications.
Operating Conditions
Motor and Pump
Pump external casing : AISI 304 SS Delivery Casing : 1, Cast-Cu ASTM280; 2, AISI 304 SS Diffuser : Plastic PC Impeller : Plastic POM Shaft : 1, AISI316 SS; 2, AISI 304 SS Shaft Coupling : 1, AISI316 SS; 2, AISI 304 SS Wear ring : AISI 304 SS Motor external Casing : AISI 304 SS Top Chock: 1, Cast-Cu ASTM280; 2, Cast-iron G20 /uni5007 Bottom Support ; AISI 304 SS Mechanical Seal ; Special seal for deep well (carbon-SIC/TC) Shaft : AISI 304 SS-C1045 NSK Seal Lubrican Oil : Oil for food machinery and pharmaceutical use.
Components and Materials
Technical Data Pumps Borehole Pump 220V 0.75KW Manual Controller | ã |
Description | Data |
Model | DM4/8 |
Pump | Borehole Pump |
Voltage | 220V |
Power | 0.55KW |
Maximum Head Height | 58m |
Maximum Head Height Output | 600L/hour |
Size | 2" - 50mm |
ã 1 x Pumps Borehole Pump 220V 0.55KW + Manual Controller (DM4/8) @ R3,336.18 incl. V.A.T. ã
