BOSCH 60CM GAS HOB STAINLESS STEEL SERIES 2 - PBP6C5B62M

BOSCH 60CM GAS HOB STAINLESS STEEL SERIES 2 - PBP6C5B62M

Design

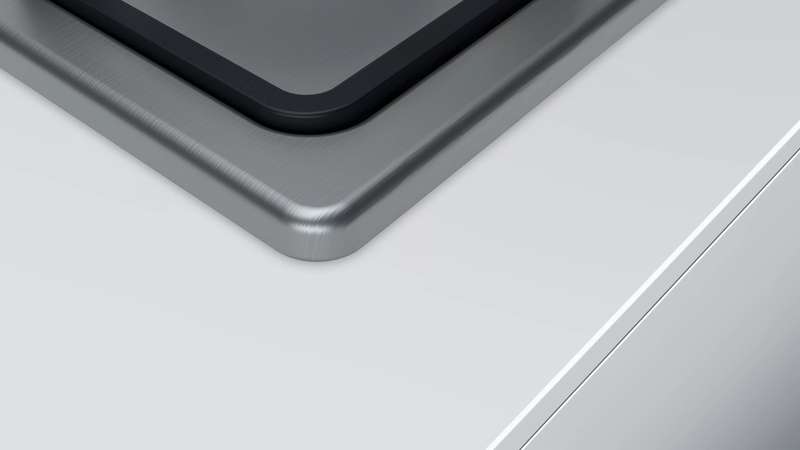

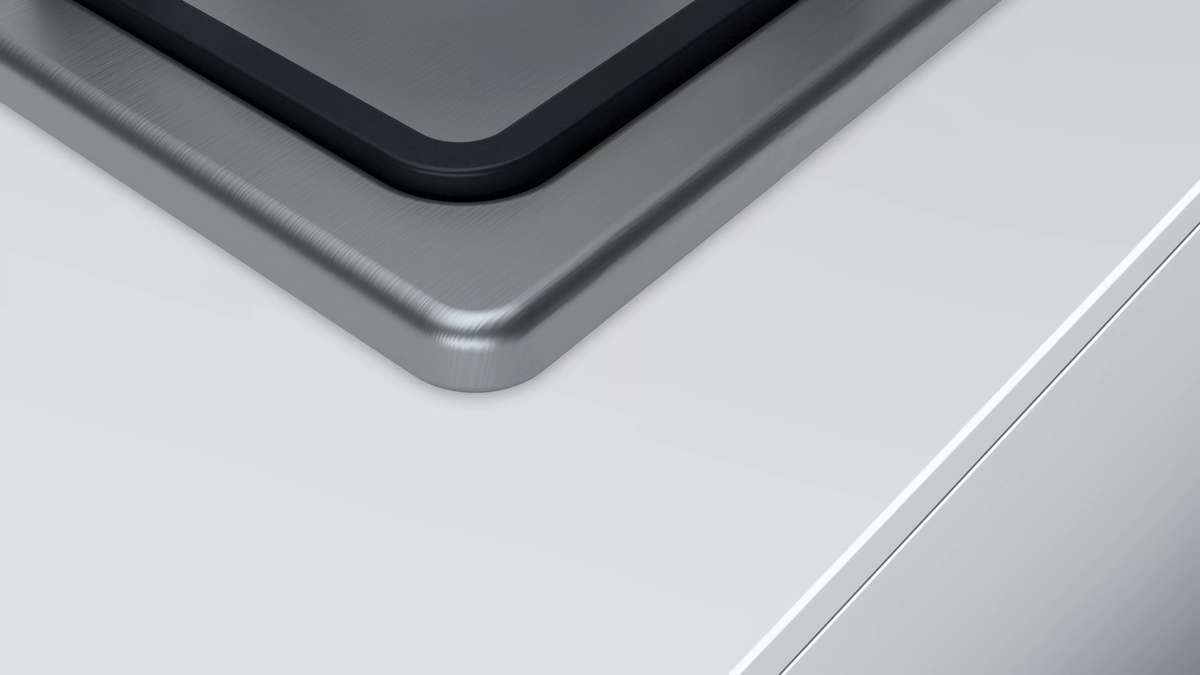

Stainless steel surface


Comfort & Convenience

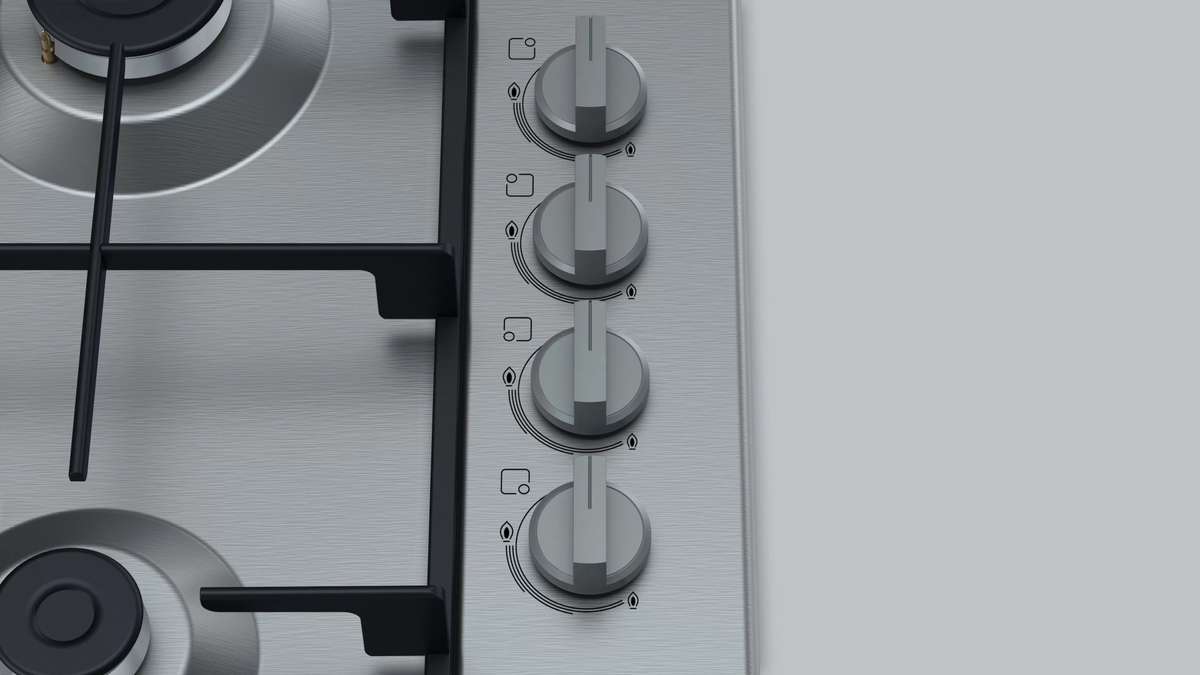

Sword Knobs: access knobs on the side with a strong grip for effortless turning.
Ignition via control knobs: just push and turn the knob to ignite the flame.

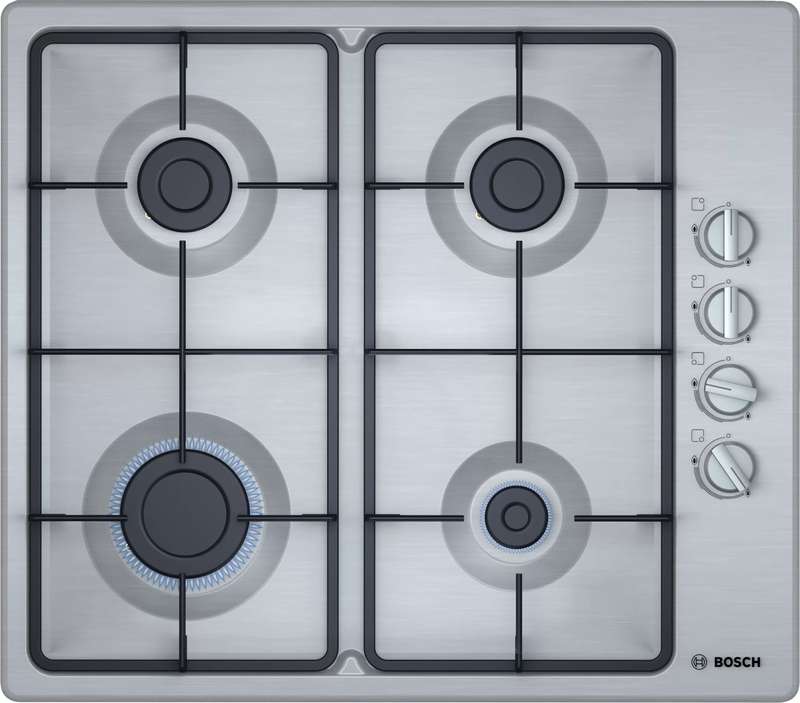

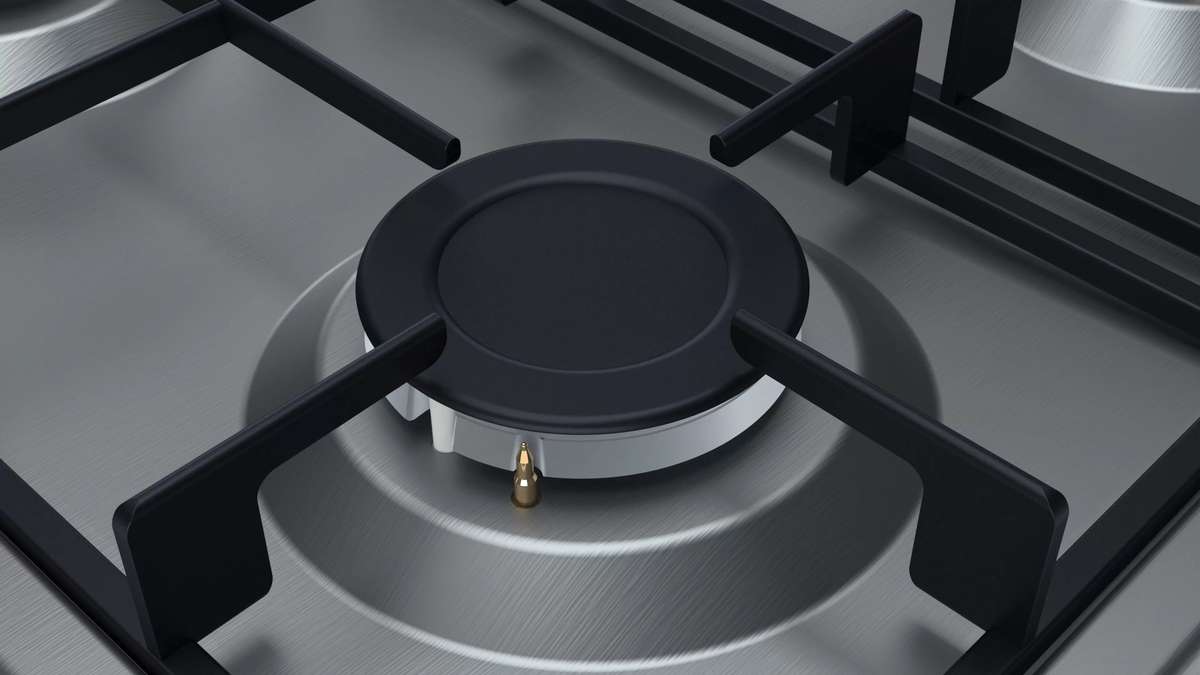

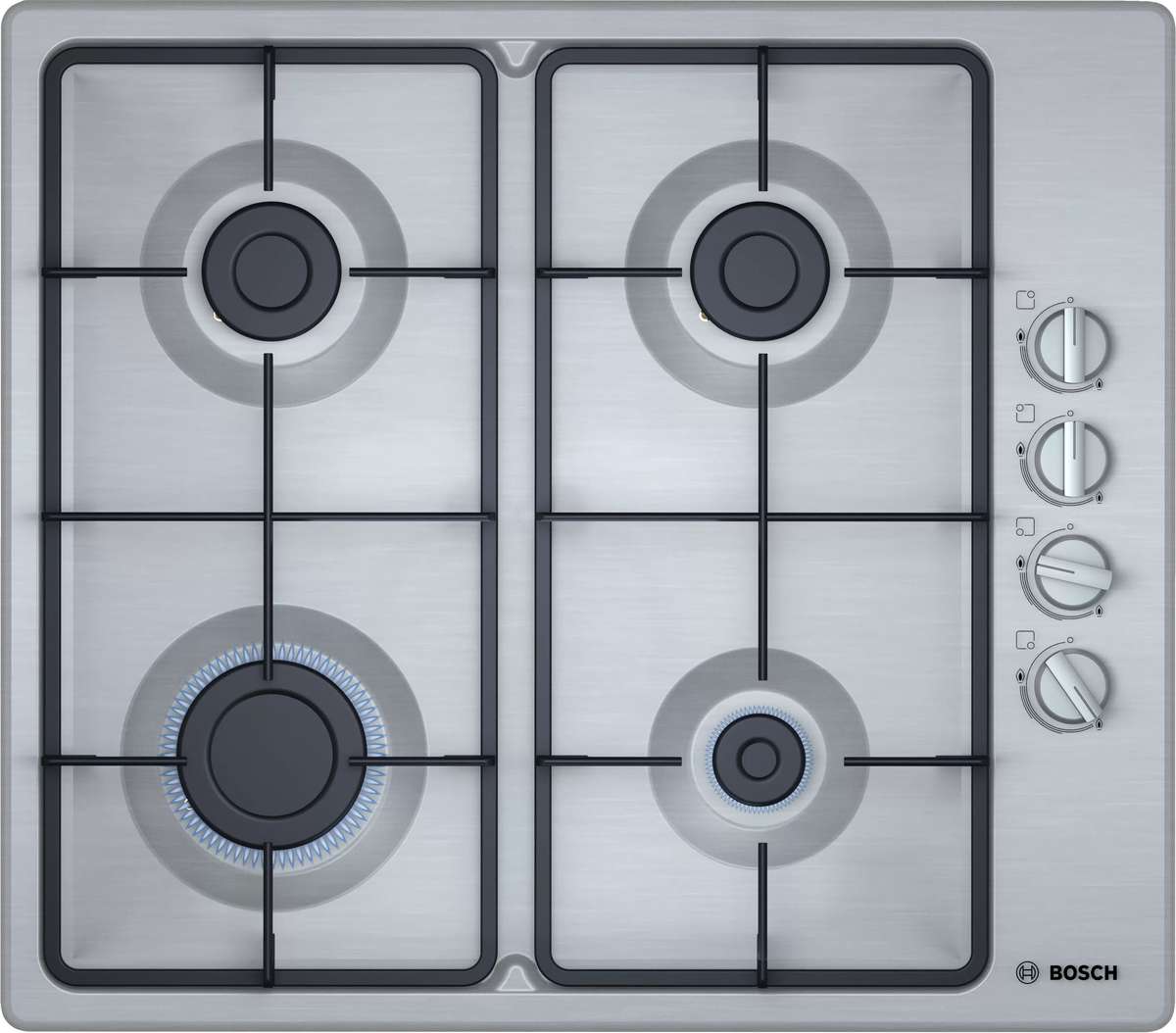

Burners and power

4 PC

Left front: High-speed burner up to 3 KW (depending on gas type)
Left rear: Standard burner up to 1.75 KW (depending on gas type)
Right rear: Standard burner up to 1.75 KW (depending on gas type)
Right front: Economy burner up to 1 KW (depending on gas type)

Safety

Flame failure safety device: prevents unwanted gas flow when flame goes out.

Installation (gas types & measurements)

Preset of liquid gas (28-30/37mbar)
Nozzle set for Natural gas nozzles (20 mbar) included. Nozzles for all other gas types can be ordered via customer service. For nozzle change, please contact customer service.

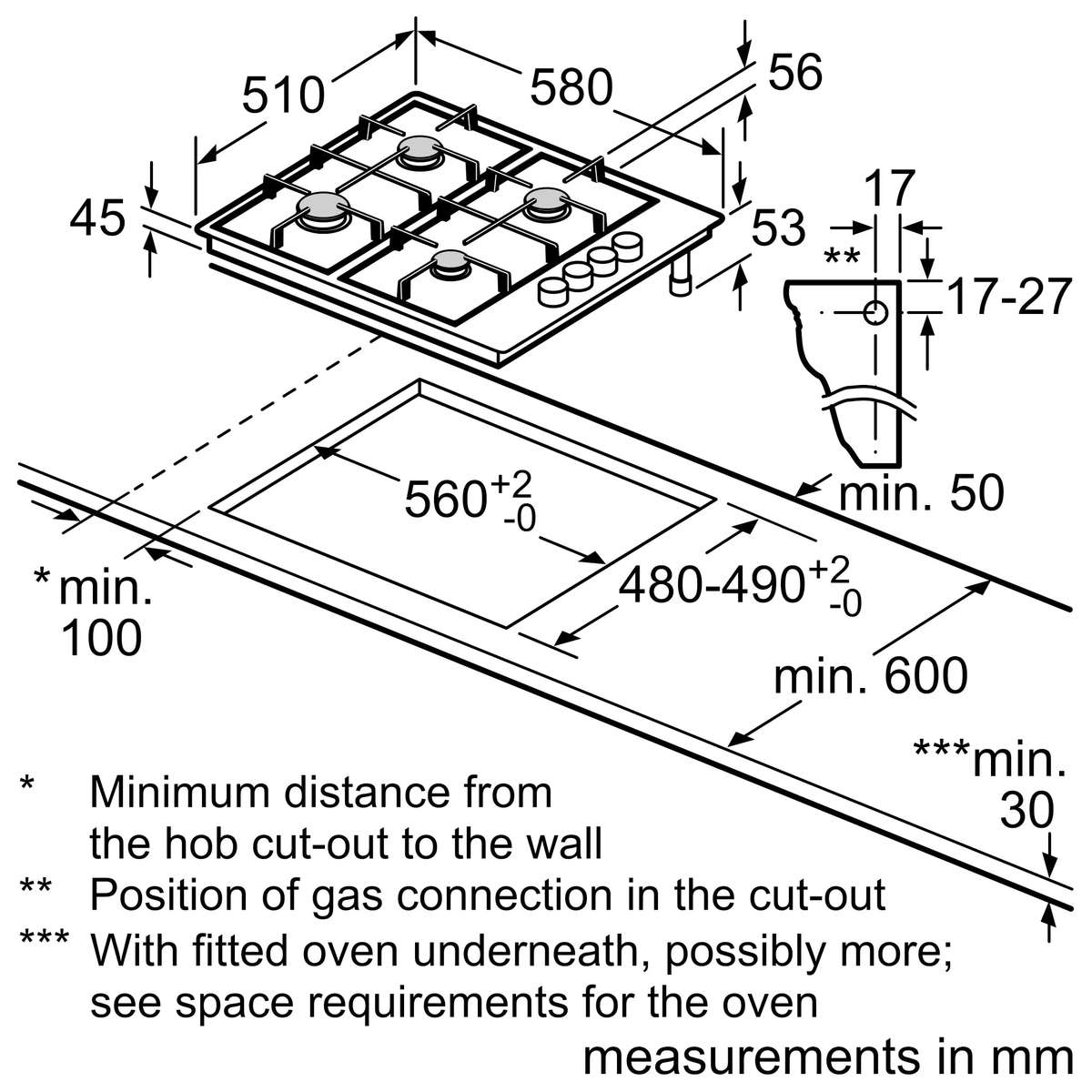

Dimensions of the product (HxWxD mm): 54 x 580 x 510
Required niche size for installation (HxWxD mm) : 43 x 560 x (480 490)
Min. worktop thickness: 30 mm
Power cord: 1.5 m
Connected load: 7.5 KW

Technical Specifications

General

Cooktop type: Gas cooktop
Installation type: Self-sufficient gas hobs
Width: 60 cm
Total number of positions that can be used at the same time: 4
Power of the heating elements: 1 x 1.0 KW, 1 x 3.0 KW, 2 x 1.75 KW
Basic surface material: Stainless steel
Colour: Stainless steel
The energy efficiency of hob: 55.5 %
Included accessories: 1 x cross support for espresso

Size and weight

Dimensions: 43 x 580 x 510 mm
Minimum height for installation: 480 mm
The maximum height for installation: 490 mm
Minimum width for installation: 560 mm
Maximum width for installation: 560 mm
Depth for installation: 43 mm

Connection rating: 1 W
Gas connection rating: 7,500 W
Fuse protection: 3 A
Voltage: 220-240 V
Length electrical supply cord: 150 cm
Plug type: no plug
Gas type: Liquidgas G30,31 28-30/37 mbar
Alternative gas type: Nat gas H/E/(L) 20 (25) bar

powerBoost: No
Zone light: No
fryingSensor Plus: No
Infrared cooking sensor: No
PerfectCook sensor ready (sensor sold separately): No
Powermove: No
Setting transfer function: No
Quick start: No
Keep warm function: No
Timer: No
Flame select: No
Burner Type: No
dishwasher safe pan support: No
Ignition system: Yes

Connectivity

Home Connect: No
Cooktop-based hood control: No

Safety

Residual heat indicator: without
Type of safety device for gas: Electromagnetic for each burner

Manufacturer: Bosch
Electricity Consumption: 7.5 KW
