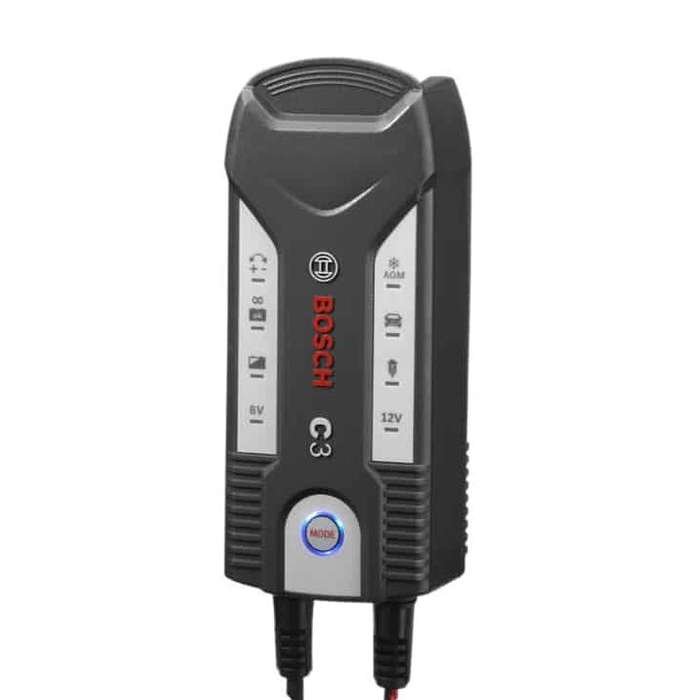

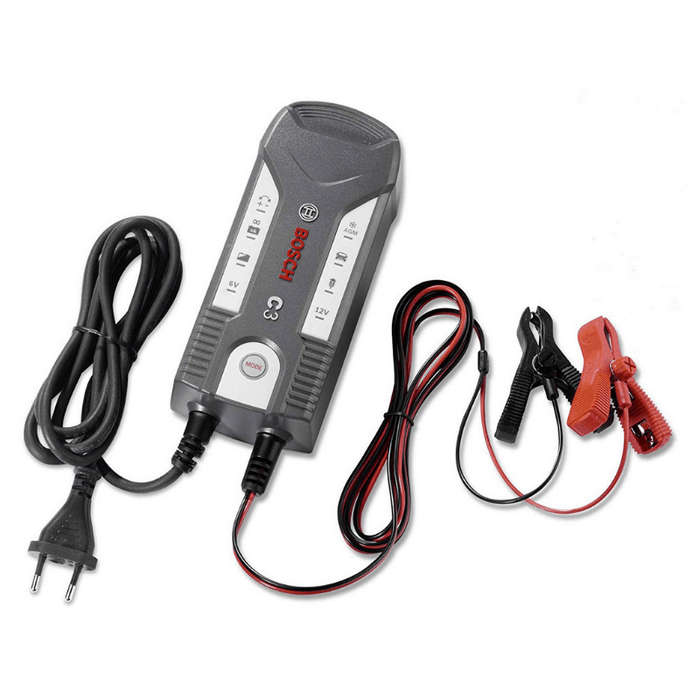

Bosch C3 Battery Charger

The Bosch C3 battery charger is an intelligent four-stage automatic battery charger with pulse charging and trickle charging capabilities. Its trickle charging mode enables the charger to monitor and keep the battery at a high level of charge which helps to reduce self-discharge.

Features:

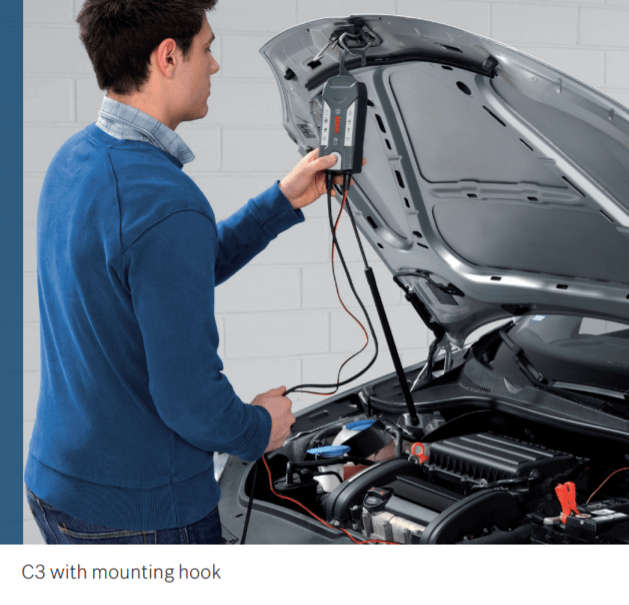

• Mounting hook
• Suitable for Lead-acid wet, AGM and gel batteries
• No risk of overcharge
• Protection against sparks
• Full protection against short-circuit & reverse polarity
• One button for ease of use
• Fully automatic charging
• Protection against overheating
• Memory function
• The C3 battery charger meets the IP65 dust and splashproof standard and is certified to Australian electrical standards.

Specifications:

• Input Voltage: 230-240v AC 50Hz
• Starting Current: <50a
• Rated Input Current: max 0.6a (rms value)
• Power Input: 60w
• Rated Output Voltage: 6v / 12v
• Charging Voltage: 14.7v +/-0.25v, 7.2v +/- 0.25v
• Charging Current: 3.8a +/- 10%, 0.8a +/- 10%
• Ripple: Max 150 mV
• Backflow Current: <5mA
• Battery Type: 6v and 12v AGM, GEL, Flooded and VLRA
• Battery Capacity: 6v 1.2ahr-14ahr, 12v 1.2ahr-120ahr
• Fuse Internal: 1.6a
• Noise Level: <50 dBA
• Dimensions: 185mm x 81mm x 55mm
