Bosch GLL3-80 360-Degree 3-Plane Leveling and Alignment Line LaserBosch GLL3-80 360-Degree 3-Plane Leveling and Alignment Line Laser Features: Accuracy: Up to +/-1/4-in @ 100-ft Laser Diode: Class II 635-650 nm Leveling Type:
Self-Leveling, Up to 4 Degrees Mount Threading: 1/4-20, 5/8-11 Operating Temperature: 14 Degrees F / -10 Degrees C up to 113 Degrees F / 45 Degrees C Range: Up to 65-ft Weight (oz.): 20.8 oz.
Horizontal and Vertical Modes

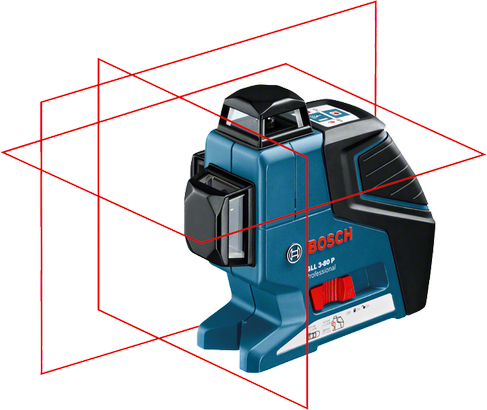

Projecting three luminous perpendicular 360-degree lines either together or independently, Bosch’s GLL3-80 three-plane leveling and alignment line laser has a top turret that projects on the horizontal and two side turrets that project two planes on the vertical at 90 degrees to each. This provides wall and partition layouts without the necessity of moving parts or any rotation. The laser line is constant and compact. There is also a pulse laser receive mode (for use with the optional LR2 laser receiver, which is not included) that can be used at up to 265 feet in all bright light. The smart pendulum leveling system handily self-levels and indicates out-of-level condition, which helps keep jobs on track. The secure transport lock also protects the pendulum when the unit is switched off.
Sturdy and User Friendly

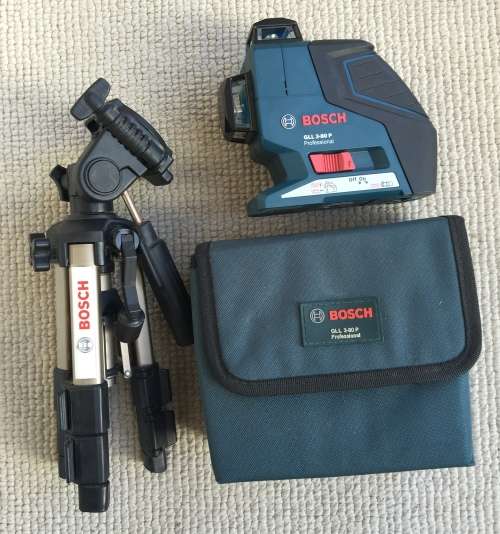

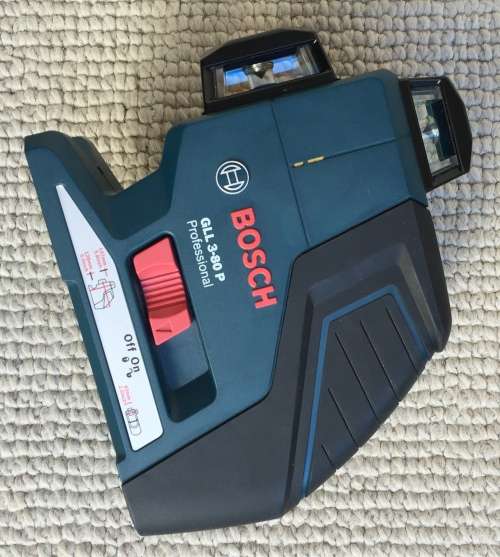

Bosch’s GLL3-80 three-plane leveling and alignment line laser is IP54 rated, which means that it’s protected against dust and water, providing a longer product life. It has a co-molded rubber housing that’s easy to hold on to and a freestanding base, which has magnets on the base to attach it to a metal track and both 1/4-20 and 5/8-11 tripod mounting. The keypad has a focus on readability, and has a pulse mode indicator, manual mode indicator, plane selection button (four possible plane selections), and a low battery indicator that blinks and provides a five-second acoustic warning signal. The GLL3-80 includes the WM1 positioning device that has a micro-fine height adjustment and laser detector with a bracket.
Multiple Applications

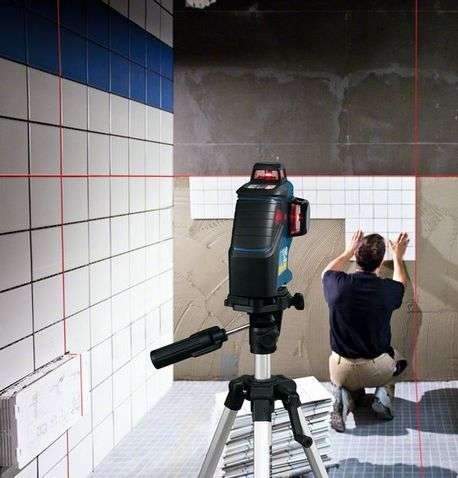

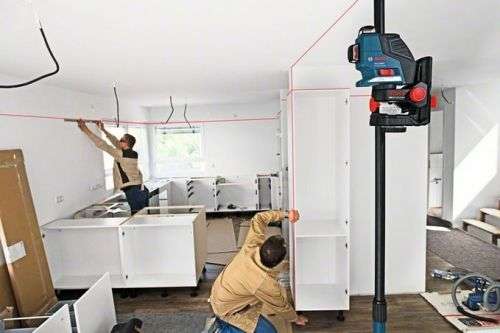

With its strong feature set, 360-degree capability, and portability, Bosch’s GLL3-80 three-plane leveling and alignment line laser is an asset with a range of applications, including helping with projects having to do with aligning pipes and conduit, cabinet and shelf levelling and alignment, door and window installation, finish carpentry, interior decorating, layout remodeling, wall and floor covering, wall alignment, and a wide array of other installation and finishing jobs.
