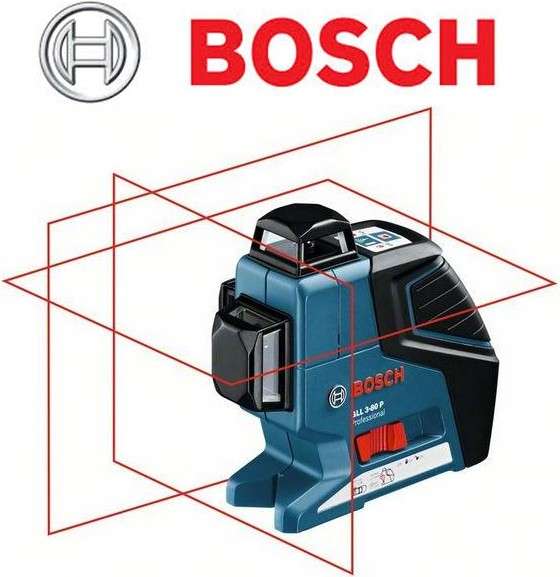

The compact Multi Line Laser for all indoor applications
-One horizontal and 2 vertical 360° lines enable many new applications for simultaneous marking, alignment and levelling indoors
-Self-levelling (4° in 4 sec), very precise (± 0.2 mm/m) and range of up to 80 m with receiver
-Compact, easy-to-handle and extremely robust (IP54)
Laser diode: 640 nm, < 1 mW
Operating temperature: -10 ¿ 40 °C
Storage temperature: -20 ¿ 70 °C
Laser class: 2
Working range: 40 m
Working range with receiver: 80 m (Diameter)
Working range without receiver: 40 m (Diameter)
Levelling accuracy: ± 0.2 mm/m
Self-levelling range: ± 4°
Levelling time: 4 s
Dust and splash protection: IP 54
Power supply: 3 x 1.5 V LR03 (AAA)
Operating time, max.: 18 h in 1-line mode
Tripod thread: 1/4", 5/8"
Weight, approx.: 0,76 kg
Length: 159 mm
Width: 75 mm
Height: 141 mm
Projection: 3 x 360° line
