Additional product information
Energy Efficiency Class: B*
Average Energy Consumption: 73.6 kWh/year*
Blower Efficiency Class: B*
Lighting Efficiency Class: A*
Grease Filtering Efficiency Class: B*
Noise max. Normal Level: 57 dB*
Technical information:

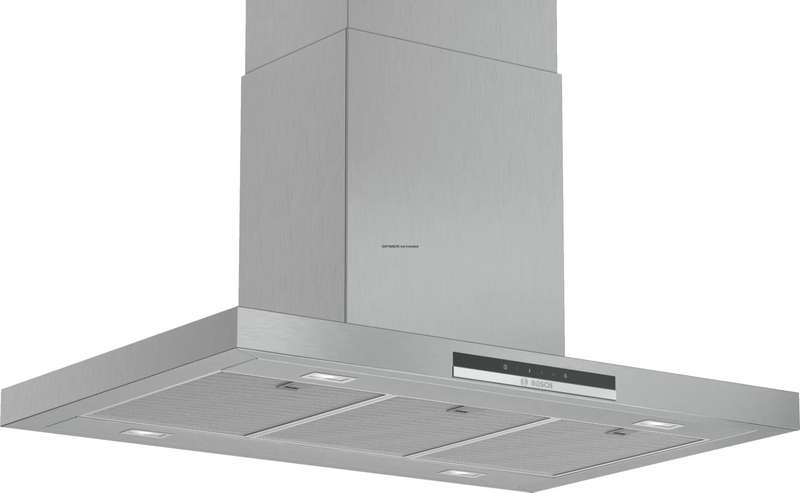

Island extractor
90 cm wide
Brushed steel
Suitable for ducted or recirculating operation
Recirc. kit or clean air kit
Designed for ceiling mounted installation
touch control for extractor speeds and light
Electronic controls
touch control with Electronic display
3 speed + intensive operation via touch control
Electronic controls via touch control with Electronic display
touch control (3 speed + intensive operation) with Electronic display
3 speed + intensive operation
Intensive op. revert dur.: 6 min.
Easy to clean
4 x 1,5W LED
Light Intensity: 409 lux
Colour Temperature: 3500 K
Removable metal grease filters, dishwasher safe
Extraction rate according to DIN/EN 61591 ������ 15 cm: max. Normal 438 m�����/h Intensive 754 m�����/h
Ducted extraction rate according to DIN/EN 61591max. 438 m�����/h
Maximum extraction 438 m3/h
Extraction rate exhaust air according to EN 61591:
max. normal use 438 m�����/h, intensive 754 m�����/h
Dimensions recirculating with CleanAir module (HxWxD): 812-1044 x 898 x 600 mm
Additional noise insulation
Noise level according to EN 60704-3 und EN 60704-2-13 at max. normal use exhaust air: 57 dB(A) re 1 pW (44 dB(A) re 20 ����Pa sound pressure)
Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
Max. normal use: 57 dB(A) re 1 pW (44 dB(A) re 20 ����Pa sound pressure)
Intensive: 68 dB(A) re 1 pW (55 dB(A) re 20 ����Pa sound pressure)
Diameter pipe ����� 150 mm (����� 120 mm enclosed)
Yes
Max. extraction rate: 754 m3/h
Dimensions exhaust air (HxWxD): 744-924 x 898 x 600 mm
Dimensions recirculating (HxWxD): 744-1044 x 898 x 600 mm
Power rating: 256 W
Electrical cable lenght 1.3 m
Voltage: 220 - 240 V
Additional product information
�����
General
Width��������������� 90
Depth of the product�������������������� 600
Built-in / Free-standing Built-in
Operating Mode����������������������������������������������������������������� Convertible
Max. air recirculation (m�����/h)������������������������������ 339
Sound pressure max. normal������������������������� 44
Type of control setting and signalling devices������������������������� LED, touch control
Total annual energy consumption (kWh)���������������������������������������������������������������������� 73.6
Power consumption standby/display off���������������������������������������������������������������������� 0.2
