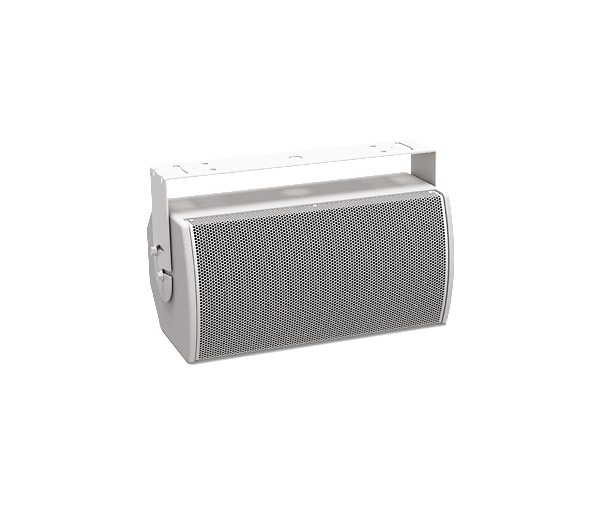

BOSE Professional ArenaMatch Utility AMU108 Small-Format Foreground/Fill Loudspeaker - Each - White
Built for zone-fill coverage or high-SPL foreground music, Bose Professional ArenaMatch Utility loudspeakers offer similar tonal balance to ArenaMatch array modules but in compact designs. They have the same EMB2S compression driver as ArenaMatch arrays, ensuring consistent sound, and the same IP55 weather rating. Deploy them for zone-fill coverage in sports stadiums, arenas, outdoor entertainment centers, and more. Or use them to provide intelligible, high-level sound in any outdoor area from niche venues such as breweries and fairgrounds to larger settings like resorts and outdoor shopping centers.
The AMU108 is a small-format ArenaMatch Utility model for outdoor applications that require excellent audio from compact loudspeaker. It provides wide, even coverage with a 90° x 60° constant-directivity high-frequency horn, 80 Hz 16 kHz frequency response, 121 dB peak SPL, and supports the lowest vocal ranges with a Bose Professional LF8 8-inch woofer.
Features:
- Deploy as zone-fill to support ArenaMatch arrays systems, delivering powerful, intelligible sound and ensuring consistent tonal balance with EMB2S compression drivers in every speaker
- Deploy to provide high-level foreground music in any outdoor venue
- Install outdoors with an IP55 weather rating, three-layer stainless steel grille, water-resistant woofer cone coating, industrial polyurethane exterior coating, and molded cover to protect inputs
- Adapt to a variety of configurations all models ship standard with 70/100V transformer inputs and passive crossover with optimized filters for each transducer for more consistent frequency and polar response
- Streamline the design process by combining with complementary Bose Professional products, such as PowerMatch amplifiers and ControlSpace DSPs
- Mount easily with included stainless-steel U-bracket; rear enclosure panel also includes M8 threaded inserts to accept third-party accessory mounting brackets
- Provide wide, even coverage with 90° x 60° constant-directivity high-frequency horn, which can be rotated for horizontal or vertical installation
- Perform in the most demanding applications with 80 Hz 16 kHz frequency response and 121 dB maximum peak SPL
- Support lowest vocal range with 1x Bose Professional LF8 8-inch woofer featuring a 2-inch long-excursion voice coil, which extends response to 80 Hz
Specifications:
Frequency Response (+/-3 dB)
90 Hz to 16 kHz
Nominal Coverage Pattern (H x V)
90° x 60°
Power Handling, peak
800W
Maximum SPL @ 1m
119 db Free Field
121 db Wall/Ceiling
Nominal Impedance
8
Frequency Range (-10 dB)
80 Hz to 16 kHz
Power Handling, long-term continuous
200 W
Sensitivity
91 db Free Field
93 db Wall/Ceiling
Maximum SPL @ 1m, peak
120 db Free Field
122 db Wall/Ceiling
