- Deploy as zone-fill to support ArenaMatch arrays systems, delivering powerful, intelligible sound and ensuring consistent tonal balance with EMB2S compression drivers in every speaker
- Deploy to provide high-level foreground music in any outdoor venue

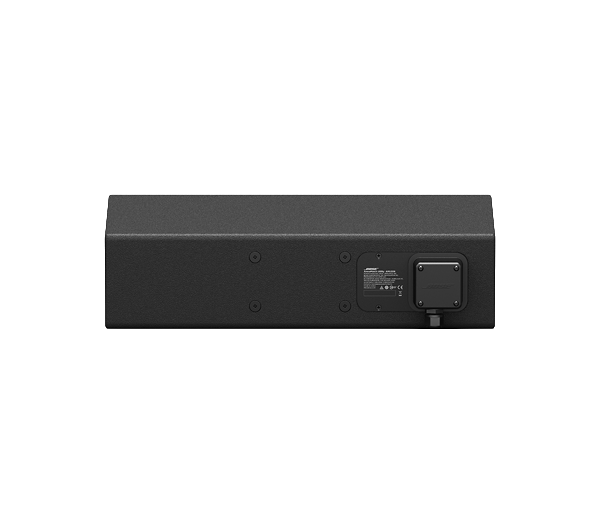

- Install outdoors with an IP55 weather rating, three-layer stainless steel grille, water-resistant woofer cone coating, industrial polyurethane exterior coating, and molded cover to protect inputs
- Adapt to a variety of configurations all models ship standard with 70/100V transformer inputs and passive crossover with optimized filters for each transducer for more consistent frequency and polar response
- Streamline the design process by combining with complementary Bose Professional products, such as PowerMatch amplifiers and ControlSpace DSPs

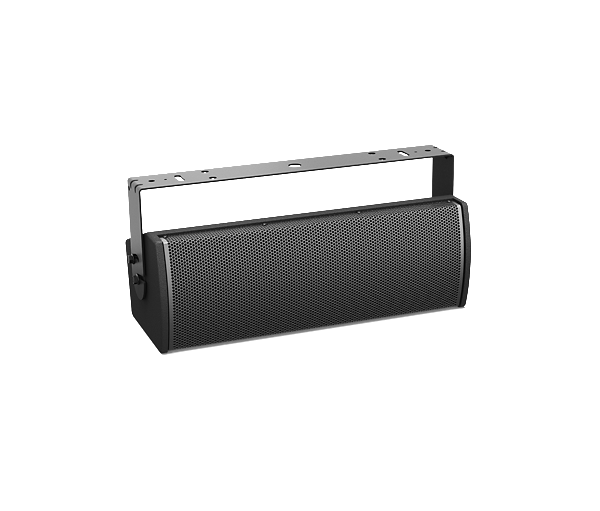

- Mount easily with included stainless-steel U-bracket; rear enclosure panel also includes M8 threaded inserts to accept third-party accessory mounting brackets
- Provide wide, even coverage with 120° x 60° constant-directivity high-frequency horn, which can be rotated for horizontal or vertical installation
- Perform in the most demanding applications with 80 Hz 16 kHz frequency response and 122 dB maximum peak SPL
- Support lowest vocal range with 2x Bose Professional LF6 6.5-inch woofers featuring extended-excursion voice coil, which extends response to 80 Hz
Specifications:
Frequency Response (+/-3 dB)
90 Hz to 16 kHz
Nominal Coverage Pattern (H x V)
120° x 60°
Power Handling, peak
800W
Maximum SPL @ 1m
114 db Free Field
116 db Wall/Celling
Nominal Impedance
8
Frequency Range (-10 dB)
80 Hz to 16 kHz
Power Handling, long-term continuous
200 W
Sensitivity
90 db Free Field
92 db Wall/Ceiling
Maximum SPL @ 1m, peak
120 db Free Field
122 db Wall/Ceiling
