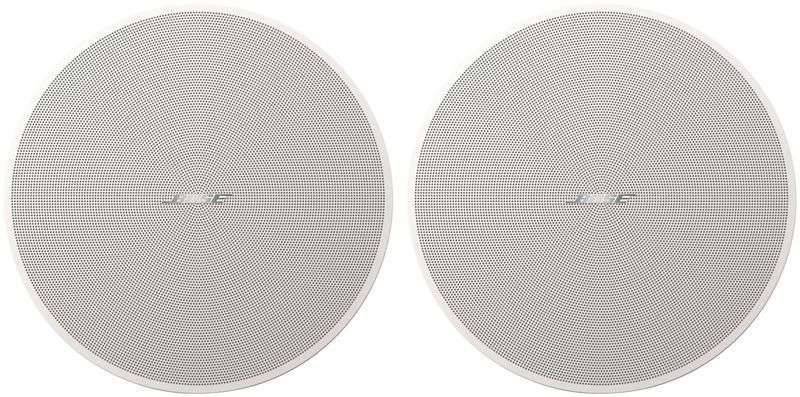

BOSE Professional DesignMax DM5C Loudspeaker - Pair - White

With coaxial two-way drivers, the 60-watt Bose Professional DesignMax DM5C loudspeaker offers rich lows and clear, intelligible highs along with premium aesthetics that complement any commercial sound installation. The DM5C features a two-way 5.25-inch woofer and 1-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 65 Hz 20 kHz. The in-ceiling DM5C is installed easily via QuickHold mounting arms.

Combine DesignMax models to complete any design, big or small 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options

Deliver rich lows and clear, intelligible highs with coaxial two-way drivers no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter

Blend with any room design with elegant form factor, minimum-bezel grilles available in black or white, and removable logos

Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage

Install easily with industry-standard accessories all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

Performing arts venues
Places of worship
Conference centers
Retail stores
Restaurants and bars
Hospitality venues

Technical Summary
Frequency Response (+/-3 dB)
73 - 17,000 Hz

Nominal coverage (H x V)
130° Conical

Power Handling, peak
240 W

Maximum SPL @ 1m
105 dB

Frequency Range (-10 dB)
65 - 20,000 Hz

Power Handling, long-term continuous
60 W

Sensitivity (SPL/1W @ 1 m)
87 dB

Nominal Impedance
8 (transformer bypass)
