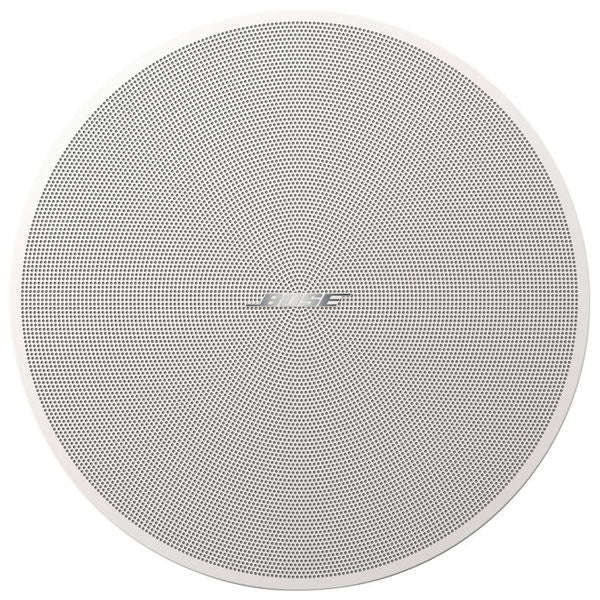

Delivering rich low-end performance, the 180-watt Bose Professional DesignMax DM8C-SUB subwoofer brings instantly impressive bass to any commercial sound installation. The in-ceiling DM8C-SUB has an 8-inch woofer, 38 Hz 155 Hz frequency range, and is installed easily via QuickHold mounting arms. DesginMax subwoofers complement and enhance any DesignMax installation.
Features:
Combine DesignMax models to complete any design, big or small 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
Deliver rich bass performance with custom Bose Professional drivers; for optimal performance use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
Install easily with industry-standard accessories all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
Applications
Performing arts venues
Places of worship
Conference centers
Retail stores
Restaurants and bars
Hospitality venues
Specifications
Technical Summary
Frequency Response (+/-3 dB)
45 - 117 Hz
Nominal coverage (H x V)
Onmidirectional below 200 Hz
Power Handling, peak
720 W
Maximum SPL @ 1m
112 dB
Frequency Range (-10 dB)
38 - 115 Hz
Power Handling, long-term continuous
180 W
Sensitivity (SPL/1W @ 1 m)
89 dB
Nominal Impedance
8 (transformer bypass)
