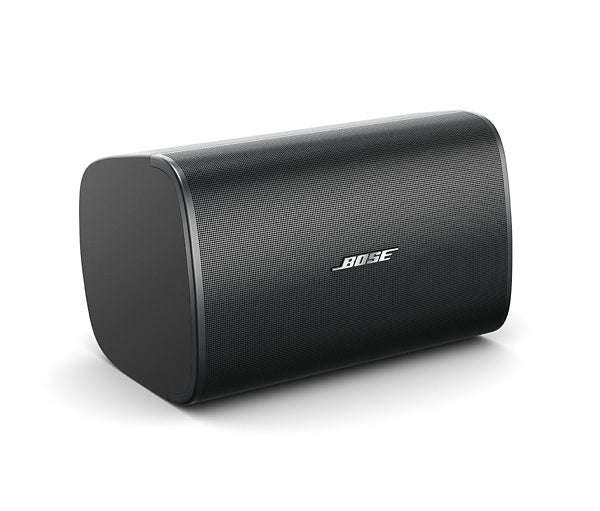

BOSE Professional DesignMax DM8S Surface Loudspeaker- Each - Black

BOSE Professional DesignMax DM8S Surface Loudspeaker- Each - Black

With coaxial two-way drivers, the 150-watt Bose Professional DesignMax DM8S loudspeaker delivers powerful SPL suitable for foreground music along with premium aesthetics that complement any commercial sound installation. The DM8s features a two-way, 8-inch woofer and a center-firing coaxial 1-inch compression driver, delivering a 52 Hz 20 kHz frequency range. The DM8S is surface-mounted and locks onto a hidden QuickHold U-bracket for fast, secure installation.

Features:

• Combine DesignMax models to complete any design, big or small 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options

• Deliver rich lows and clear, intelligible highs with coaxial two-way drivers no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

• Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

• Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage

• Install easily with industry-standard accessories all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

• Deliver high SPL for clear foreground music

Applications

Performing arts venues
Places of worship
Conference centers
Retail stores
Restaurants and bars
Hospitality venues

Specifications:

Frequency Response (+/-3 dB)
60 - 20,000 Hz

Nominal coverage (H x V)
130° conical

Power Handling, peak
600 W

Maximum SPL @ 1m
115 dB

Frequency Range (-10 dB)
52 - 20,000 Hz

Power Handling, long-term continuous
150 W

Sensitivity (SPL/1W @ 1 m)
93 dB

Nominal Impedance
8 (transformer bypass)
