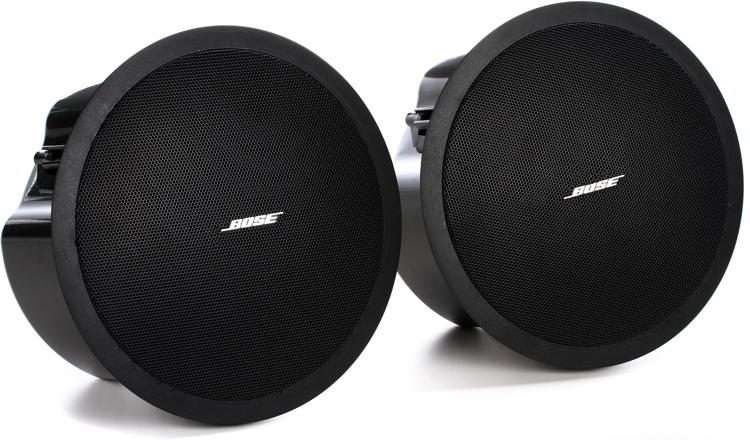

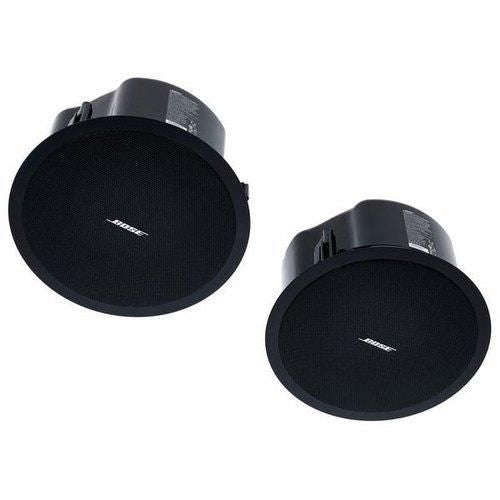

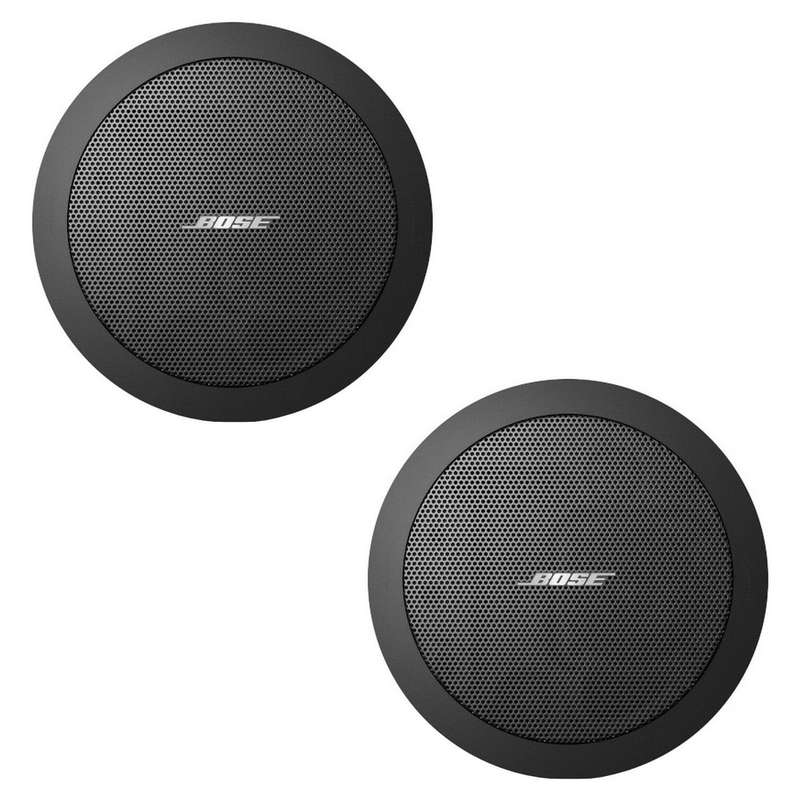

BOSE Professional FreeSpace FS4CE In-Ceiling loudspeaker - Pair - Black

BOSE Professional FreeSpace FS4CE In-Ceiling loudspeaker - Pair - Black

 The Bose Professional sound quality you expect. The improvements you need. FreeSpace FS loudspeakers are the next step of our widely trusted line of in-ceiling and surface-mount loudspeakers, offering significant upgrades in durability, design, and ease of installation all with remarkably consistent tonality. Engineered for high-quality performance in both background music and voice announcement applications, FS loudspeakers are ideal for almost any commercial space. The line includes five loudspeakers, two distinct levels of sound, new mounting options, and a modern aesthetic to match. For those seeking consistent, quality installed sound, FreeSpace FS loudspeakers are the perfect mix of performance and value.

Features:

Full-range 4.5-inch transducer, low-frequency range down to 70 Hz, 8-ohm and 70/100V operation

Front baffle-mounted tap settings and front-baffle audio connections

Handles the weather, designed for outdoor wet installation

Maintain consistent tonal quality with shared voicing across all FS models

Hear the best of both music and voice with transducers that offer clear voice reproduction and smooth response for background music

Blend with more room designs with updated enclosures available in black and white that pair modern aesthetics with practical features, including removable logos

Tackle site-specific challenges with the support of a full suite of accessories, designed to handle a wide range of applications and mounting options

Install with ease all models feature Euroblock inputs and front-baffle input location on in-ceiling models

Support public safety all models are UL 1480 ULC-S541-listed for use in fire alarm and signaling systems in life safety applications

Specifications:

Speaker
Active/Passive
Passive
Number of Included Speakers
1
Speaker Configuration
Full-Range
Power Handling
50 W RMS
200 W Peak
Constant Voltage / Transformer Taps
70 V:
2.5 / 5 / 10 / 20 / 40 W or 8 Ohms Bypass
100 V:
5 / 10 / 20 / 40 W or 8 Ohms Bypass
Impedance
8 Ohms (Nominal, Transformer Bypassed)
Enclosure Type
Bass-Reflex
Shielded
No
Drivers
Full-Range Driver
1x 4.5" / 11.43 cm

Performance
Frequency Range
70 Hz to 17 kHz -10 dB
Frequency Response
80 Hz to 16 kHz 3 dB
Maximum SPL
105 dB SPL (Continuous)
111 dB SPL (Peak)
Sensitivity
88 dB SPL
Coverage Angle
115 (Conical)
Recommended High-Pass Filter
70 Hz, 24 dB/Octave

Connectivity
Inputs/Outputs
1x Block 6-Pin Speaker Input
Maximum Wire Gauge
14 AWG / 2.5 mm

Environmental
Environmental Protection
Dust/Water-Resistant (IP55)
Operating Temperature
-13 to 158F / -25 to 70C

Physical
Color
White
Cutout Size
9.8 x 9.8" / 24.9 x 24.9 cm
Mount Surface Thickness
Up to 1.5" / 3.8 cm
Construction Material
Metal Grille, Plastic, Steel

Dimensions
10.7 x 6.8" / 27.2 x 17.3 cm
Weight
7.6 lb / 3.4 kg

Packaging Info
Package Weight
20.37 lb
Box Dimensions (LxWxH)
28.5 x 17.2 x 10.6"
