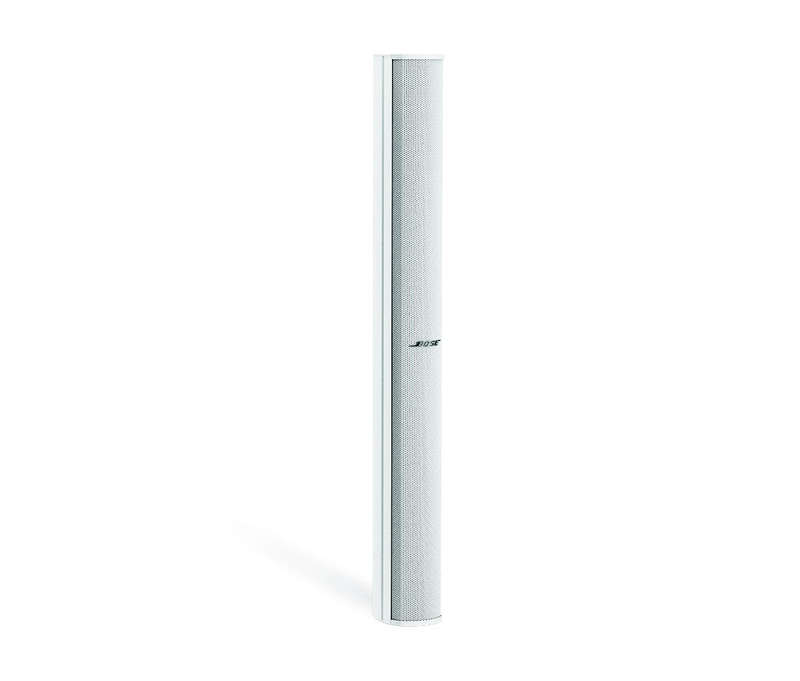

BOSE Professional Panaray MA12EX modular column array loudspeaker - Each - White

BOSE Professional Panaray MA12EX modular column array loudspeaker - Each - White

The Bose Professional Panaray MA12EX extended range indoor/outdoor column array is designed to provide outstanding vocal intelligibility in acoustically demanding spaces with wider 160° horizontal coverage. It has weather-resistant components that allow use in outdoor applications. The slim column enclosure blends with almost any décor.

Features:

• Twelve 2.25" (64 mm) full-range drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control

• Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves "throw" distance and reduces unwanted floor/ceiling reflections

• Articulated Array® design provides wide 160° horizontal coverage with 20° nominal vertical coverage for a single module. Actual vertical coverage varies with number of modules in line array configuration

• Frequency range down to 58 Hz allows full-range speech and light music reinforcement without separate low-frequency loudspeakers. For extended bass and higher output levels, use with Bose Professional MB4, MB12, or MB24 modular bass loudspeakers

• Optional brackets allow easy installation of single-, double- or triple-stack line array modules

Applications

Houses of worship
Multi-purpose spaces
Recreation
Restaurants and bars
Auditoriums
Transportation facilities
Gymnasiums
Atriums and malls

Specifications:

Frequency Response (+/-3 dB)
75 Hz - 13 kHz

Frequency Range (-10 dB)
58 Hz - 16 kHz

Nominal Dispersion
160° H x 20° V

Long-Term Power Handling
150 W (600 W peak)

Sensitivity (SPL / 1 W @ 1 m)
87 dB SPL

Maximum SPL @ 1 m
112dB SPL (118 dB SPL peak)

Nominal Impedance
8
