Get even better sound using the Boss Audio BX35 3-Way Electronic Crossover. Speakers reproduce sound based on high, low, or mid-range frequencies. This process is called the crossover effect and occurs because the vast majority of audio systems cannot cover the entire spectrum sufficiently to minimize sound distortion and maintain an appropriate frequency ratio. A lot of amplifiers have either a built-in variable crossover so that you can set the frequency at exact sound specifications or a fixed crossover. By connecting the BX35 to your amplifier, you will have total control you exactly how you want your bass to sound as well as your mid-level and high-level frequencies, giving you a pristine listening experience.
Features

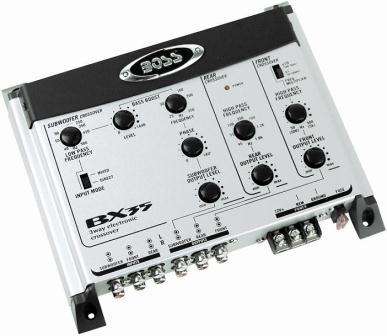

-Boss Audio BX35 3-Way Electronic Crossover
-Front, rear and subwoofer inputs and outputs
-Independent gain controls for each channel
-Dual input selector
-Bass boost on/off switch with frequency selector: 40Hz, 80Hz or 120Hz
-Frequency multiplier (x1 or x5) on high pass output
-Slope Rate: 12 dB/octave
-Signal-To-Noise ratio: >90 dB
-Remote On/Off power control
-LED power indicator
-Subwoofer phase and stereo/mono switches
-Three-way electronic crossover
-Gold plated RAC and power connectors
-Remote On/Off power control
-LED power indicator
-Switching power supply
-Low noise high slew rate audio grade Op Amps
-Fully adjustable low and high pass output levels
-Phase reverse volume and low pass
-Indefinitely variable low pass crossover
-Indefinitely high pass crossover
-Frequency multiplier switch on front high pass crossover
-Low pass stereo channel selector for Mixed or Direct low pass inputs
-Bass boost volume with variable frequency volume
Specifications
-Input impedance: Front and rear: 39k-Ohm Low pass: 10k-Ohm
-Maximum input level: 4.5V RMS
-Maximum output level: 9V RMS
-High pass crossover, 12 dB/Octave: Front 50Hz-5kHz Rear 45Hz-1.6kHz
-Low pass crossover, 12 dB/Octave: 40Hz-500Hz
-Low boost: 0 to +18 dB
-Gain structure: Variable 0 to +6 dB
-Frequency response, low pass: 5Hz-500Hz, -3 dB
-Frequency response, low pass: Front 50Hz-50kHz, -3 dB Rear 45Hz-50kHz, -3 dB
-Signal to noise ratio: >95 dB
-THD: < 0.01%
-Dimensions: 8-1/4 W x 6-1/2 L x 1-1/2 H (222mm x 156mm x 38mm)
What's in the box
1x Boss Audio BX35 3-Way Electronic Crossover
