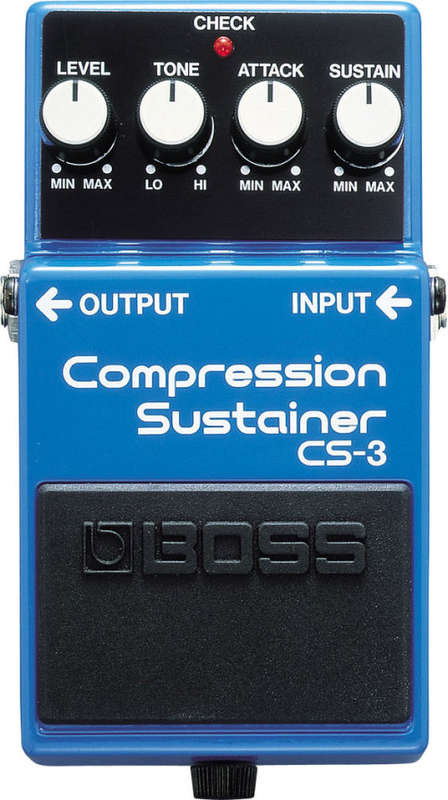

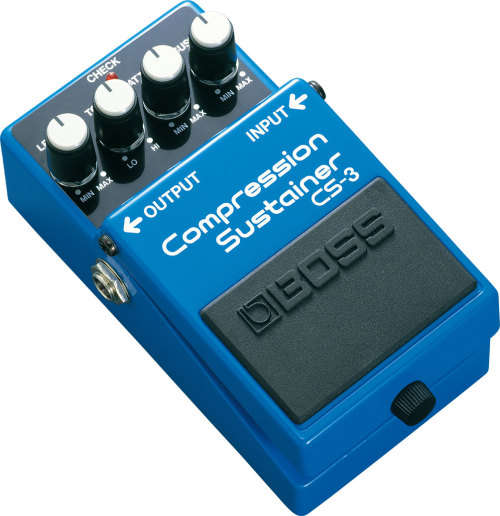

BOSS CS-3 CLASSIC COMPRESSION SUSTAINER

Compact compression/sustainer pedal with high-quality circuitry
Compresses loud signals and boosts softer signals for a smooth overall sound
Onboard Level, Tone, Attack and Sustain controls for precise tonal shaping
Low-noise design for super-quiet operation
BOSS five-year warranty

Specifications
Nominal Input Level
-20 dBu
Input Impedance
1 M ohm
Nominal Output Level
-20 dBu
Output Impedance
1 k ohm
Recommended Load Impedance
10 k ohms or greater
Bypass
Buffered bypass
Controls
SUSTAIN knob
ATTACK knob
TONE knob
LEVEL knob
Pedal switch
Indicator
CHECK indicator (Serves also as battery check indicator)
Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack
Power Supply
Carbon-zinc battery (9V, 6F22) or Alkaline battery (9V, 6LR61)
AC adaptor (PSA series: sold separately)
Current Draw
20 mA
Expected battery life under continuous use
Carbon: Approx. 10.5 hours
Alkaline: Approx. 26 hours
*These figures will vary depending on the actual conditions of use.
Accessories
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Dry battery/9 V type (6F22)
Options (sold separately)
AC adaptor: PSA series
Size and Weight
Width
73 mm
Depth
129 mm
Height
59 mm
Weight
380 g
