PRODUCT FEATURES.
Studio-level sound with class-leading 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate
12 versatile delay modes from vintage to modern deliver unlimited creative possibilities
Unrivaled real-time expression with customizable control settings for onboard and external switches
Graphic LCD for easy, intuitive operation while performing and editing
Onboard patch memories and hands-on controls
Equipped with a built-in Phrase Looper, MIDI, USB, and more
Selectable buffered-bypass or true-bypass operation
Runs on four AA-size batteries or PSA-series AC adapter
Dedicated editor software available
DD-500 Version 2 Software Newly Added Features
Improved A/B Simul mode with more flexible control and input/output options
Five newly added effects, including vintage Binson Echorec 2, touch-responsive filter delay, and more
Additional detailed tone-editing parameters such as feedback damp and modulation mode
More flexible routing options with the new Insert Loop function, selectable EQ insertion position, expanded independent delay connection modes, and more
Enhanced effects with extended parameters and sound quality refinements, including stereo pitch shifters and overtone effects for Shimmer mode, effect targets for Slow Attack mode, and more
*For complete DD-500 Version 2 software details, please refer to the supplementary manual available in the Support section.
Specifications
Sampling Frequency
96 kHz
AD/DA Conversion
32 bits
Processing
32-bit floating point
Delay Modes
12 modes
STANDARD
ANALOG
TAPE
VINTAGE DIGITAL
DUAL
PATTERN
REVERSE
TERA ECHO
SLOW ATTACK
FILTER
SHIMMER
SFX
Maximum delay time
10 sec.(depends on delay mode)
Phrase loop
60 sec. (96 kHz/MONO, 48 kHz/STEREO)
120 sec. (48 kHz/MONO)
Delay can be applied.
Patches
198 (99 banks x 2 [A] [B]), 297 (99 banks x 3 [A] [B] [C])
Pedals
Foot switch x 3 [A][B][TAP/CTL]

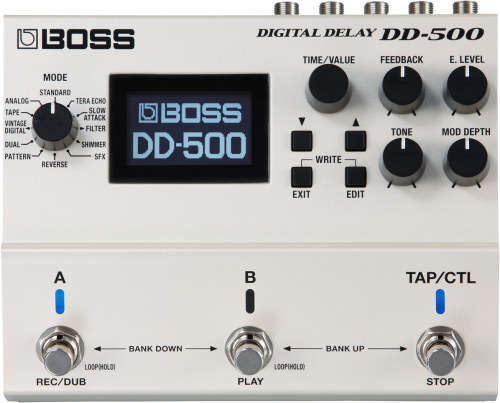

Knobs
MODE
TIME/VALUE
FEEDBACK
E.LEVEL
TONE
MOD DEPTH
Display
Graphic LCD (128 x 64 dots, backlit LCD) x 1
Nominal Input Level
INPUT A/MONO, B: -10 dBu
Maximum Input Level
INPUT A/MONO, B: +8 dBu
Input Impedance
INPUT A/MONO, B: 1 M ohm
Nominal Output Level
OUTPUT A/MONO, B: -10 dBu
Maximum Output Level
OUTPUT A/MONO, B: +8 dBu
Output Impedance
OUTPUT A/MONO, B: 2 k ohms
Recommended Load Impedance
OUTPUT A/MONO, B: 20 k ohms or greater
Bypass
Buffered bypass or True bypass (with relays)

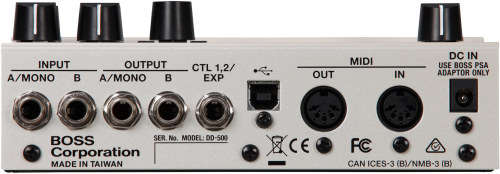

Connectors
INPUT A/MONO, B jacks: 1/4-inch phone type
OUTPUT A/MONO, B jacks: 1/4-inch phone type
CTL 1,2/EXP jack: 1/4-inch TRS phone type
USB COMPUTER port: USB type B USB-MIDI
MIDI (IN, OUT) connectors
DC IN jack
Power Supply
Alkaline battery (AA, LR6) x 4
AC adaptor
Current Draw
200 mA
Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)
Alkaline: Approx. 7 hours
Accessories
Owner's manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 4
Options (sold separately)
AC adaptor: PSA series
Footswitch: BOSS FS-5U, FS-5L
Dual Footswitch: BOSS FS-6, FS-7
Expression Pedal: BOSS FV-500H, FV-500L, Roland EV-5
Size and Weight
Width
170 mm
6-3/4 inches
Depth
138 mm
5-7/16 inches
Height
62 mm
2-1/2 inches
Weight (including battery)
1.0 kg
2 lbs 4 oz.
