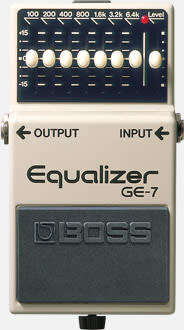

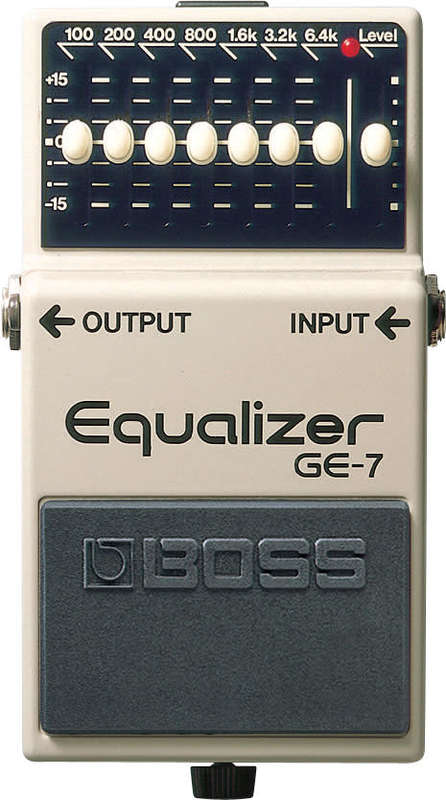

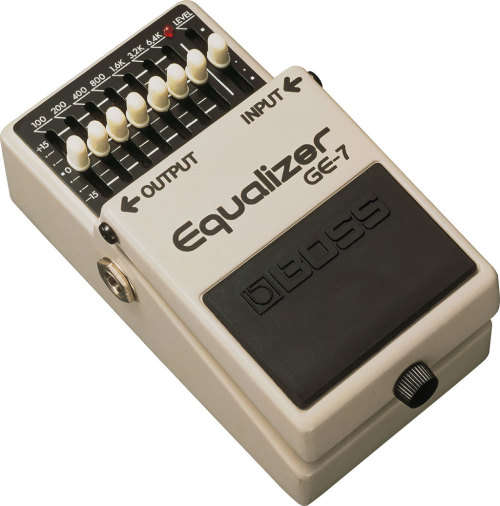

BOSS GE-7 7-BAND GRAPHIC EQUALIZER

Compact EQ pedal with 7 bands of adjustable EQ sliders
Allows for boost/cut of up to +/- 15dB per band
Perfect as a "boost" pedal for solos, creating an alternate sound, or for eliminating feedback

Specifications
Nominal Input Level
-20 dBu
Input Impedance
1 M ohm
Nominal Output Level
-20 dBu
Output Impedance
1 k ohm
Recommended Load Impedance
10 k ohm or greater
Bypass
Buffered bypass
Controls
Level Control knob
Equalizer Control knob
100, 200, 400, 800, 1.6 k, 3.2 k, 6.4 kHz
Pedal switch
Indicator
CHECK indicator (Serves also as battery check indicator)
Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack
Power Supply
Carbon-zinc battery (9 V, 6F22)
Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)
Current Draw
30 mA
Expected battery life under continuous use
Carbon: Approx. 9 hours
Alkaline: Approx. 19.5 hours
*These figures will vary depending on the actual conditions of use.
Accessories
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22)
Options (sold separately)
AC adaptor: PSA series
Size and Weight
Width
73 mm
Depth
129 mm
Height
59 mm
Weight (including battery)
400 g
