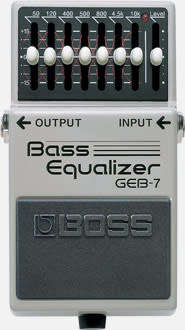

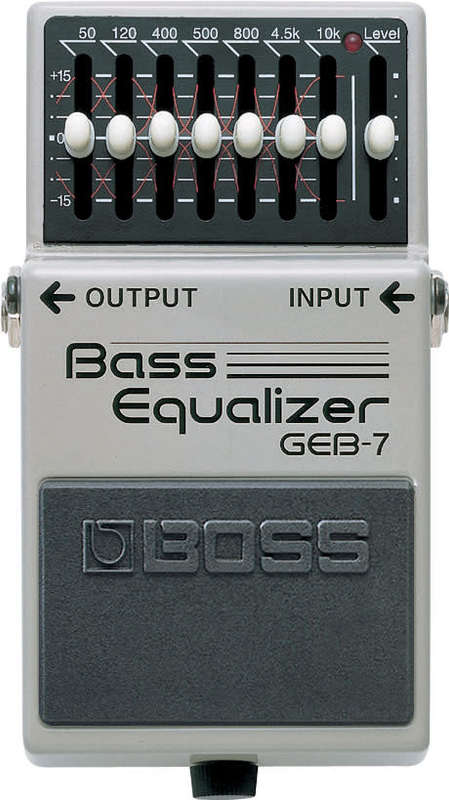

BOSS GEB-7 7-BAND BASS EQUALIZER

50Hz to 10kHz frequency range specifically designed for bass
Full range response, even for five- and six-string basses
Can be used as a "boost" or "cut" pedal using the level control knob
Great for eletric-acoustic bass applications
AC adaptor or 9V battery operation
BOSS five-year warranty

Specifications
Nominal Input Level
-20 dBu
Input Impedance
1 M ohm
Nominal Output Level
-20 dBu
Output Impedance
1 k ohm
Recommended Load Impedance
10 k ohm or greater
Bypass
Buffered bypass
Controls
Level Control knob
Equalizer Control knob
50, 120, 400, 500, 800, 4.5 k, 10 kHz
Pedal switch
Indicator
CHECK indicator (Serves also as battery check indicator)
Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack
Power Supply
Carbon-zinc battery (9 V, 6F22)
Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)
Current Draw
30 mA
Expected battery life under continuous use
Carbon: Approx. 8.5 hours
Alkaline: Approx. 18.5 hours
*These figures will vary depending on the actual conditions of use.
Accessories
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22)
Options (sold separately)
AC adaptor: PSA series
Size and Weight
Width
73 mm
2-7/8 inches
Depth
129 mm
5-1/8 inches
Height
59 mm
2-3/8 inches
Weight (including battery)
400 g
15 oz
