Standard Features
The complete internal tone processing of the GT-1000 in a compact and portable stompbox
Unlimited sound creation with 24 simultaneous effects blocksincluding two different ampsand numerous series/parallel routing options
Unmatched sound quality with 32-bit AD/DA, 32-bit floating-point processing, and 96 kHz sampling rate
AIRD (Augmented Impulse Response Dynamics) technology delivers natural feel and optimized integration with all types of external devices
Includes classic BOSS effects, vintage stomps, MDP effects, and algorithms directly ported from the DD-500, MD-500, and RV-500 pedals
Ultra-fast patch switching and delay carryover
Innovative Stompbox feature simplifies using common effects settings in many different patches
Looper for practicing, developing ideas, and enhancing live performances
High-resolution tuner with mono and polyphonic displays
Two send/return loops for external effects, four-cable method, or separate direct outputs
16 locations for loading WAV-format speaker impulse responses
Supports external control via footswitches, expression pedals, USB, and TRS MIDI
Control out function for switching amp channels

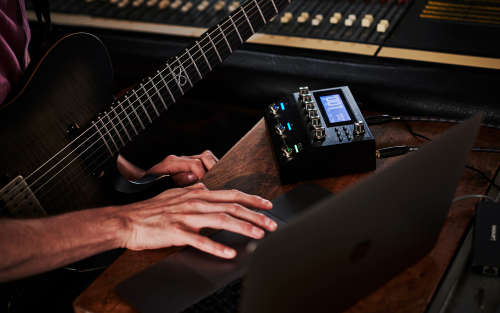

USB audio/MIDI interface for computer-based recording and editing
Specifications
Sampling Frequency
96 kHz
AD/DA conversion
32 bits
Processing
32-bit floating point
Memory
250 (User) + 250 (Preset)
Phrase loop
38 sec. (MONO)
19 sec. (STEREO)
Tuner internal detection
+/- 0.1 cent
Normal input level
INPUT L/MONO, R: -10 dBu
RETURN 1, RETURN 2: -10 dBu
Maximum input level
INPUT L/MONO, R: +12 dBu
RETURN 1, RETURN 2: +12 dBu
Input impedance
INPUT L/MONO, R: 2 M ohms
RETURN 1, RETURN 2: 1 M ohm
Normal output level
OUTPUT L/PHONES, R/MONO: -10 dBu
SEND 1, SEND 2: -10 dBu
Maximum output level
OUTPUT L/PHONES, R/MONO: +12 dBu
SEND 1, SEND 2: +12 dBu
Output impedance
OUTPUT L/PHONES, R/MONO: 44 ohms
SEND 1, SEND 2: 1 k ohm
Recommended load impedance
OUTPUT L/PHONES, R/MONO: 10 k ohms or greater (Phones: 44 ohms or greater)
SEND 1, SEND 2: 10 k ohms or greater

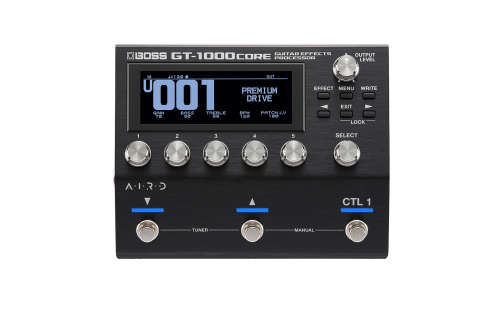

Controls
DOWN switch, UP switch, CTL 1 switch
EFFECT button, MENU button, EXIT button, WRITE button, PAGE button
1-5 knobs, SELECT knob, OUTPUT LEVEL knob

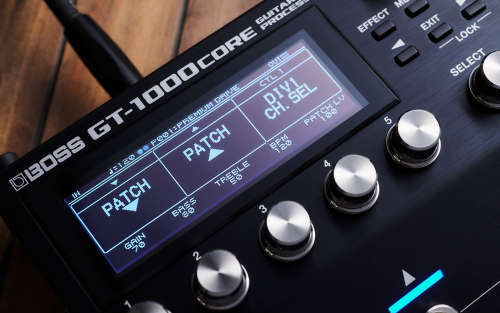

Display
Graphic LCD 256 x 80 dots
Indicators
UP indicator, DOWN indicator, CTL 1 indicator

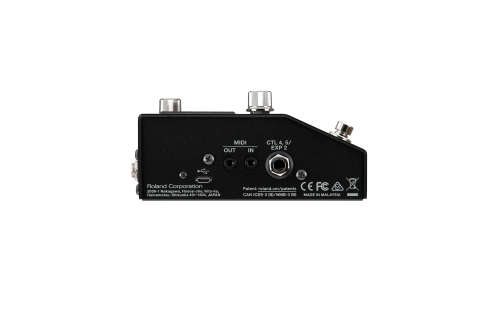

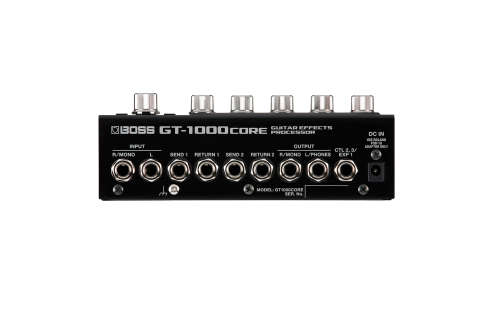

Connectors
INPUT (L/MONO, R), OUTPUT (R/MONO) jacks: 1/4-inch phone type
OUTPUT (L/PHONES) jack: 1/4-inch TRS phone type
CTL 2, 3/EXP 1?CTL 4, 5/EXP 2 jacks: 1/4-inch TRS phone type
MIDI (IN, OUT) connectors: Stereo miniature phone type
USB COMPUTER port: USB Micro-B type
DC IN jack
Power supply
AC adaptor
Current draw
670 mA
Accessories
AC adaptor
Owner's manual
Leaflet "USING THE UNIT SAFELY"
Rubber foot x 4
Options (sold separately)
Footswitch: FS-5U
Dual footswitch: : FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
Size and Weight
Width
173 mm
6-13/16 inches
Depth
135 mm
5-3/8 inches
Height (including rubber foot)
65 mm
2-9/16 inches
Weight
920 g
2 lbs 1 oz
