Description

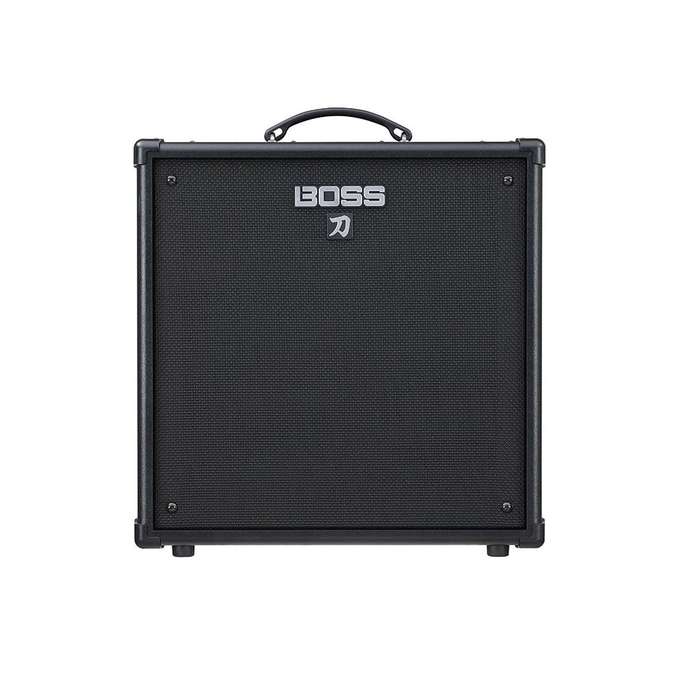

Three unique amp characters and onboard BOSS effects provide a wide range of tones, backed by a stage-ready, 60-watt class AB power amp, custom 10-inch woofer, and tweeter with on/off switch. And with comprehensive EQ, flexible connectivity, and more, the Katana-110 Bass is ready to take on any playing situation, from stage to studio to everyday practice at home.
- Versatile combo bass amp with stage-ready sound and advanced features
- 60-watt class AB power amp delivers big, punchy tone
- Rock-solid combo cabinet with custom 10-inch woofer and high-frequency tweeter with on/off switch
- Three selectable amp voicings cover a wide range of styles
- Shape switch with three tone characters: mid scoop, bright, and extended range
- Four independent effect sections: compressor, drive, and FX1/FX2 with a vast range of selectable effects
- Comprehensive four-band EQ with selectable low and high-mid frequency controls
- Studio-inspired Blend section enables you to mix in the dry sound for enhanced fatness and clarity
- Six memories for storing and recalling favorite sound setups
- Power Control realizes cranked-amp volume in any playing situation
- Adjust preamp and effect settings, organize sounds, and more with the dedicated BOSS Tone Studio editor for macOS and Windows
- USB and phones/recording outputs with mic'd cabinet emulation
- Balanced XLR direct output with selectable direct, pre, or post signal
- Optional GA-FC footswitch for deep performance control
- Edit sounds from a smartphone with the optional BOSS Bluetooth® Audio MIDI Dual Adaptor
Specifications
SPECIFICATIONSRated Power Output60 WNominal Input LevelINPUT: -10 dBu (1 M ohm)
POWER AMP IN: -10 dBu (20 k ohms)
AUX IN: -10 dBu (20 k ohms)
RETURN IN: -10 dBu (100 k ohm)Speaker25 cm (10 inches) x 1
TWEETER: x 1ControlsPOWER switch
MASTER VOLUME knob
POWER CONTROL switch (STANDBY, 1 W, MAX)
TWEETER button
[INPUT EFX]
COMP button
DRIVE button
COMP knob
DRIVE knob
[AMPLIFIER]
PAD button
SHAPE button
TYPE knob (VINTAGE, FLAT, MODERN)
GAIN knob
VOLUME knob
[BLEND]
BLEND button
DRY LEVEL knob
[EQUALIZER]
LOW MID button
HIGH MID button
BASS knob
LOW MID knob
HIGH MID knob
TREBLE knob
[EFFECTS]
FX1 button
FX2 button
TAP button
FX1 knob
FX2 knob
[TONE SETTING]
CH1 button
CH2 button
CH3 button
PANEL button
[BALANCED OUT]
GND LIFT switch (OFF, ON)
SELECT (POST, PRE, DIRECT)IndicatorsCOMP
DRIVE
PAD
SHAPE
BLEND
LOW MID
HIGH MID
FX1
FX2
TAP
CH1
CH2
CH3
PANEL
TWEETERConnectorsINPUT jack: 1/4-inch phone type
POWER AMP IN jack: 1/4-inch phone type
BALANCED OUT jack: 1/4-inch phone type
SEND jack: 1/4-inch phone type
RETURN jack: 1/4-inch phone type
SPEAKER OUT 4 ohms jack: 1/4-inch phone type
REC OUT/PHONES jack: Stereo 1/4-inch phone type
EXP PEDAL/CTL CH1/CH2 jack: 1/4-inch TRS phone type
GA-FC jack: 1/4-inch TRS phone type
AUX IN jack: Stereo miniature phone type
USB port: USB B type
BLUETOOTH ADAPTOR SLOT: Bluetooth Audio MIDI Dual Adaptor
AC IN jackPower Consumption77 WAccessories/Owner's manual
Power cord
GA-FC stickerOptions (sold separately)Footswitch: BOSS FS-5L, BOSS FS-6, BOSS FS-7
Expression pedal: Roland EV-5, BOSS EV-30, BOSS FV-500L, BOSS FV-500H
GA FOOT CONTROLLER (GA-FC)
Bluetooth Audio MIDI Dual Adaptor (Model BT-DUAL)SIZE AND WEIGHTWidth470 mm
18-9/16 inchesDepth300 mm
11-13/16 inchesHeight500 mm
19-11/16 inchesWeight16.8 kg
37 lbs 0.6 oz
