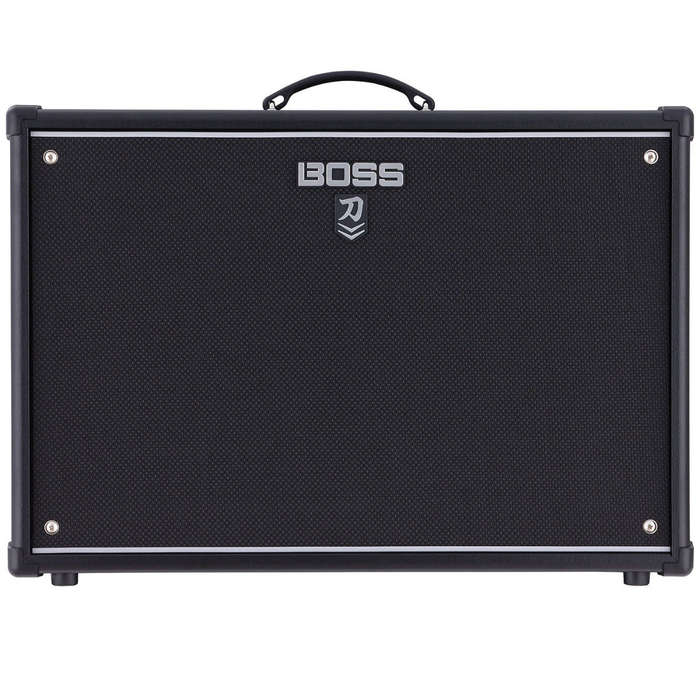

KATANA-100/212 MkII
THE EVOLUTION OF A MODERN CLASSIC
Katana MkII takes the acclaimed Katana guitar amp series to the next level, turbocharging the core platform with more sounds, more effects, and more features. Newly voiced variations are now available for all five amp characters, doubling the tonal options. And the onboard effects categories have been expanded from three to five, providing even more real-time processing to choose from. The usability has been ramped up too, with a power amp input for modelers and multi-FX, easy stereo expansion for dual amp setups, updated editor software, and many other enhancements.
Main Features
Stage-ready 100-watt combo amp with two custom 12-inch speakers
Tube Logic design approach produces class-defying power, authoritative punch, and cutting presence
Five unique amp characters (Clean, Crunch, Lead, Brown, and Acoustic), plus newly voiced variations for each
Five independent effects sections (Booster, Mod, FX, Delay, and Reverb), with three selectable variations in each
Dedicated Pedal FX for foot-controlled wah and pedal bend
Updated BOSS Tone Studio software for customizing your sound with over 60 different BOSS effects, channel and global EQs, adjustable routing, and much more
Power Amp In for preamps, modelers, and multi-effects
Stereo Expand out to link with a second Katana MkII (100-watt models only)
Eight Tone Setting memories for storing and recalling all amp and effect settings
Power Control for achieving cranked-amp tone and response at low volumes
Three Cab Resonance options (Vintage, Modern, and Deep), selectable from the panel or BOSS Tone Studio
Mic'd cabinet emulation on the line, USB, and phones/recording outputs, with three Air Feel settings available in BOSS Tone Studio
Optional GA-FC foot controller provides complete amp control, including Tone Setting selection, effects on/off,expression pedal control, and more
Connections for up to two footswitches or an expression pedal
Effect loop, with selectable series/parallel operation and adjustable level in BOSS Tone Studio
Pro setups available at BOSS Tone Central
SPECIFICATIONS
Rated Power Output : 100 W
Nominal Input Level : INPUT: -10 dBu (1 M ohm)
AUX IN: -10 dBu (20 k ohms)
RETURN IN: -10 dBu (100 k ohm)
Speaker : 30 cm (12 inches) x 2
Controls : POWER switch
MASTER knob
PRESENCE knob
POWER CONTROL switch (STANDBY, 0.5 W, 50 W, 100 W)
CAB RESONANCE switch (VINTAGEMODERNDEEP)
[AMPLIFIER]
VARIATION button
AMP TYPE knob (ACOUSTIC, CLEAN, CRUNCH, LEAD, BROWN)
GAIN knob
VOLUME knob
[EQUALIZER]
BASS knob
MIDDLE knob
TREBLE knob
[MULTI EFFECT]
BOOSTER button
MOD button
FX button
DELAY button
REVERB button
TAP button
BOOSTER knob
MOD knob
FX knob
DELAY knob
REVERB knob
[TONE SETTING]
CH1 button
CH2 button
CH3 button
CH4 button
PANEL button
[STEREO EXPAND]
STEREO EXPAND switch
Indicators : VARIATION
ACOUSTIC
CLEAN
CRUNCH
LEAD
BROWN
BOOSTER
MOD
FX
DELAY
REVERB
TAP
CH1
CH2
CH3
CH4
PANEL
Connectors : INPUT jack: 1/4-inch phone type
POWER AMP IN jack: 1/4-inch phone type
LINE OUT jack: 1/4-inch phone type
SEND jack: 1/4-inch phone type
RETURN jack: 1/4-inch phone type
REC OUT/PHONES jack: Stereo 1/4-inch phone type
EXP PEDAL/CTL CH1/CH2 jack: 1/4-inch TRS phone type
GA-FC jack: 1/4-inch TRS phone type
AUX IN jack: Stereo miniature phone type
USB port: USB B type
AC IN jack
Power Consumption : 77 W
Accessories : Owner's manual
Power cord
GA-FC sticker
Options (sold separately) : Footswitch: BOSS FS-5L, BOSS FS-6, BOSS FS-7
Expression pedal: Roland EV-5, BOSS EV-30, BOSS FV-500L, BOSS FV-500H
GA FOOT CONTROLLER (GA-FC)
SIZE AND WEIGHT
Width : 670 mm
26-7/16 inches
Depth : 248 mm
9-13/16 inches
Height : 484 mm
19-1/16 inches
Weight : 19.8 kg
43 lbs 11 oz
