BOSS OC-5 POLYPHONIC OCTAVE PEDAL FOR GUITAR AND BASS WITH `VINTAGE OC-2` MODE

Standard Features
The industry-standard octave pedal, updated with enhanced features
Newly developed tracking technology provides more accurate response and natural feel with no latency

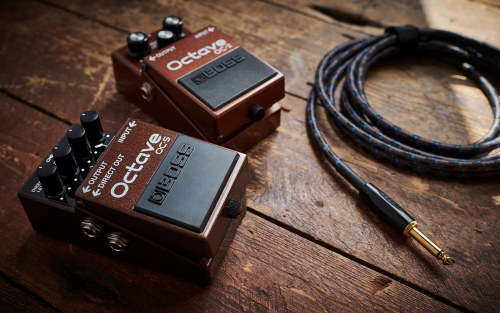

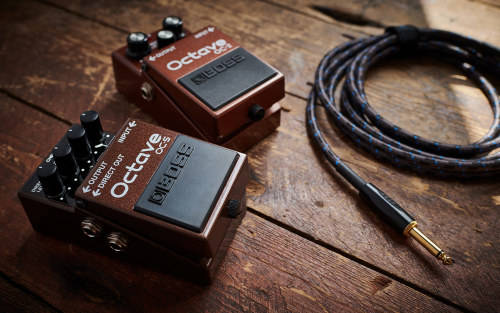

Vintage mode faithfully reproduces the mono sound of the original OC-2
Poly mode for chord playing; Range knob sets the note range where the effect is applied
Lowest Range setting in Poly mode applies the octave effect to only the lowest note in a chord
New octave-up effect, available on its own or blended with octave-down effects
Mode switch optimizes the tracking engine for guitar or bass
Direct out for wet/dry setups
BOSS five-year warranty

Specifications
Nominal Input Level
-20 dBu
Input Impedance
1 M ohm
Nominal Output Level
-20 dBu
Output Impedance
1 k ohm
Recommended Load Impedance
10 k ohms or greater
Bypass
Buffered bypass

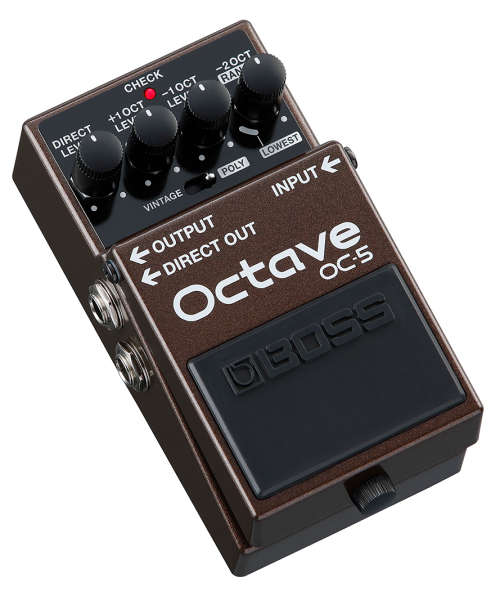

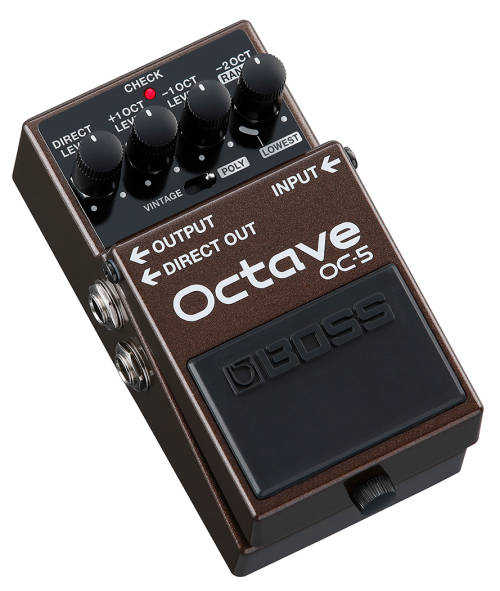

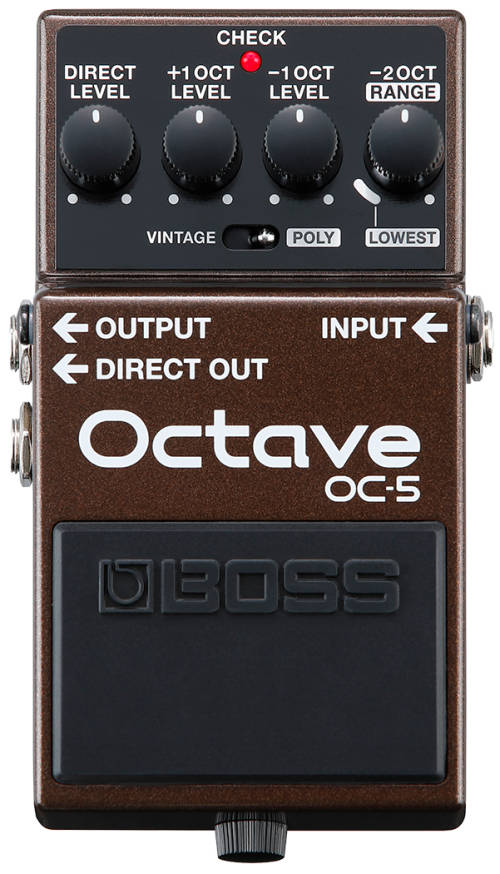

Controls
Pedal switch, GUITAR/BASS switch, VINTAGE/POLY switch, DIRECT LEVEL knob, +1OCT knob, -1OCT knob, -2OCT/RANGE knob
Indicator
CHECK indicator (Serves also as battery check indicator)
Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DIRECT OUT jack: 1/4-inch phone type

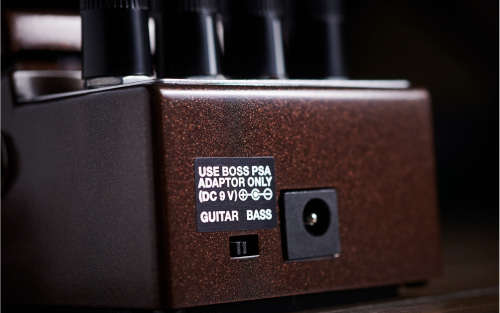

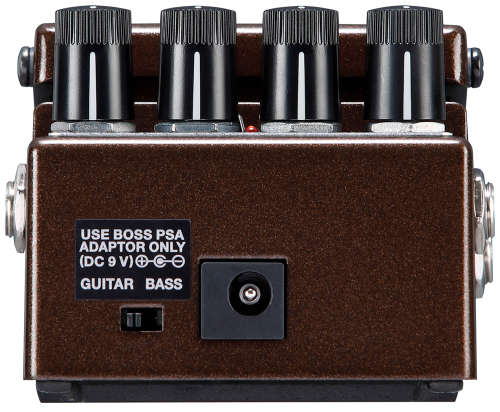

DC IN jack
Power Supply
Alkaline battery (9 V, 6LR61 or 6LF22)
AC adaptor (PSA series: sold separately)
Current Draw
60 mA
Expected battery life under continuous use
Alkaline: Approx. 5 hours
*These figures will vary depending on the actual conditions of use.
Accessories
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61)
Options (sold separately)
AC adaptor: PSA series
Size and Weight
Width
73 mm
2-7/8 inches
Depth
129 mm
5-1/8 inches
Height
59 mm
2-3/8 inches
Weight (including battery)
440 g
1 lb
