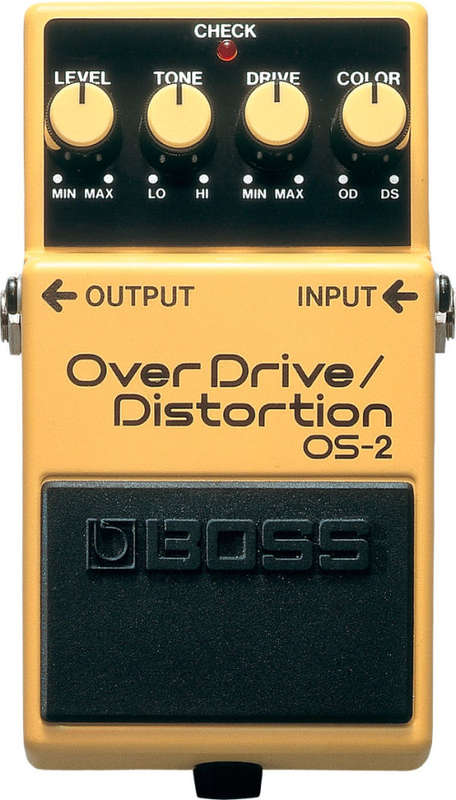

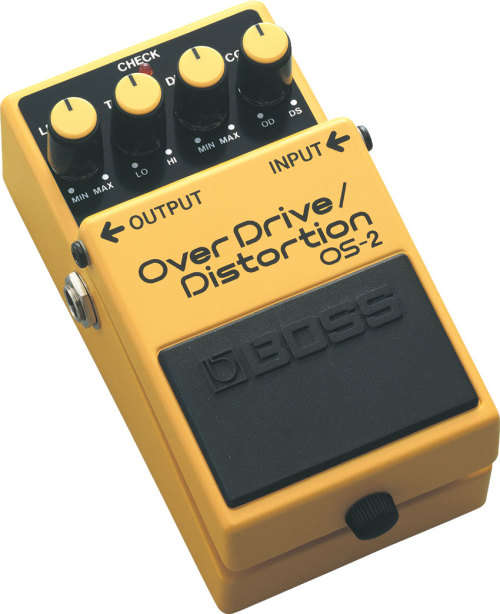

BOSS OS-2 OVERDRIVE/DISTORTION

Flexible distortion pedal capable of producing blended overdrive/distortion sounds
Provides both "over-the-top" distortion sounds and less extreme overdrive tones for rhythm playing
Includes Level, Tone, Drive and Color controls for precise tonal shaping
BOSS five-year warranty

Nominal Input Level
-20 dBu
Input Impedance
1 M ohm
Nominal Output Level
-20 dBu
Output Impedance
1 k ohm
Recommended Load Impedance
10 k ohms or greater
Bypass
Buffered bypass
Controls
COLOR knob
DRIVE knob
TONE knob
LEVEL knob
Pedal switch
Indicator
CHECK indicator (Used for indication of check battery)
Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack
Power Supply
Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)
Current Draw
12 mA
Expected battery life under continuous use
Carbon: Approx. 33.5 hours
Alkaline: Approx. 55 hours
*These figures will vary depending on the actual conditions of use.
Accessories
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22)
Options (sold separately)
AC adaptor: PSA series
Size and Weight
Width
73 mm
2-7/8 inches
Depth
129 mm
5-1/8 inches
Height
59 mm
2-3/8 inches
Weight (including battery)
385 g
14 oz
