BOSS RC-5 COMPACT LOOP STATION WITH 32 BIT PROCESSOR, ON BOARD EFFECTS, DRUMS & PATTERNS

Standard Features
    Advanced BOSS looping features in a compact footprint
    Class-leading sound quality with 32-bit AD/DA and 32-bit floating-point processing
    Stereo looper engine with 13 hours of recording time
    LCD with multi-color backlight for viewing loop status and editing parameters
    Reverse function for infusing loops with interesting textures
    Seven different drum kits and 57 preset rhythms with A/B variations
    Support for expanded control via external footswitches, an expression pedal, or MIDI
    Full MIDI I/O provided with space-saving mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
    Onboard storage for 99 phrase memories
    Back up and load WAV loops via USB

Specifications
Sampling Frequency
    44.1 kHz
AD/DA Conversion
    32 bits
Processing
    32-bit floating point
Recording/Playback
    Number of Track: 1
    Data Format: WAV (44.1 kHz, 32-bit float, stereo)
    Maximum Recording Time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories)
Rhythm Type
    57 Patterns x 2 Variations
Rhythm Kit
    7 types
Effect
    Reverb (only for rhythm part)
Memory
    99
Nominal Input Level
    INPUT A/MONO, B: -20 dBu
Input Impedance
    INPUT A/MONO, B: 1 M ohm
Nominal Output Level
    OUTPUT A/MONO, B:-20 dBu
Output Impedance
    OUTPUT A/MONO, B: 1 k ohm
Recommended Load Impedance
    OUTPUT A/MONO, B: 10 k ohms or greater
Bypass
    Buffered bypass

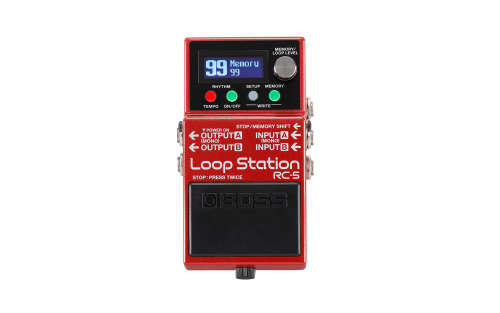

Controls
    MEMORY/LOOP LEVEL knob, MEMORY button, SETUP button, RHYTHM ON/OFF button, RHYTHM TEMPO button, Pedal switch
Display
    Graphic LCD (96 x 32 dots, RGB backlit LCD)

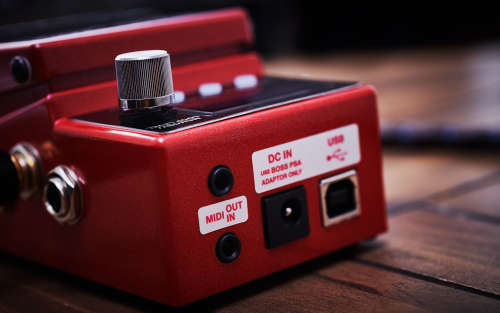

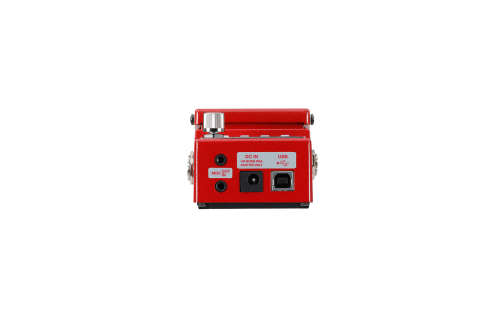

Connectors
    INPUT A/MONO, B jacks: 1/4-inch phone type
    OUTPUT A/MONO, B jacks: 1/4-inch phone type
    STOP/MEMORY jack: 1/4-inch TRS phone type
    USB port: USB B type
    MIDI (IN, OUT) jacks: stereo miniature type
    DC IN jack
Power Supply
    Alkaline battery (9 V, 6LR61 or 6LF22)
    AC adaptor (PSA series: sold separately)
Current Draw
    170 mA
Expected battery life under continuous use
    Alkaline: Approx. 2 hours
    *These figures will vary depending on the actual conditions of use.
Accessories
    Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
    Alkaline battery (9 V, 6LR61 or 6LF22)
Options (sold separately)
    AC adaptor: PSA-S series
    Footswitch: FS-5U
    Dual Footswitch: FS-6, FS-7
    Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5
    TRS/MIDI connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
Size and Weight
Width
    73 mm
    2-7/8 inches
Depth
    129 mm
    5-1/8 inches
Height
    56 mm
    2-1/4 inches
Weight (including battery)
    450 g
    1 lb
