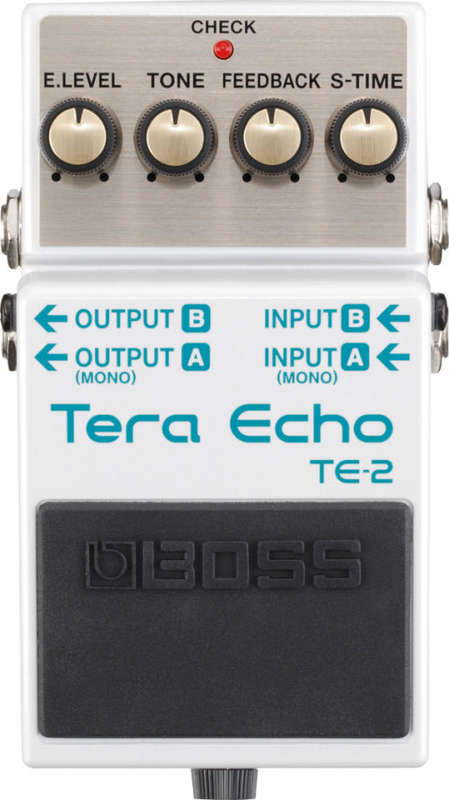

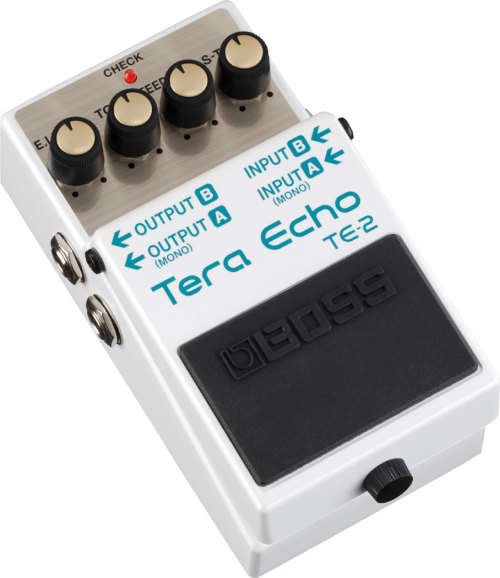

BOSS TE-2 UNIQUE DELAY EFFECT WITH MDP TECHNOLOGY

Next-generation BOSS compact pedal with innovative Multi-Dimensional Processing, realized with proprietary technology and custom DSP
Rich, spacious echo and ambience effects
Dramatically enhances the direct tone, but never overwhelms it
Freeze function holds the ambient sound for lead backing and sound effects
Ultra-responsive to volume changes and playing dynamics
Wide range of sound adjustment with simple controls
Mono/stereo input and output
BOSS five-year warranty

Nominal Input Level
-20 dBu
Input Impedance
1 M ohm
Nominal Output Level
-20 dBu
Output Impedance
1 k ohm
Recommended Load Impedance
10 k ohms or greater
Controls
Pedal switch
E. LEVEL knob
TONE knob
FEEDBACK knob
S-TIME (Spread Time) knob
Indicator
CHECK indicator (Used for indication of HOLD, and to check battery)
Connectors
INPUT-A (MONO) jack
INPUT-B jack
OUTPUT-A (MONO) jack
OUTPUT-B jack
AC adaptor jack (DC 9 V)
Power Supply
Alkaline battery (9V, 6LR61)
AC adaptor (sold separately)
Current Draw
90 mA
Expected battery life under continuous use
Alkaline:Approx. 3.5 hours
*These figures will vary depending on the actual conditions of use.
Accessories
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
Alkaline battery (9V, 6LR61)
Option (sold separately)
AC adaptor (PSA series)
Size and Weight (including battery )
Width
73 mm
2-7/8 inches
Depth
129 mm
5-1/8 inches
Height
59 mm
2-3/8 inches
Weight
435 g
1 lb
