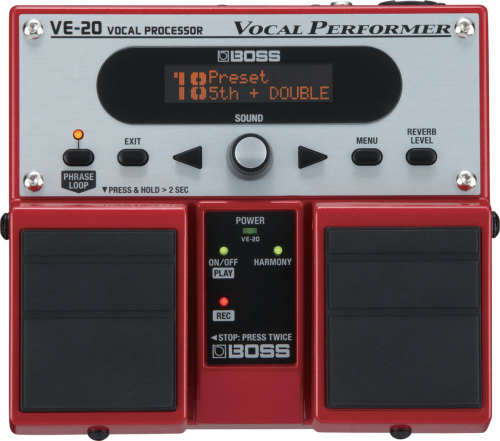

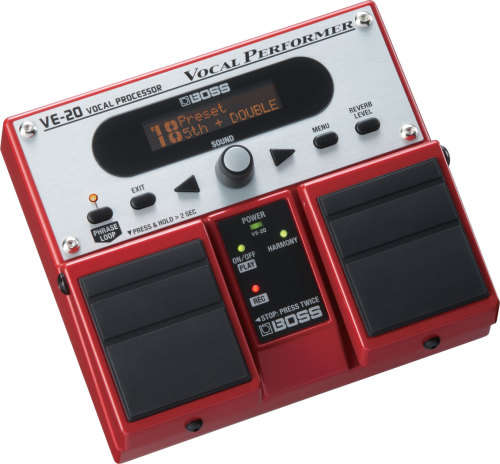

BOSS VE-20 VOICE EFFECTS PROCESSOR

Specialized effects for vocalists, including Harmony, Double-Track, Dynamics, Reverb, Delay, and more
    Create the total of 3-part harmonies and layers
    Realtime pitch-correction tools
    Special FX, including Distortion, Radio and Strobe
    Phrase Looper with 38 seconds (mono) of recording time
    Phantom power for condenser microphones
    Runs on six AA-batteries or AC adaptor (PSA)
    Easy operation, road-tough BOSS construction
Nominal Input Level
    INPUT: -40 dBu (Mic Sens = 40)
Input Impedance
    INPUT: 4 k ohms
Nominal Output Level
    OUTPUT: -40 dBu, PHONES/LINE: -25 dBu
Output Impedance
    OUTPUT: 600 ohms, PHONES/LINE: 66 ohms
Memory
    Sound: 30 (Preset) + 50 (User)
Phrase Loop
    Mono 38 sec.
Display
    16 characters, 2 lines (backlit LCD)

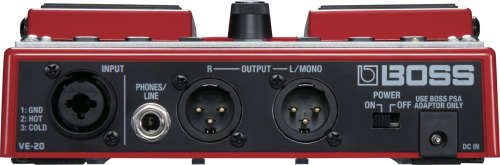

Connectors
    INPUT jack: XLR type (balanced, phantom power +48 V), 1/4 inch TRS phone type (balanced), OUTPUT jacks (L/MONO, R): XLR type, PHONES/LINE jack: Stereo 1/4 inch phone type, DC IN jack
Power Supply
    DC 9 V: Dry battery LR6/R6 (AA) type x 6, AC Adaptor (PSA series)
Current Draw
    190 mA (9 V max.)
    Expected battery life under continuous use: 2 hours (Carbon), 8 hours (Alkaline)
    * These figures will vary depending on the actual conditions of use.
Accessories
    Owners Manual, Leaflet (USING THE UNIT SAFELY, IMPORTANT NOTES, and Information), Dry battery LR6 (AA) type (alkaline) x 6
Option
    AC Adaptor (PSA series)
Size and Weight (including batteries)
Width
    173 mm
    6-13/16 inches
Depth
    158 mm
    6-1/4 inches
Height
    57 mm
    2-1/4 inches
Weight
    1.1 kg
    2 lbs. 7 oz.
