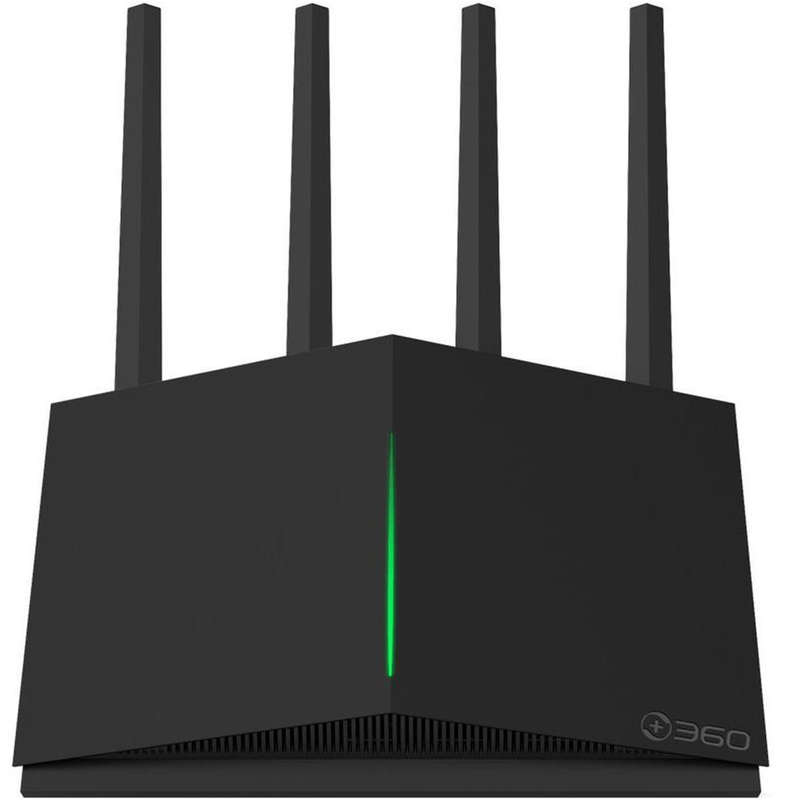

Botslab 360 R5 AC1200 Wireless Dual Band Fast Ethernet Router
The Botslab 360 R5 creates a reliable, blazing-fast network using powerful 802.11ac technology. Now you can enjoy streaming HD video and lag-free online gaming on the clear 5GHz band while using the 2.4GHz band for everyday tasks such as checking email and web browsing.
AC1200
Smart Management
4 High-performance antennas
Vertical structure for effective heat dissipation
Supports 802.11ac standard
Simultaneous 2.4GHz 300Mbps and 5GHz 867Mbps connections for 1167Mbps of total available bandwidth
Fast wired connections using our Fast Ethernet Ports
Supports MU-MIMO and beamforming for better user experience
AC1200 Dual-band Ethernet wireless network
Support both 2.4Ghz and 5Ghz bands with a wireless speed up to 1167Mbps, which is 3X faster than Wireless N.
2.4Ghz highlights high wall penetration performance and long transmission.
5Ghz highlights low interference and high speed, and all home devices can access the Internet smoothly.
Four external antennas easily cover large houses
Four external high-performance antennas provide stable and wide signal coverage. Wi-Fi signal strength is powerful everywhere.
Beamforming technology pushes strong signals in a centralized manner
Intelligently identify and locate long-distance network devices, directionally enhance Wi-Fi signals, and provide a great Internet experience even at long distances.
Leveraging the MU-MIMO technology to allow connection of multiple devices at the same time
Doubled quantity of data transmission channels providing a pleasant Wi-Fi experience when downloading, live broadcasting and gaming simultaneously.
Blind-mate network connectors support fast and easy configuration
Fast setup by inserting the cable, following the step-by-step guide and clicking Next as prompted, without differentiating the network connectors.
No need to differentiate between WAN and LAN ports
Various intelligent functions to master the home network
Provide intelligent functions such as parental control, guest network, and networked device management, so as to easily manage hone Wi-Fi network.

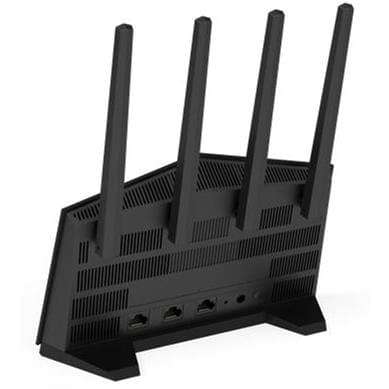

Vertical design, featuring both perfect appearance and function
The geometric shield shape naturally fits itself into the home environment. Vertical design, with high-density convection vents, ensures efficient heat dissipation and stable and smooth routing.
Specifications
CPU & Wireless : MT7628DA+MT7613B
Flash : 8MB
RAM : 64MB
PCB Layers : 2
Interface :
1 x 10/100Mbps WAN Port
2 x 10/100Mbps LAN Ports
Dimensions (WxDxH)
222 x 116 x239 mm
LED
Indicators : System
Colour : Green, Orange and Red
Antenna Gain :
2.4-2.5GHz (5dBi) x 2
5.15-5.85GHz (5dBi) x 2
Orientation : Omni-directional
Fixed or Detachable : 4 Fixed Antennas
Power Supply Unit :
Original PSU : Switching PSU
Power input : 100 -240V / 50 -60Hz
Power Output : 12VDC/1A
Wireless Parameters:
Wireless Mode : 2.4G: 11b/g/n, 5G: a/ac
Frequency Band : 5GHz: Band1(CH36, 40, 44, 48), 2.4GHz: CH1~CH13
Extend Frequency : DSSS
Modulation Type : DBPSK, DQPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)
Data Transmission Rates : 300Mbps(2.4GHz), 867Mbps(5GHz)
RF Power : Follow CE: Wireless Security : 64/128-bit WEP,WPA / WPA2,WPA-PSK/WPA2-PSK encryption
Wireless Operation Mode : Wireless Routers
Default Manage Mode : Web management. 192.168.10.1
DHCP assign : DHCP server enabled: 192.168.10.1/255.255.255.0 , DNS Server : Optional
Wireless Operation Mode : Wireless Router
Wireless Radio : Enabled
Channel : Auto
Software :
Support MU-MIMO and beamforming
Support full EWAN port
Port Forwarding
Access Control : Parental Control, Local Management Control, Host list, Access Schedule
Firewall Security : DDoS, SPI Firewall (web Certificate), IP and MAC Address Binding
Protocols : Ipv4
Management Access : Access Control, Local Management
Guest Network
Access Internet : Dynamic IP, Static IP, PPPoE, L2TP, PPTP
Wireless Security : Provides 64/128-bit WEP encryption security and wireless LAN ACL (Access Control List)
Safety, Emission and others : CE
Protocols and Standards
IEEE Standards : 802.11ac, 802.11n, 802.11g, 802.11b, 802.11a, 802.3, 802.3u, 802.3ab, 802.1x, 802.11e, 802.11i, 802.3x
Others Protocols and Standards : CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, IPv4
Environment:
Operating Temperatures : 0?~40? (32?~104?)
Storage Temperature : -40?~70? (-40?~158?)
Operating Humidity : 10%~90% non-condensing
Storage Humidity : 5%~90% non-condensing
What's in the box
1 x R5 Router
1 x Power Adapther
1 x Quick Installation Guide
1 x Stand Base for Housing
1 x 1 Meter CAT5 RJ45 Cable
