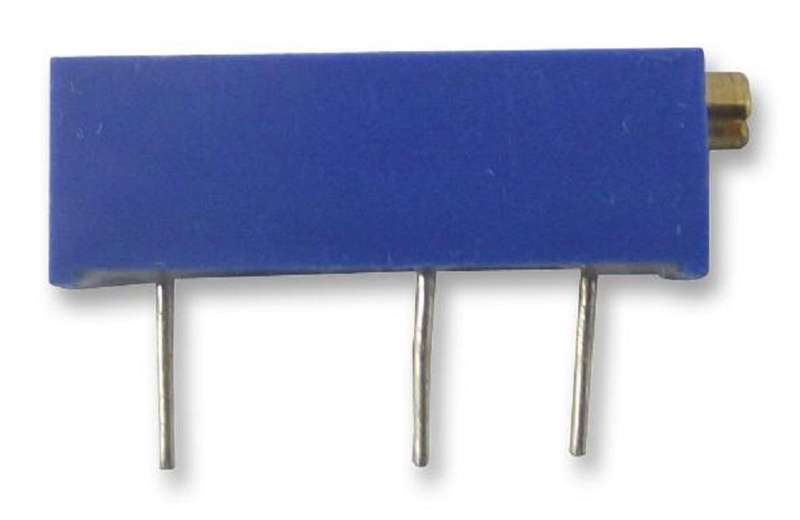

Bourns (3006P-1-102LF) Trimpot, Multi Turn, Cermet, Side Adjust, 1 kohm

Trimpot, Multi Turn, Cermet, Side Adjust, 1 kohm, Through Hole, 15 TurnsProduct InformationTrimpot Type: Multi TurnElement Material: CermetAdjustment Type: Side AdjustTrack Resistance: 1kohmPotentiometer Mounting: Through HoleNo. of Turns: 15TurnsProduct Range: 3006Power Rating: 750mWResistance Tolerance: ± 10%Temperature Coefficient: ± 100ppm/°CTrimpot Shape / Size: 3/4 Inch RectangularResistor Case / Package: -Product Length: 19.05mmProduct Width: 4.83mmProduct Height: 6.35mmOperating Temperature Min: -55°COperating Temperature Max: 125°CQualification: -MSL: -Product OverviewThe Bourns Trimpot 3006 series are cermet, through hole trimming potentiometers.These potentiometers are multi-turn which performs a variety of circuitadjustments in all types of electronic equipment. Typical applications aremeasuring linear distance, angle or rotation in production equipments.3/4inch rectangular potentiometerSide adjustment with lead screwSealing is IP65 rated15 turns and rotational life of 200 cyclesResistance value ranges from 10 ohm to 5Mohm±10% toleranceTemperature coefficient is ±100ppm/°COperating temperature ranges from -55°C to +125°CPower rating is 0.75WLow PC board profile of 1/4 " high
