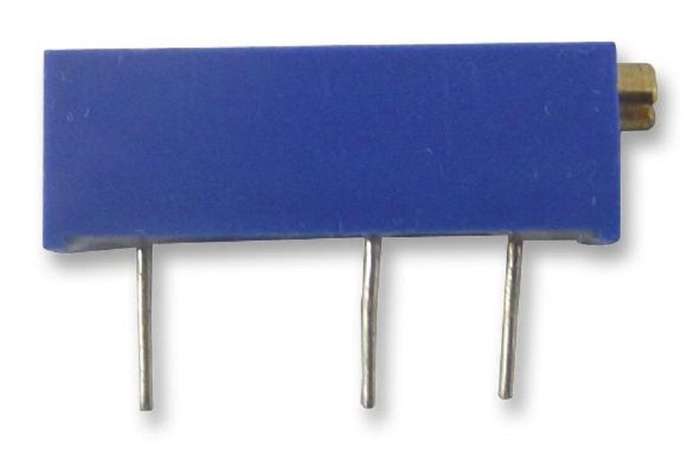

Bourns (3006P-1-103LF) Trimpot, Multi Turn, Cermet, Side Adjust, 10 kohm

Trimpot, Multi Turn, Cermet, Side Adjust, 10 kohm, Through Hole, 15 TurnsProduct InformationTrimpot Type: Multi TurnElement Material: CermetAdjustment Type: Side AdjustTrack Resistance: 10kohmPotentiometer Mounting: Through HoleNo. of Turns: 15TurnsProduct Range: 3006Power Rating: 750mWResistance Tolerance: ± 10%Temperature Coefficient: ± 100ppm/°CTrimpot Shape / Size: 3/4 Inch RectangularResistor Case / Package: -Product Length: 19.05mmProduct Width: 4.83mmProduct Height: 6.35mmOperating Temperature Min: -55°COperating Temperature Max: 125°CQualification: -MSL: -Product OverviewThe Trimpot 3006 series from Bourns are cermet, through hole trimmingpotentiometers. These potentiometers are multiturn which performs a variety ofcircuit adjustments in all types of electronic equipment. Typical applicationsare measuring linear distance, angle or rotation in production equipment.3/4inch rectangular potentiometerSide adjustment with lead screwSealing is IP65 rated15 turns and rotational life of 200 cyclesResistance value ranges from 10 ohm to 5Mohm±10% toleranceTemperature coefficient is ±100ppm/°COperating temperature ranges from -55°C to +125°CPower rating is 0.75WLow PC board profile of 1/4inch high
