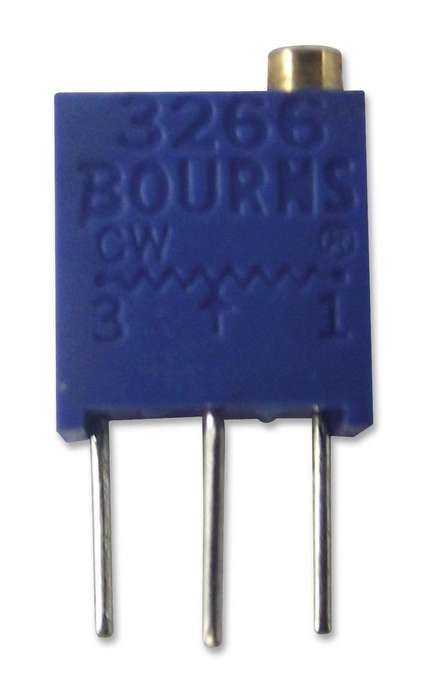

Bourns (3266W-1-501LF) Trimpot, Multi Turn, Cermet, Top Adjust, 500 ohm

Trimpot, Multi Turn, Cermet, Top Adjust, 500 ohm, Through Hole, 12 TurnsProduct InformationTrimpot Type: Multi TurnElement Material: CermetAdjustment Type: Top AdjustTrack Resistance: 500ohmPotentiometer Mounting: Through HoleNo. of Turns: 12TurnsProduct Range: 3266Power Rating: 250mWResistance Tolerance: ± 10%Temperature Coefficient: ± 100ppm/°CTrimpot Shape / Size: 1/4 Inch SquareResistor Case / Package: -Product Length: 6.71mmProduct Width: 4.5mmProduct Height: 7.24mmOperating Temperature Min: -55°COperating Temperature Max: 150°CQualification: -MSL: -Product OverviewThe Bourns Trimpot 3266 series are cermet, through hole trimming potentiometers.These potentiometers are multi-turn which performs a variety of circuitadjustments in all types of electronic equipment. Typical applications aremeasuring linear distance, angle or rotation in production equipments.1/4inch square potentiometerSide or top adjustment with lead screwSealing is IP65 rated12 turns and rotational life of 200 cyclesResistance value ranges from 10 ohm to 1Mohm±10% toleranceTemperature coefficient is ±100ppm/°COperating temperature ranges from -55°C to +125°CPower rating is 0.25WStandoffs allow thorough PC board cleaning
