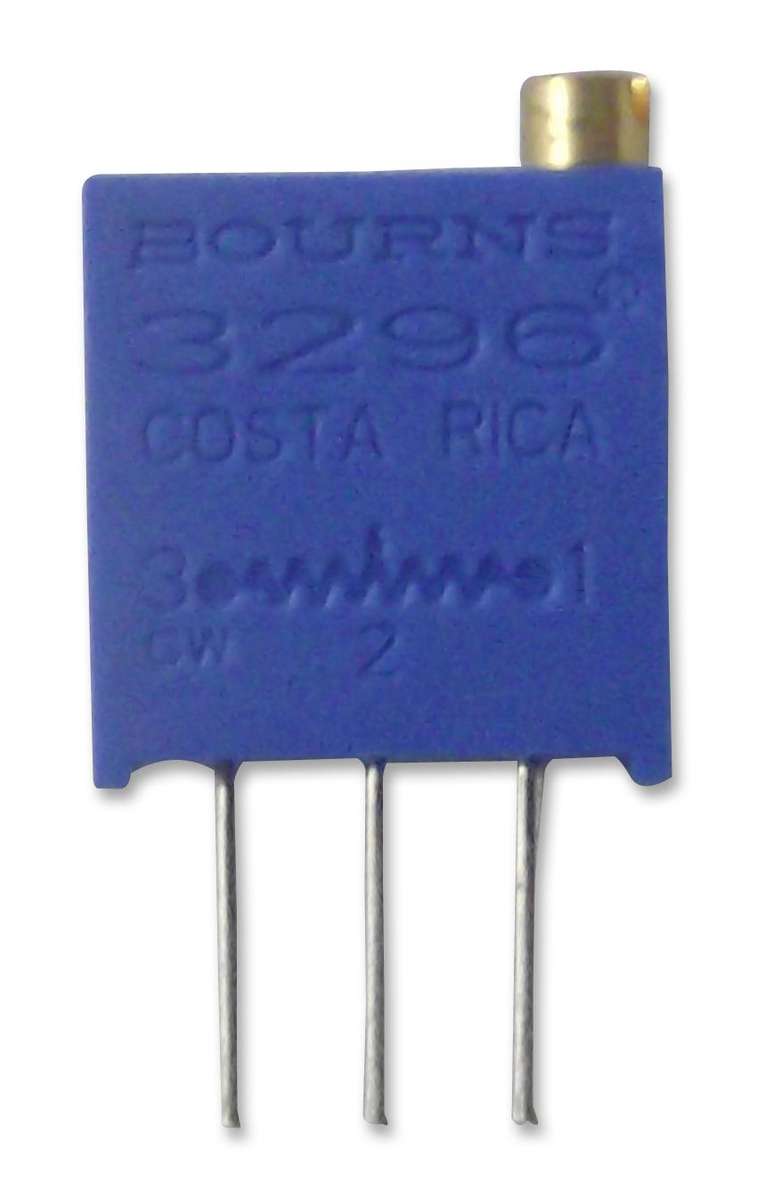

Bourns (3296W-1-105LF) Trimpot, Multi Turn, Cermet, Top Adjust, 1 Mohm

Trimpot, Multi Turn, Cermet, Top Adjust, 1 Mohm, Through Hole, 25 TurnsProduct InformationTrimpot Type: Multi TurnElement Material: CermetAdjustment Type: Top AdjustTrack Resistance: 1MohmPotentiometer Mounting: Through HoleNo. of Turns: 25TurnsProduct Range: 3296Power Rating: 500mWResistance Tolerance: ± 10%Temperature Coefficient: ± 100ppm/°CTrimpot Shape / Size: 3/8 Inch SquareResistor Case / Package: SIPProduct Length: 9.53mmProduct Width: 4.83mmProduct Height: 10.3mmOperating Temperature Min: -55°COperating Temperature Max: 150°CQualification: -MSL: -Product OverviewThe Bourns Trimpot 3296 series are cermet, through hole trimming potentiometers.These potentiometers are multi-turn which performs a variety of circuitadjustments in all types of electronic equipment. Typical applications aremeasuring linear distance, angle or rotation in production equipments.3/8inch square potentiometerSide or top adjustment with lead screwSealing is IP65 rated25 turns and rotational life of 200 cyclesResistance value ranges from 10 ohm to 2Mohm±10% toleranceTemperature coefficient is ±100ppm/°COperating temperature ranges from -55°C to +125°CPower rating is 0.5W5 terminal styles, chevron seal design
