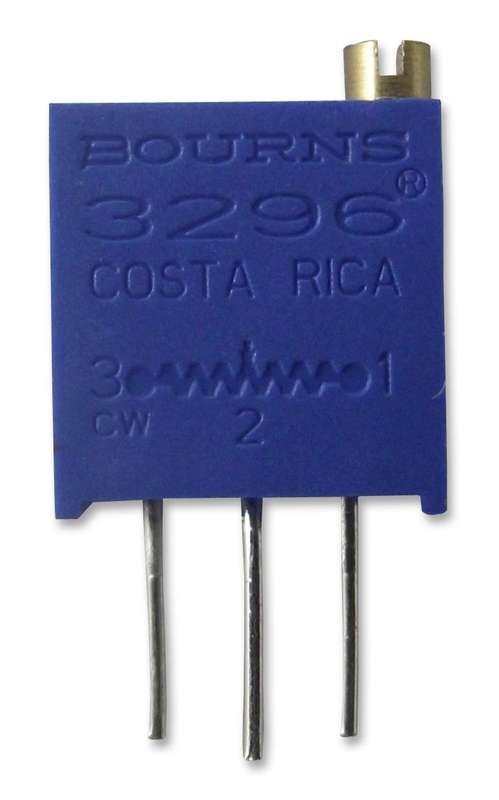

Bourns (3296Y-1-103LF) Trimpot, Multi Turn, Cermet, Top Adjust, 10 kohm

Bourns (3296Y-1-103LF) Trimpot, Multi Turn, Cermet, Top Adjust, 10 kohm

New 6092 available
R209.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 7 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
9353526
Bob Shop ID
645129277
Trimpot, Multi Turn, Cermet, Top Adjust, 10 kohm, Through Hole, 25 TurnsProduct InformationTrimpot Type: Multi TurnElement Material: CermetAdjustment Type: Top AdjustTrack Resistance: 10kohmPotentiometer Mounting: Through HoleNo. of Turns: 25TurnsProduct Range: 3296Power Rating: 500mWResistance Tolerance: ± 10%Temperature Coefficient: ± 100ppm/°CTrimpot Shape / Size: 3/8 Inch SquareResistor Case / Package: -Product Length: 9.53mmProduct Width: 4.83mmProduct Height: 10.3mmOperating Temperature Min: -55°COperating Temperature Max: 150°CQualification: -MSL: -Product OverviewThe Bourns Trimpot 3296 series are cermet, through hole trimming potentiometers.These potentiometers are multi-turn which performs a variety of circuitadjustments in all types of electronic equipment. Typical applications aremeasuring linear distance, angle or rotation in production equipments.3/8inch square potentiometerSide or top adjustment with lead screwSealing is IP65 rated25 turns and rotational life of 200 cyclesResistance value ranges from 10 ohm to 2Mohm±10% toleranceTemperature coefficient is ±100ppm/°COperating temperature ranges from -55°C to +125°CPower rating is 0.5W5 terminal styles, chevron seal design
Add to cart
