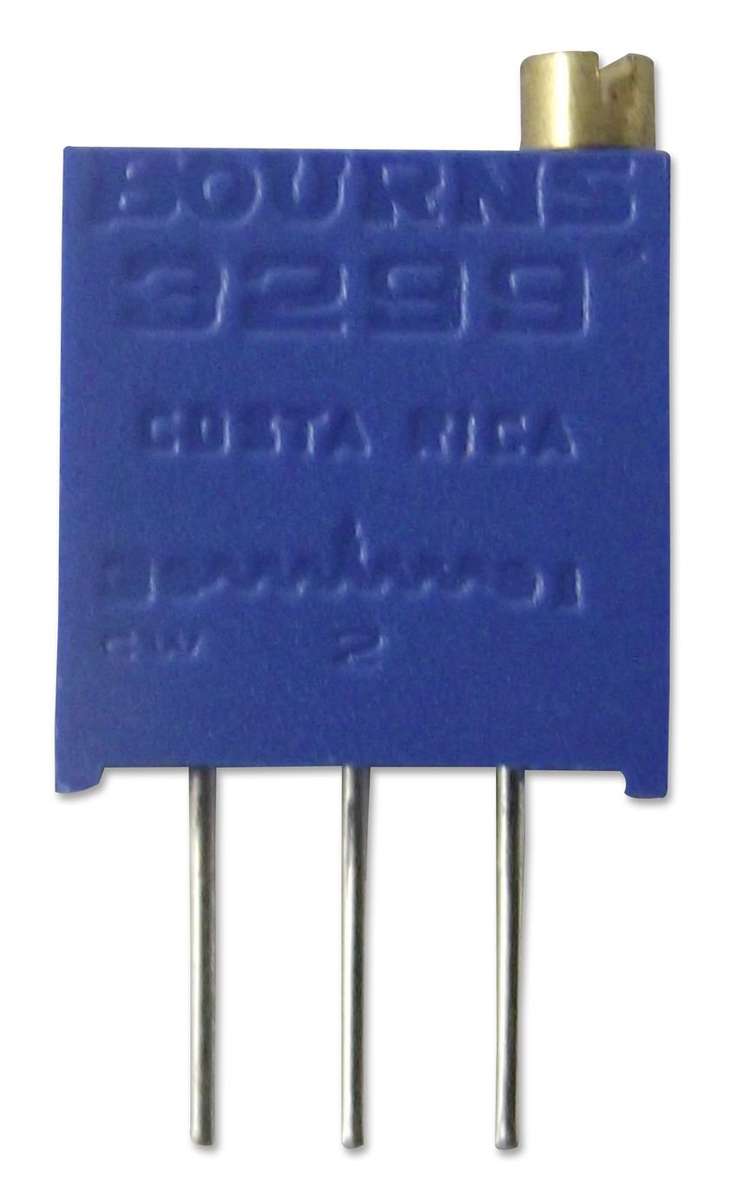

Bourns (3299W-1-103LF) Trimpot, Multi Turn, Cermet, Top Adjust, 10 kohm

Trimpot, Multi Turn, Cermet, Top Adjust, 10 kohm, Through Hole, 25 TurnsProduct InformationTrimpot Type: Multi TurnElement Material: CermetAdjustment Type: Top AdjustTrack Resistance: 10kohmPotentiometer Mounting: Through HoleNo. of Turns: 25TurnsProduct Range: 3299Power Rating: 500mWResistance Tolerance: ± 10%Temperature Coefficient: ± 100ppm/°CTrimpot Shape / Size: 3/8 Inch SquareResistor Case / Package: SIPProduct Length: 9.53mmProduct Width: 6.1mmProduct Height: 10.3mmOperating Temperature Min: -55°COperating Temperature Max: 125°CQualification: -MSL: -Product OverviewThe Trimpot 3299 series from Bourns are cermet, through hole trimmingpotentiometers. These potentiometers are multiturn which performs a variety ofcircuit adjustments in all types of electronic equipment. Typical applicationsare measuring linear distance, angle or rotation in production equipments.3/8inch square potentiometerSide or top adjustment with lead screwSealing is IP65 rated25 turns and rotational life of 200 cyclesResistance value ranges from 10 ohm to 2Mohm±10% toleranceTemperature coefficient is ±100ppm/°COperating temperature ranges from -55°C to +125°CPower rating is 0.5W5 popular terminal styles, standoffs allow thorough PC board washing
