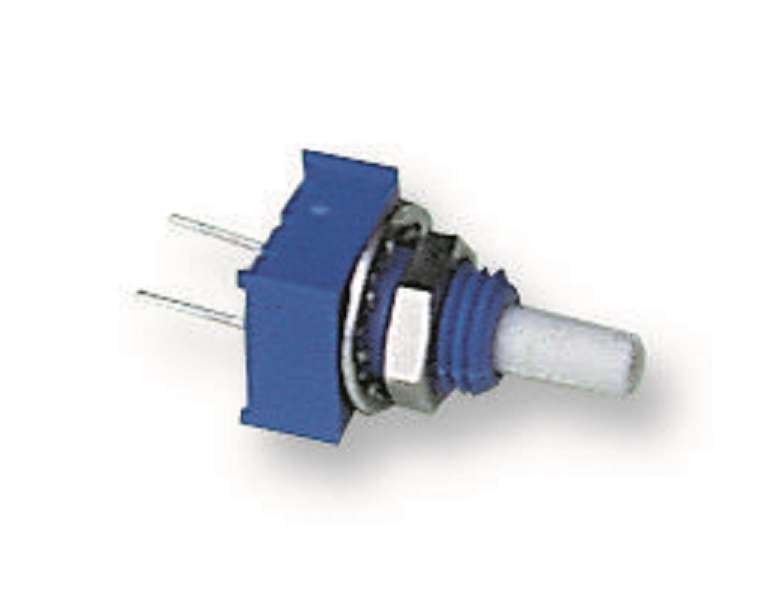

Bourns (3310P-001-502L) Rotary Potentiometer, Sealed Panel Control

Bourns (3310P-001-502L) Rotary Potentiometer, Sealed Panel Control

New 16 available
R265.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 7 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
1156133
Bob Shop ID
674509170
Rotary Potentiometer, Sealed Panel Control, 5 kohm, 1 Turns, Linear, 250 mW, ±20%, 3310PProduct InformationTrack Resistance: 5kohmNo. of Turns: 1TurnsTrack Taper: LinearPower Rating: 250mWResistance Tolerance: ± 20%Product Range: 3310PPotentiometer Mounting: Panel MountShaft Diameter: 3.18mmNo. of Gangs: 1Adjustment Type: Screwdriver SlotShaft Length: 12.7mmTemperature Coefficient: ± 1000ppm/°CPotentiometer Type: -Resistor Technology: Conductive PlasticPotentiometer Terminals: PC PinResistor Case / Package: -Product Length: 23.85mmProduct Width: 9.53mmProduct Height: 9.53mmOperating Temperature Min: -40°COperating Temperature Max: 125°CProduct OverviewThe Bourns 3310P series are through hole, panel control potentiometer. Thesepotentiometers are single turn which is designed for frequent adjustmentapplication. These devices are available in plastic or metal bushing and plasticshaft combination.5.08mm x 2.54mm triangular pattern terminals, rear exit9mm square potentiometerSealing is IP67 ratedResistance value ranges from 1Kohm to 1Mohm±20% toleranceOperating temperature ranges from -40°C to +125°CPower rating is 0.25WPC board and bushing mount
Add to cart
