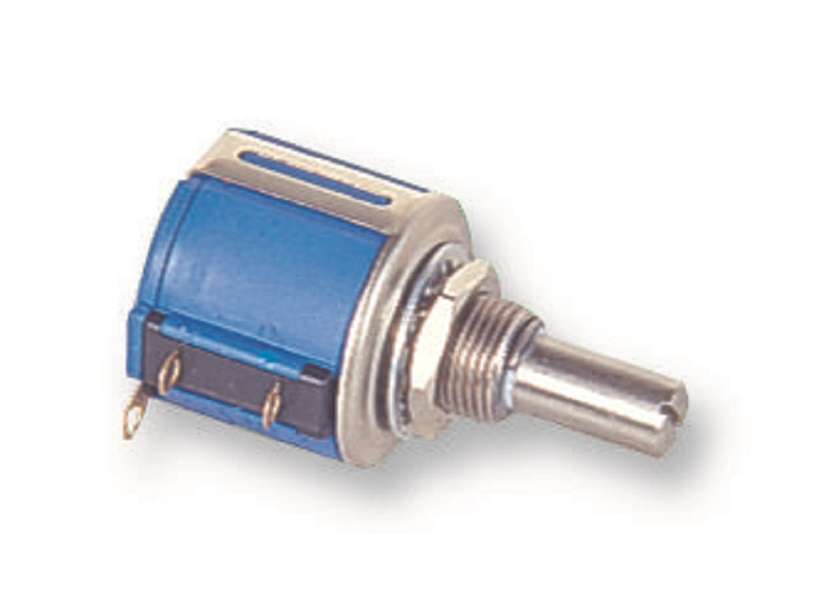

Bourns (3540S-1-103L) Rotary Potentiometer, Wirewound, 10 kohm, 10 Turns

Rotary Potentiometer, Wirewound, 10 kohm, 10 Turns, Linear, 2 W, ± 5%, 3540SProduct InformationTrack Resistance: 10kohmNo. of Turns: 10TurnsTrack Taper: LinearPower Rating: 2WResistance Tolerance: ± 5%Product Range: 3540SPotentiometer Mounting: Panel MountShaft Diameter: 6.35mmNo. of Gangs: 1Adjustment Type: Screwdriver SlotShaft Length: 20.62mmTemperature Coefficient: ± 50ppm/°CPotentiometer Type: PrecisionResistor Technology: WirewoundOperating Temperature Min: -55°COperating Temperature Max: 125°CProduct OverviewThe Bourns 3540 series are precision, panel mount wirewound potentiometers.These potentiometers are multi-turn which is designed for control applicationswhere accuracy and high reliability is of major concern. Typical applicationsare measuring linear distance, angle or rotation in production equipments.7/8inch round potentiometerSealing is IP40 ratedMetal shaft and bushingResistance value ranges from 100 ohm to 100Kohm±5% tolerancePower rating is 2W10 turns with high Rotational lifeOptional centre tap and rear shaft extension and optional AR lug featureGangable with common or concentric shaftsHigh torque available
