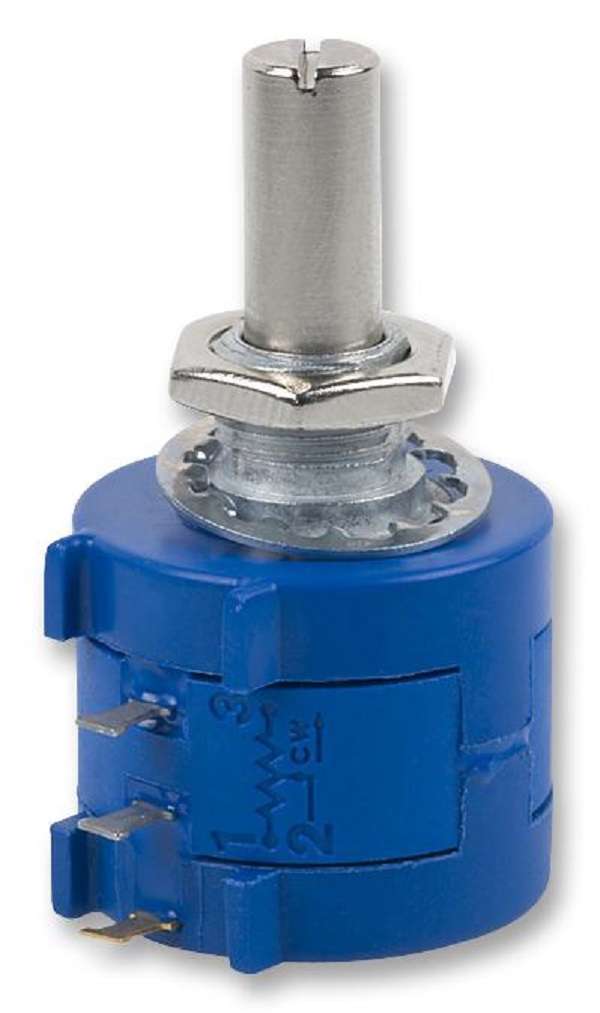

Bourns (3590S-1-102L) Rotary Potentiometer, Wirewound, 1 kohm, 10 Turns

Bourns (3590S-1-102L) Rotary Potentiometer, Wirewound, 1 kohm, 10 Turns

New 123 available
R835.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
1689928
Bob Shop ID
645122030
Rotary Potentiometer, Wirewound, 1 kohm, 10 Turns, Linear, 2 W, ± 5%, 3590SProduct InformationTrack Resistance: 1kohmNo. of Turns: 10TurnsTrack Taper: LinearPower Rating: 2WResistance Tolerance: ± 5%Product Range: 3590SPotentiometer Mounting: Bushing MountShaft Diameter: 6.3mmNo. of Gangs: 1Adjustment Type: Screwdriver SlotShaft Length: 20.62mmTemperature Coefficient: ± 50ppm/°CPotentiometer Type: PrecisionResistor Technology: WirewoundOperating Temperature Min: 1°COperating Temperature Max: 125°CProduct OverviewThe 3590S-1-102L is a Rotary Precision Potentiometer with screwdriver slotadjustment. This 3590S series wire-wound potentiometer comes with solder lugterminals, a plastic shaft and busing. It features 10 turns and 1° maximumbacklash. One lockwasher and one mounting nut is shipped with eachpotentiometer.Bushing mount1000MR at 500VDC Minimum insulation resistance1500VAC at sea level Minimum dielectric withstanding voltage-40 to 125°C Operating temperature range
Add to cart
