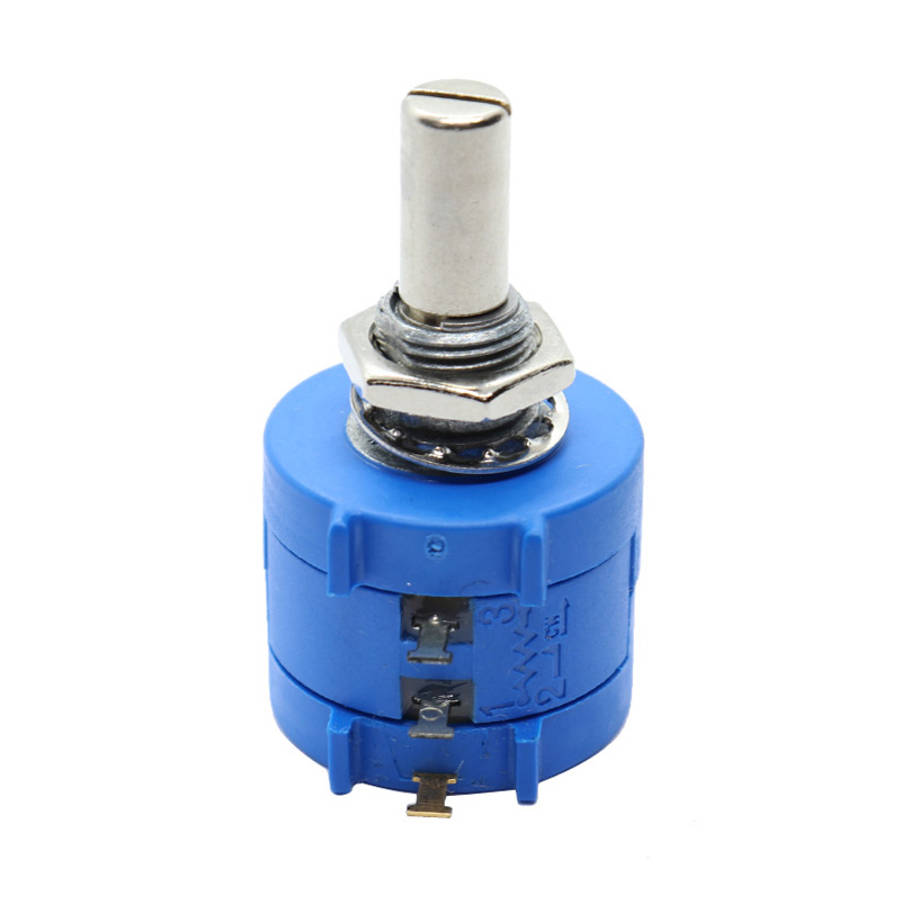

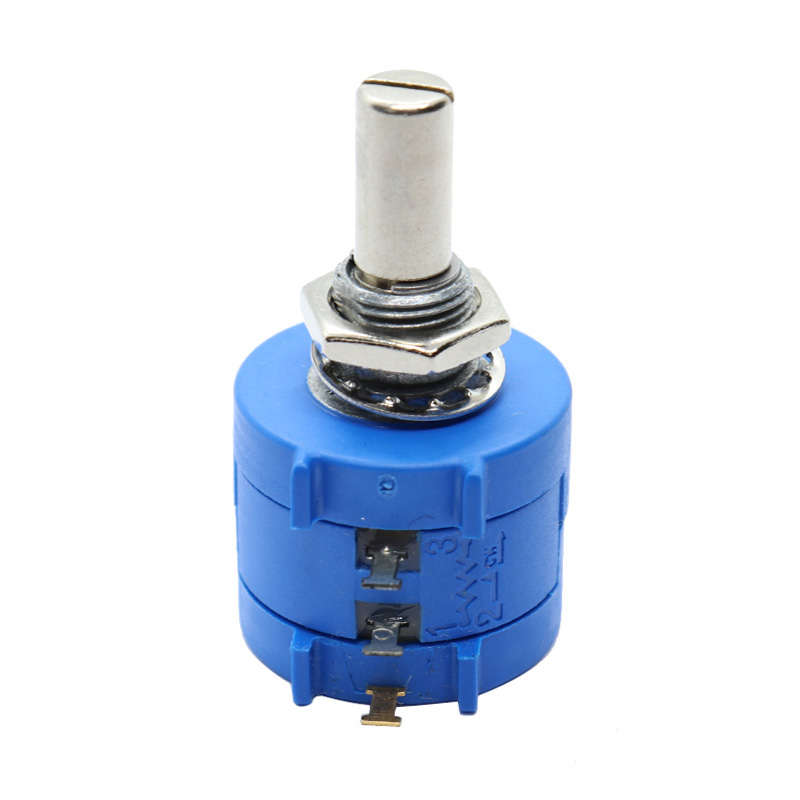

Bourns (3590S-2-502L) Rotary Potentiometer, Wirewound, 5 kohm, 10 Turns

Rotary Potentiometer, Wirewound, 5 kohm, 10 Turns, Linear, 2 W, ± 5%, 3590SProduct InformationTrack Resistance: 5kohmNo. of Turns: 10TurnsTrack Taper: LinearPower Rating: 2WResistance Tolerance: ± 5%Product Range: 3590SPotentiometer Mounting: Panel MountShaft Diameter: 6.35mmNo. of Gangs: 1Adjustment Type: Screwdriver SlotShaft Length: 20.63mmTemperature Coefficient: ± 50ppm/°CPotentiometer Type: PrecisionResistor Technology: WirewoundOperating Temperature Min: 1°COperating Temperature Max: 125°CProduct OverviewThe 3590 series from Bourns are precision, panel mount wirewound potentiometer.These potentiometers are multiturn which is designed for control applicationswhere accuracy and high reliability is of major concern. Typical applicationsare measuring linear distance, angle or rotation in production equipments.7/8inch round potentiometerPlastic or metal shaft and bushingSealing is IP65 rated (fully sealed body)10 turns with high rotational lifeResistance value ranges from 200 ohm to 100Kohm±5% tolerancePower rating is 2WOptional AR pin featureSolder lug(suffix-S) or PC pins(suffix-P)Designed for use in HMI applications
