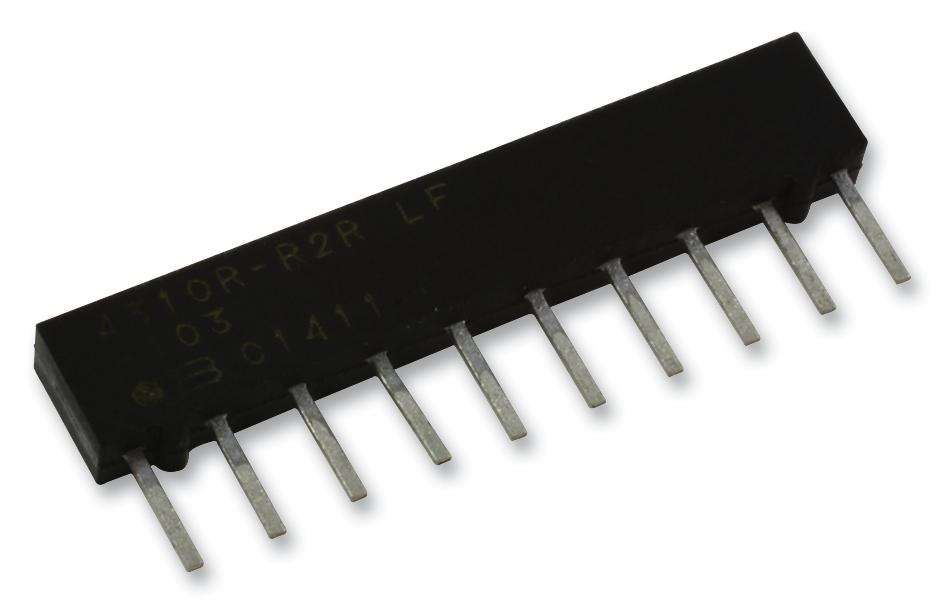

Bourns (4310R-R2R-103LF) Fixed Network Resistor, 10 kohm, R-2R Ladder

Fixed Network Resistor, 10 kohm, R-2R Ladder, 5 Elements, SIP, 10 Pins, PC PinProduct InformationResistance: 10kohmNetwork Circuit Type: R-2R LadderNo. of Elements: 5ElementsResistor Case / Package: SIPNo. of Pins: 10PinsResistor Terminals: PC PinPower Rating per Element: -Resistance Tolerance: ± 2%Temperature Coefficient: ± 100ppm/°CProduct Range: 4300RProduct OverviewThe 4310R-R2R-103LF is a 10kR 10-pin 5-element thick film low profile mouldedstandard ladder Resistor Network is commonly used for digital to analogue (D/A)conversions and analogue to digital (A/D) conversion by successiveapproximations. The bits of the ladder are the points at which input signals arepresented to the ladder and the output terminal (OUT) is the point at which theoutput is taken from the R/2R ladder. This terminal (OUT) is commonly used todrive an operational amplifier. RT (the terminating resistor) is alwaysconnected to ground.Tin-coated terminations±2% Standard tolerance
