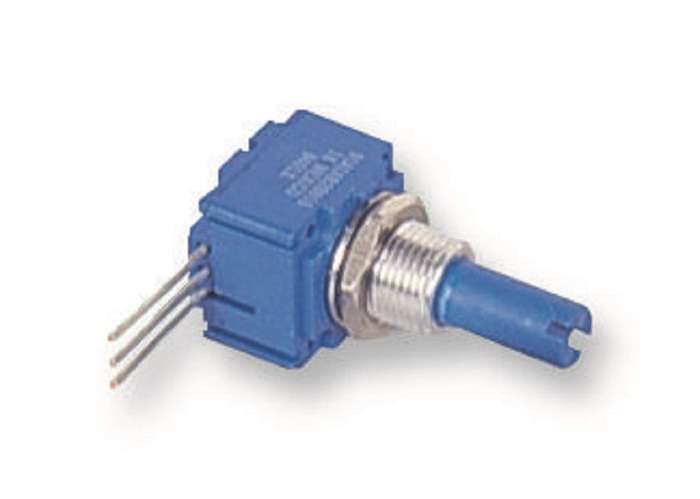

Bourns (91A1A-B28-B15L) Rotary Potentiometer, Conductive Plastic, 10 kohm

Rotary Potentiometer, Conductive Plastic, 10 kohm, 1 Turns, Linear, 1 W, ± 20%,91Product InformationTrack Resistance: 10kohmNo. of Turns: 1TurnsTrack Taper: LinearPower Rating: 1WResistance Tolerance: ± 20%Product Range: 91Potentiometer Mounting: Through HoleShaft Diameter: 6.35mmNo. of Gangs: 1Adjustment Type: Screwdriver SlotShaft Length: 22.2mmTemperature Coefficient: ± 1000ppm/°CPotentiometer Type: -Resistor Technology: Conductive PlasticPotentiometer Terminals: PC PinResistor Case / Package: -Product Length: 34.93mmProduct Width: 15.88mmProduct Height: 17.45mmOperating Temperature Min: 1°COperating Temperature Max: 125°CProduct OverviewThe 91 series from Bourns are through hole, panel control potentiometer. Thesepotentiometers are single turn which is designed for frequent adjustmentapplication. These devices are available in plastic or metal bushing and shaftcombination.5/8inch square potentiometer, in line PC pinsSealing is IP40 ratedConductive plastic/cermet element type±5%, ±10% and ±20% toleranceResistance value ranges from 100 ohm to 1MohmHigh Rotational lifeLinear and audio taper availableMaximum power rating is 2WOperating temperature ranges from -40°C to +125°C
