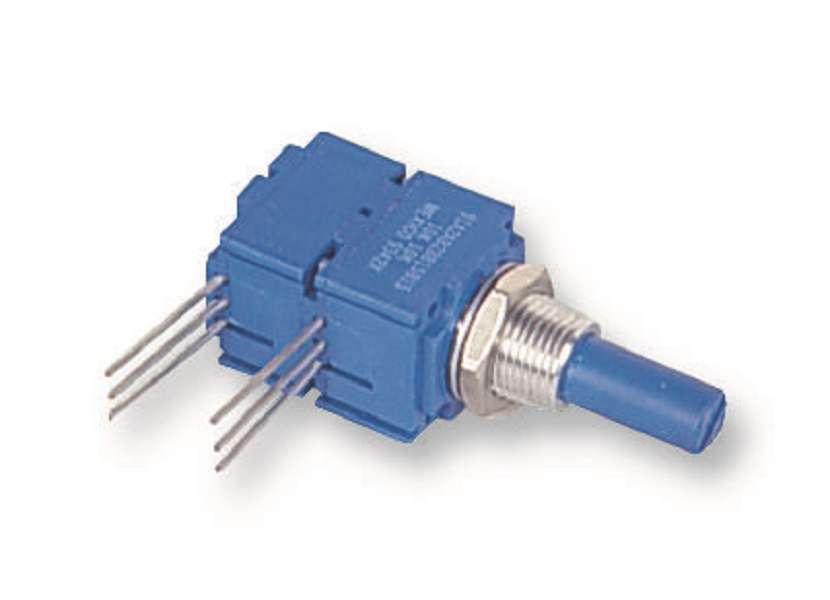

Bourns (91A2A-B28-D15/D15L) Rotary Potentiometer, Conductive Plasti

Bourns (91A2A-B28-D15/D15L) Rotary Potentiometer, Conductive Plasti

New 247 available
R919.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 7 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
9357858
Bob Shop ID
645118390
Rotary Potentiometer, Conductive Plastic, 10 kohm, 1 Turns, Log (Audio), 250 mW,± 20%, 91Product InformationTrack Resistance: 10kohmNo. of Turns: 1TurnsTrack Taper: Log (Audio)Power Rating: 250mWResistance Tolerance: ± 20%Product Range: 91Potentiometer Mounting: Through HoleShaft Diameter: 6.35mmNo. of Gangs: 1Adjustment Type: Screwdriver SlotShaft Length: 22.2mmTemperature Coefficient: ± 1000ppm/°CPotentiometer Type: -Resistor Technology: Conductive PlasticPotentiometer Terminals: PC PinResistor Case / Package: -Product Length: 45.1mmProduct Width: 15.88mmProduct Height: 17.45mmOperating Temperature Min: -40°COperating Temperature Max: 125°CProduct OverviewThe 91A2A-B28-D15/D15L is a 5/8-inch Square Single Turn In-line PC pins PanelControl Potentiometer with conductive plastic element, printed circuitterminals, J-Hooks or solder lugs. Virtually infinite electrical circuitisolation and power rating of 250mW.Linear and audio tapersAvailable in a variety of pin-out configurations1500V Dielectric strength1000MR Insulation resistance100000 Cycles rotational lifeIP67 Protection rating300° ±5° Mechanical angleMetal or plastic shaft optionsOperating temperature ranges from -40°C to +125°C
