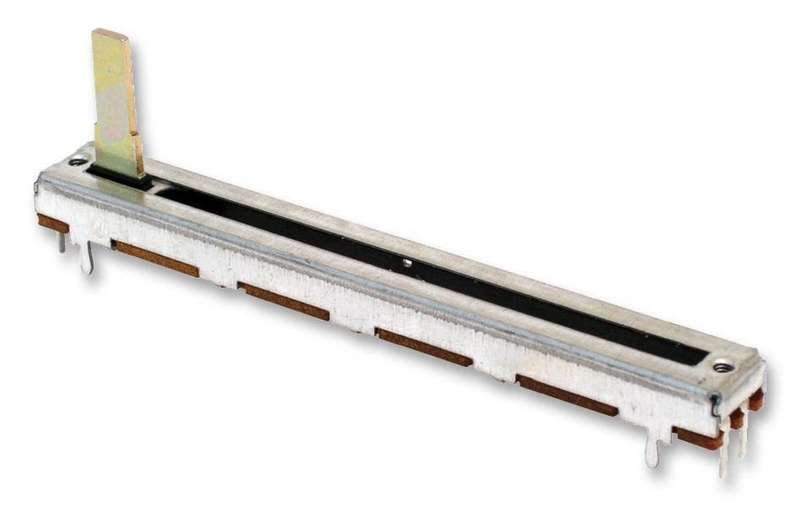

Bourns (PTA6043-2015DPB103) Potentiometer, Slide, 60mm Travel, 10 kohm

Bourns (PTA6043-2015DPB103) Potentiometer, Slide, 60mm Travel, 10 kohm

1174 available / new
R205.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
1688411
Bob Shop ID
645130178
Potentiometer, Slide, 60mm Travel, 10 kohm, 250 mW, ± 20%, PTA Series, LinearProduct InformationTrack Resistance: 10kohmSlide Potentiometer Type: Low ProfilePower Rating: 250mWResistance Tolerance: ± 20%Track Taper: LinearPotentiometer Mounting: Through HoleLength of Travel: 60mmLever Length: 15mmResistor Technology: CarbonPotentiometer Terminals: PC PinProduct Range: PTAProduct Length: 75mmProduct Width: 9mmProduct Height: 6.5mmOperating Temperature Min: -10°COperating Temperature Max: 50°CProduct OverviewThe PTA series from Bourns are low profile slide potentiometers. These slidepotentiometers are designed for applications where frequent adjustment isrequired. These are ideally used in Audio/TV sets, Car radio,Amplifiers/mixers/drum machines/synthesizers, PC's and other appliances.Length of travel ranges from 15mm to 60mmLinear slide shapeSealing is IP30 ratedCarbon elementPlastic lever and metal housingResistance value varies from 1Kohm to 1MohmSingle or dual gangStandard resistance tolerance of ±20%Operating temperature range from -10°C to 50°CLinear or audio taper
Add to cart
