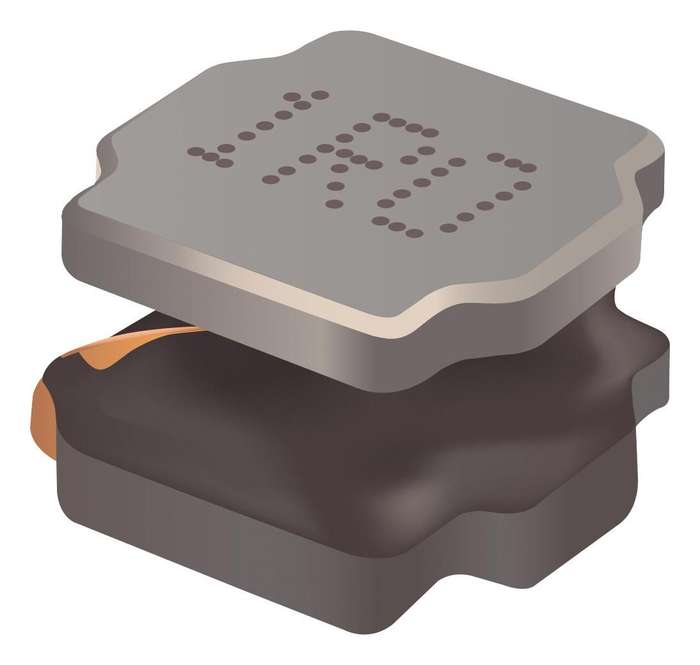

Bourns (SRN6045TA-3R3Y) Power Inductor (SMD), AEC-Q200, 3.3 µH, 5 A,

Power Inductor (SMD), AEC-Q200, 3.3 µH, 5 A, Semishielded, 7.8 A, SRN6045TA, 6mmx 6mm x 4.2mmProduct InformationInductance: 3.3µHRMS Current (Irms): 5AInductor Construction: SemishieldedSaturation Current (Isat): 7.8AProduct Range: SRN6045TAPower Inductor Case: 6mm x 6mm x 4.2mmDC Resistance Max: 0.021ohmInductance Tolerance: ± 30%Product OverviewThe SRN6045TA-3R3Y from Bourns is a SRN6045TA series SMD semi shielded powerinductor. It is typically used in applications such as driver assistant,infotainment, lighting DC to DC converters, power supplies, digital videocameras, HDDs, smartphones, televisions and LCD displays.Automotive grade AEC-Q200 qualifiedInductance is 3.3µH at 1MHz/1VTolerance is ±30%DCR (DC resistance of inductor) is 21mohm (±20%)Maximum RMS current (Irms) is 5AMaximum saturation current (Isat) is 7.8AFerrite core, enamelled copper wire and Sn terminal finishOperating temperature range from -55°C to 125°CDimension is 6mm x 6mm x 4.2mm
