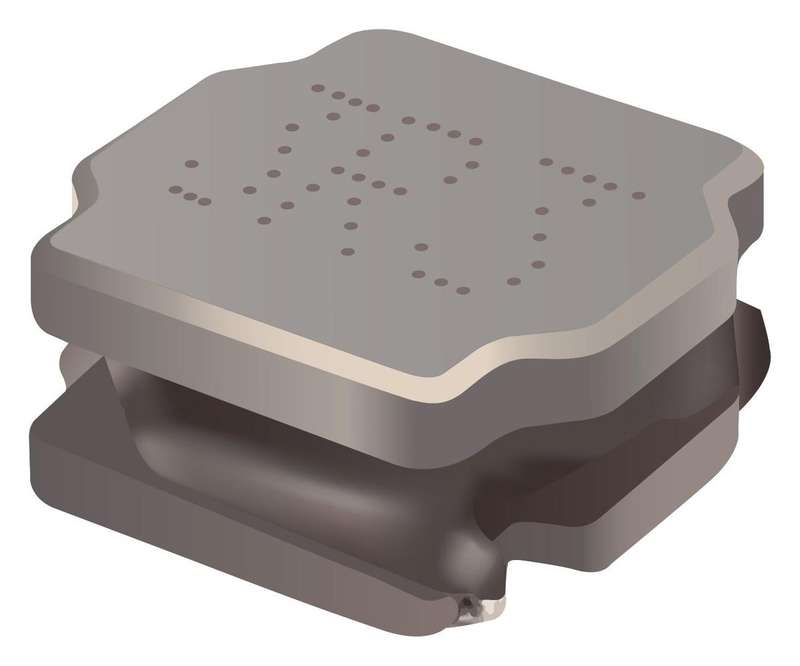

Bourns (SRN8040TA-560M) Power Inductor (SMD), AEC-Q200, 56 µH, 1.75 A

Power Inductor (SMD), AEC-Q200, 56 µH, 1.75 A, Semishielded, 1.9 A, SRN8040TA,8mm x 8mm x 3.7mmProduct InformationInductance: 56µHRMS Current (Irms): 1.75AInductor Construction: SemishieldedSaturation Current (Isat): 1.9AProduct Range: SRN8040TAPower Inductor Case: 8mm x 8mm x 3.7mmDC Resistance Max: 0.16ohmInductance Tolerance: ± 20%Product OverviewThe SRN8040TA-560M from Bourns is a SRN8040TA series SMD semi shielded powerinductor. It is typically used in applications such as driver assistant,infotainment, lighting, DC to DC converters, power supplies, digital videocameras, HDDs, smartphones, televisions and LCD displays.Automotive grade AEC-Q200 qualifiedInductance is 56µH at 1MHz/1VTolerance is ±20%DCR (DC resistance of inductor) is 160mohm (±20%)Maximum RMS current (Irms) is 1.75AMaximum saturation current (Isat) is 1.9AFerrite core, enamelled copper wire and Sn terminal finishOperating temperature range from -55°C to 125°CDimension is 8mm x 8mm x 3.7mm
