From Bowers & Wilkins:

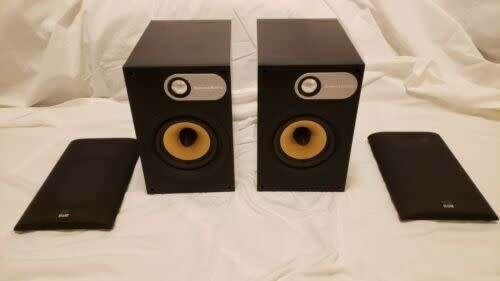

"The 686 is the baby of the 600 Series bunch, but doesn't lack for the technologies and features to deliver outrageously good sound in smaller room settings. Mount a pair on a wall or stand, or simply sit them on a shelf or table for a compact stereo system or as surround speakers in a home theater set-up.The 130mm diameter Kevlar cone bass/midrange is based on a tried-and-trusted B&W design, but its new fixed center bullet helps to smooth the response in upper frequencies. Also, by setting the bass/midrange closer to the tweeter than in equivalent earlier speakers, we have improved the integration and vertical dispersion of sound from the two units. The Nautilus tube-loaded, aluminum dome tweeter, featuring a new surround material to improve spaciousness and imaging, adds needle-sharp top end all the way to 50kHz and beyond."
Technical features:
Nautilus tube-loaded aluminium dome tweeter
Kevlar® brand fibre cone bass/midrange
Flowport
Description:
2-way vented-box system
Drive units:
1x ø25mm (1 in) aluminium dome high-frequency
1x ø130mm (5 in) woven Kevlar® cone bass/midrange
Frequency range:
-6dB at 45Hz and 50kHz
Frequency response:
55Hz - 22kHz ±3dB on reference axis
Dispersion:
Within 2dB of reference response
Horizontal: over 60° arc
Vertical: over 10° arc
Sensitivity:
84dB spl (2.83V, 1m)
Harmonic distortion:
2nd and 3rd harmonics (90dB, 1m)
<1% 110Hz - 22kHz
<0.5% 150Hz - 20kHz
Nominal impedance:
8 (minimum 5.1)
Crossover frequency:
4kHz
Recommended amplifier power:
30W - 100W into 8 on unclipped programme
Max. recommended cable impedance:
0.1
Dimensions:
Height: 265mm (10.5 in) (not including feet)
Width: 170mm (6.7 in)
Depth: 284mm (11.2 in) (including grille and terminals)
Net weight;
4.9kg (10.8 lb)
