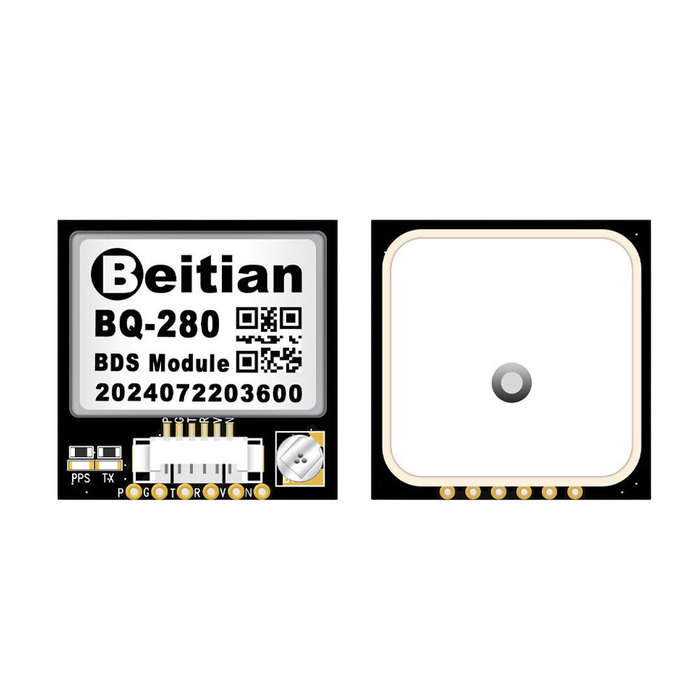

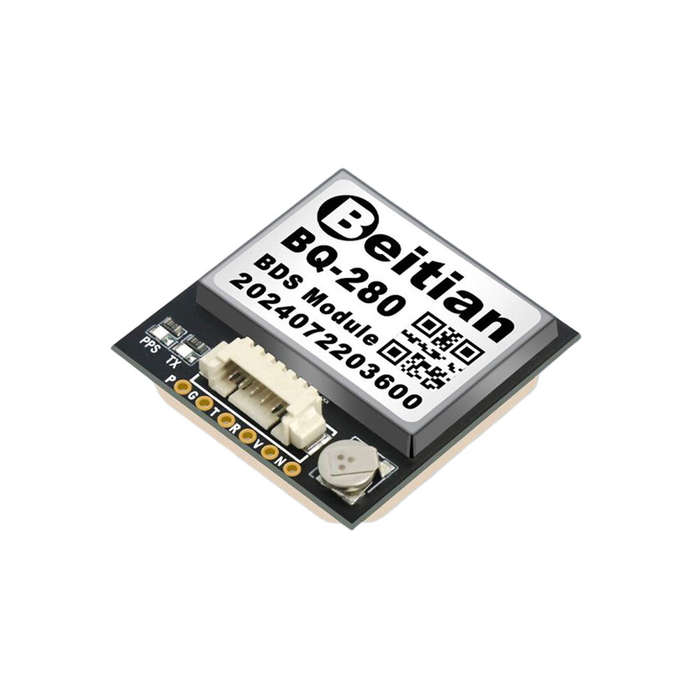

BQ-280 - Beitian BQ-280 BDS GPS Module High Precision GNSS Positioning Built-in Antenna with Interna BQ-280 - Beitian BQ-280 BDS GPS Module High Precision GNSS Positioning Built-in Antenna with Interna BQ-280 - Beitian BQ-280 BDS GPS Module High Precision GNSS Positioning Built-in Antenna with Interna
BQ-280 - Beitian BQ-280 BDS GPS Module High Precision GNSS Positioning Built-in Antenna with Interna BQ-280 - Beitian BQ-280 BDS GPS Module High Precision GNSS Positioning Built-in Antenna with Interna BQ-280 - Beitian BQ-280 BDS GPS Module High Precision GNSS Positioning Built-in Antenna with Interna

BQ-280 - Beitian BQ-280 BDS GPS Module High Precision GNSS Positioning Built-in Antenna with Interna

New 1 available
Indicative market price: R863.88
Only 1 left – grab it before it’s gone!
R588.88
32% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
There are various locker and counter collection points across South Africa.
View locations
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
2033637-POA11554355
Bob Shop ID
652213501

Specification:
Brand: Beitian
Model: BQ-280
Item Name: GPS Integrated Module
Chip: AT6668B
Frequency Bands: BDS-B1I, BDS-B1C

Work Mode: BDS
Signal Tracking Sensitivity: -161dBm
Reacquisition Sensitivity: -158dBm
Cold Start Sensitivity: -148dBm
Hot Start Sensitivity: -155dBm
Horizontal Positioning Accuracy: <2m (CEP50)
Speed Accuracy: <0.1m/s (1)
1PPS Time Accuracy: 20ns
Cold Start: 23s
Hot Start: 1s
Reacquisition Time: 1s
Serial Port Baud Rate: 115200bps
Output Level: TTL
Output Protocol: NMEA
Update Rate: 1Hz
Flash Memory: Supported
Clock Pulse Output Frequency: 0.25Hz to 10MHz
Maximum Altitude: 18,000m
Maximum Speed: 515m/s
Voltage Range: DC 3.6V to 5.5V (Typical: 5.0V)
Current (Normal): 35mA @ 5.0V

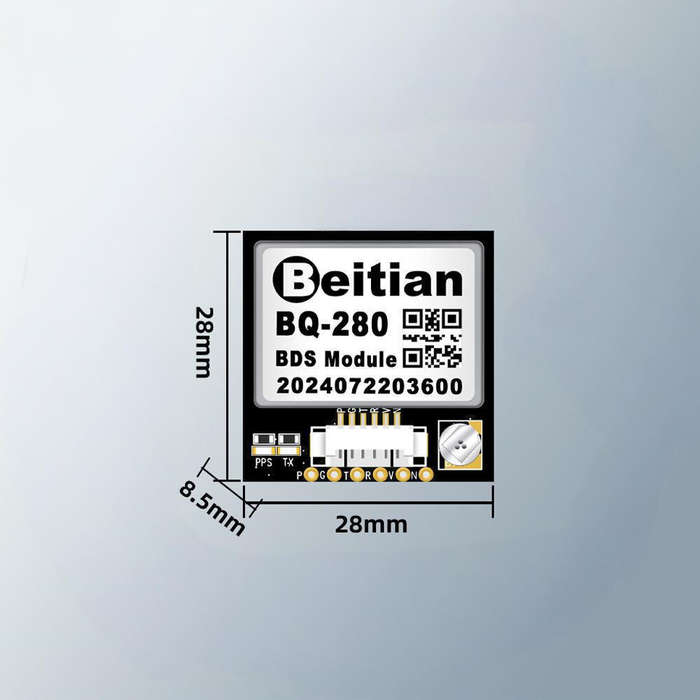

Dimensions: 28mm x 28mm x 8.5mm
Weight: 14g
Connector: 1.25 pitch 6PIN connector
