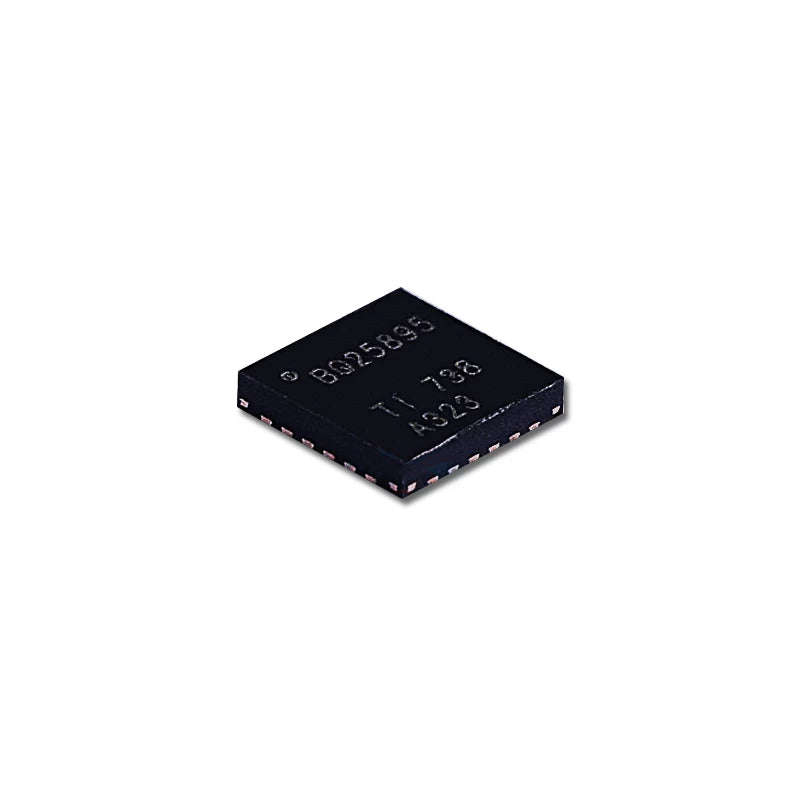

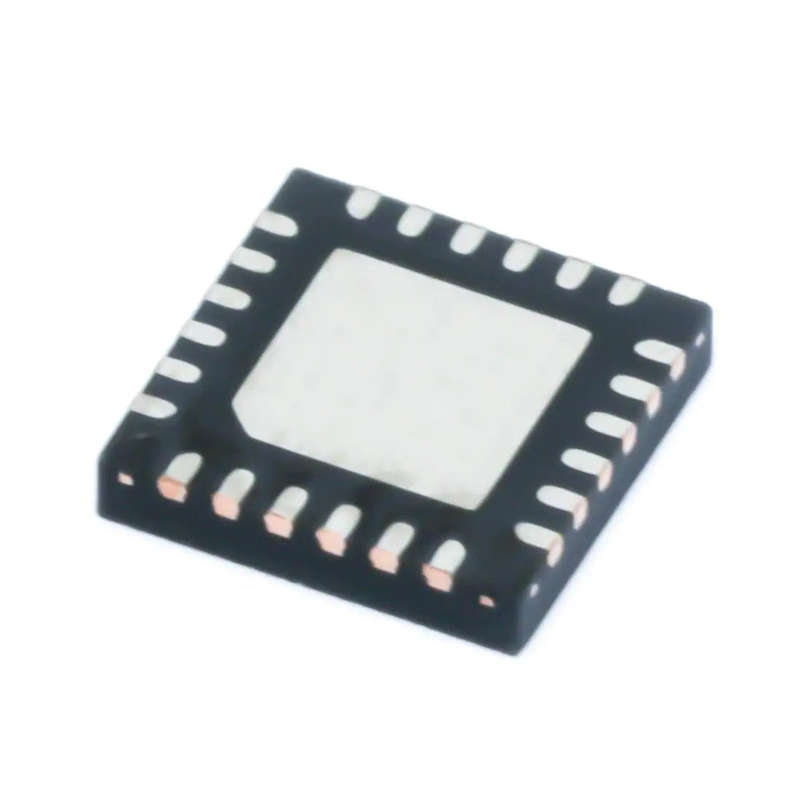

Name: BQ25895 BQ25895RTWR Mobile phone charging IC WQFN24 BQ2589
SKU: BQ25895
Price: 225.90 ZAR
Availability: InStock

BQ25895 BQ25895RTWR Mobile phone charging IC WQFN24 BQ2589

20 available / new

R225.90

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Asetos Computers613

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

BQ25895

Bob Shop ID

643433284

The bq25895 is a highly-integrated 5-A switch-mode battery charge management and system power path management device for single cell Li-Ion and Li-polymer battery. The devices support high input voltage fast charging. The low impedance power path optimizes switch-mode operation efficiency, reduces battery charging time and extends battery life during discharging phase.

The I²C Serial interface with charging and system settings makes the device a truly flexible solution.

The device supports a wide range of input sources, including standard USB host port, USB charging port, and USB compliant adjustable high voltage adapter. To support fast charging using adjustable high voltage adapter, the bq25895 provides support MaxCharge^TM using D+/D pins and DSEL pin for USB switch control. In addition, the device includes interface to support adjustable high voltage adapter using input current pulse protocol. To set the default input current limit, device uses the built-in USB interface. The device is compliant with USB 2.0 and USB 3.0 power spec with input current and voltage regulation. In addition, the Input Current Optimizer (ICO) supports the detection of maximum power point detection of the input source without overload. The device supports battery boost operation by supplying adjustable 4.5 V to 5.5 V on PMID pin with up to 3.1 A with integrated charge and boost mode detection

Features for the BQ25895

High Efficiency 5-A, 1.5-MHz Switch Mode Buck Charge
- 93% Charge Efficiency at 2 A and 91% Charge Efficiency at 3 A Charge Current
- Optimize for High Voltage Input (9 V to 12 V)
- Low Power PFM mode for Light Load Operations
Boost Mode Operation with Adjustable Output from 4.5 V to 5.5 V
- Selectable 500-KHz to 1.5-MHz Boost Converter with up to 3.1-A Output
- 93% Boost Efficiency at 5 V at 1 A Output
Integrated Control to Switch Between Charge and Boost Mode
Single Input to Support USB Input and Adjustable High Voltage Adapters
- Support 3.9-V to 14-V Input Voltage Range
- Input Current Limit (100 mA to 3.25 A with 50-mA resolution) to Support USB2.0, USB3.0 standard and High Voltage Adapters
- Maximum Power Tracking by Input Voltage Limit up-to 14V for Wide Range of Adapters
- Auto Detect USB SDP, CDP, DCP, and Non-standard Adapters
Input Current Optimizer (ICO) to Maximize Input Power without Overloading Adapters
Resistance Compensation (IRCOMP) from Charger Output to Cell Terminal
Highest Battery Discharge Efficiency with 11-m Battery Discharge MOSFET up to 9 A
Integrated ADC for System Monitor
(Voltage, Temperature, Charge Current)
Narrow VDC (NVDC) Power Path Management
- Instant-on Works with No Battery or Deeply Discharged Battery
- Ideal Diode Operation in Battery Supplement Mode
BATFET Control to Support Ship Mode, Wake Up, and Full System Reset
Flexible Autonomous and I²C Mode for Optimal System Performance
High Integration includes all MOSFETs, Current Sensing and Loop Compensation
12-µA Low Battery Leakage Current to Support Ship Mode
High Accuracy
- ±0.5% Charge Voltage Regulation
- ±5% Charge Current Regulation
- ±7.5% Input Current Regulation
Safety
- Battery Temperature Sensing for Charge and Boost Mode
- Thermal Regulation and Thermal Shutdown
- Create a Custom Design Using the bq25895 With the WEBENCH^® Power Designer
