SELECTED OPTION:
PLUG: EUPLUG
Features: BR886A has a special feature to solve the repair computer monitor, color TV, audio test with RGB, VIDEO, AUDIO source, with the monitor`s VGA plug or random with the VIDEO plug directly into the VGA socket can be, the program Automatic identification is a VGA signal or VIDEO plug, and automatically output the appropriate test signal. RGB signal has 9 kinds of test screen, each screen has 9 kinds of pixels; VIDEO signal has 12 kinds of test screen, can be transferred to P / N system, these Signal in addition to repair machine for the test machine can also be used Check whether the line field of the machine after you fix and the linearity is clear and the color is pure and static convergence is good. Completely solve the source of your signal space and The cost of the problem, from the computer monitor to do not have a computer host.
Specification: 5 uF -1000 uF, Resolution <1.7% Capacitance value; (fit for Polar electrolytic capacitors, Resolution16HZ, the same as bellow) 1000uF-1500 uF, Resolution <2.1% Capacitance value; 1500 uF -2000 uF, Resolution<3.2%Capacitance value; 2000 uF -3000 uF, Resolution<4.8%Capacitance value; 3000 uF -5000 uF, Resolution<5.8%Capacitance value; 5000 uF -7000 uF, Resolution<14.3%Capacitance value; More then 7000 uF, Resolution<18%Capacitance value; Test Acceleration grid Voltage: DC36V-2500V; Error lower than 5%,(When the voltage is higher than 36V,it can start the proceed of testing Acceleration grid Voltage automatically) The range of voltage regulator tube`s regular value: 0.5V-40V, Power <1W Error +/- 2.5% The currant of voltage regulator tubes: 2-30mA Optocoupler Test: 4 Pins or 6 Pins Diode forward voltage drop measurement: YES (Note: Min test current should be bigger than 4mA, Voltage: 24V ~ 55V) Backlight Lamp:it can light the LED screen backlight lamps which are 1 Meter or bellow 1 Meter.The highest Excitation voltage 1700VAC. Infrared remote control transmitter test:YES Infrared remote control decoding:can decode CDVCDDVD ; Remote controlkey code and User code.Hexadecimal code Withstand test: 100V~2500VDC Multi-speed adjustable Leak current:lower than 0.12mA. Automatic lat ch settings value. Error:<3%. Line Pulse: 16KHZ Duty Cycle: 50% Vp-p=5V Field Pulse: 50HZ Duty Cycle: 50% Vp-p=5V Valumn: 45mm*92mm*180mm Weight: 0.5kg Adapter: input current: 100V-240V Output: 24VDC Current: 0.8A
Package includes: 1 X Multimeter 1 X Adapter (EU Plug Note: We will send you a plug adapter according to your country.) 2 X Plug to Crocodile Clip 2 X Plug to Probe

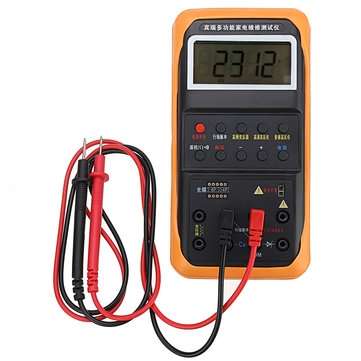

Details pictures:
