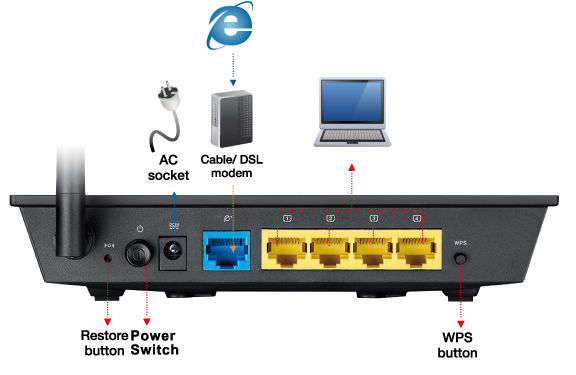

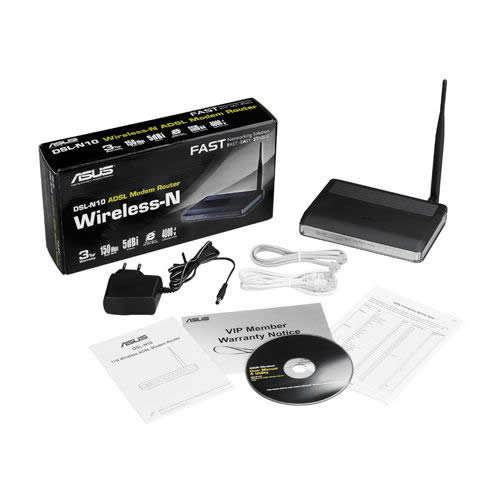

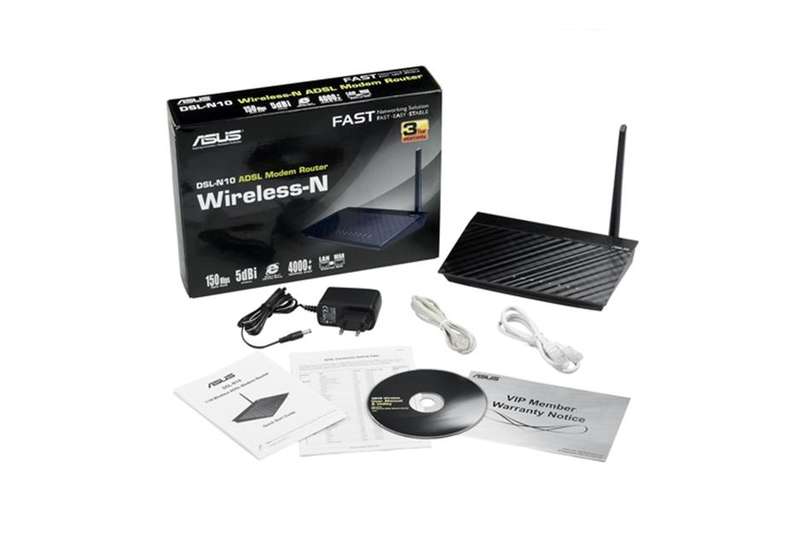

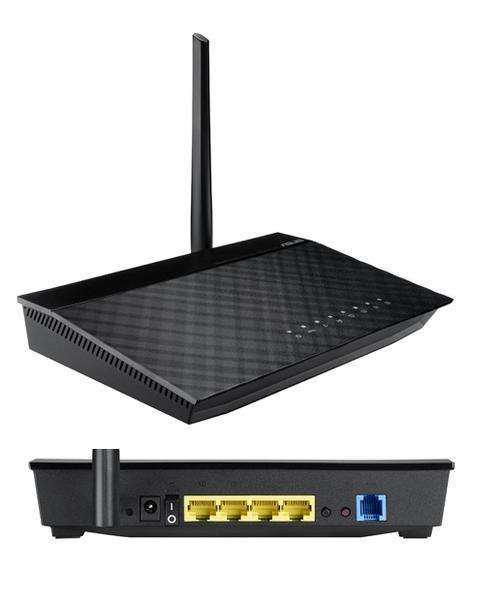

Description Asus Wireless-N150 ADSL Modem Router, Retail Box , 3 year Limited Warranty Product Overview The Asus DSL-N10 Wireless-N ADSL Modem Router is a true 2-in-1 device, serving as a wired modem and a wireless router. It combines all the functionality of both device classes and adds a range of features designed specifically for small business and home office networking use. It supports 802.11b/g/n Wi-Fi wireless networks and has four 10/100Mbps Ethernet ports. including a powerful, wide coverage 5dBi antenna, four multiple SSIDs, plug-and-connect easy setup, and simple bandwidth prioritization. With the ASUS unique Quick Internet Setup and Graphical User Interface, this ASUS router is easy for anyone to install and manage, even for novices! This wireless router even allows you to set up 4 SSIDs, so, users can flexibly manage internet access and bandwidth allocation. A convenient hardware switch allows users to quickly and easily change between AP, router and repeater modes. |
• Bandwidth Allocation and Access Control This ASUS router provides up to four wireless networking grades with dynamic bandwidth management. For example, high bandwidth and full access for managers, mid-range settings and privacy controls for staff, and basic internet access for guests. This flexibility makes it the best choice for SOHO wireless networking • EZQoS - Quality of Service With ASUS unique EZQoS engine, users can easily allocate bandwidth according to their individual needs by simply clicking on the buttons, such as voice or gaming. They can also assign more or less bandwidth to streamline multiple network activities (FTP, Games, P2P) to work seamlessly at the same time • Network Map and Manual Free Management This wireless router has a straight forward design in order to help users display the whole network map, monitor the network status, clearly provide WAN/LAN information and prevent unauthorized access to your wireless network • Plug and Surf Install your ASUS wireless router in three easy steps! Just power up the router, launch the browser and enter the information provided by your ISP. You'll be on the Internet within minutes • Extended Wireless Coverage With one 5dBi high-gain antenna, this wireless router provides a boosted signal to ensure extended wireless networking range |
Specifications Network Standard IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, IPv4 Product Segment N150 instant easy access; 150Mbps Wi-Fi Data Rate 802.11b : 1, 2, 5.5, 11Mbps 802.11g : 6,9,12,18,24,36,48,54Mbps 802.11n : up to 150Mbps xDSL Data Rate ANSI T1.413 Issue 2, ITU-T G.992.1 Annex A (G.dmt), ITU-T G.992.2 (G.lite), ITU-T G.994.1 (G.hs), ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.5 Annex A/M ADSL 2/2+ 24Mbps downstream Antenna Detachable 5 dBi antenna x 1 LED Indicator Power, ADSL, Internet, WLAN, LAN x 4 Button WPS Button, Reset Button, Power Switch, Wireless on/off Button Ports 1 x RJ11 for ADSL 4 x RJ45 for 10/100 BaseT for LAN Operating Frequency 2.4GHz Operation Channel 11 for N. America 13 Europe (ETSI) Memory 4MB Flash/32MB SDRAM for Wi-Fi 1MB Flash/2MB SDRAM for ADSL Output Power b mode : 17 ~19 dBm g mode : 15 ~17 dBm n mode : 15 ~17 dBm Security 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, Radius with 802.1x, WPS support Firewall & Access Control Built-in NAT and SPI firewall Port, IP packet, URL, MAC filter Management Web-based GUI configuration Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI Auto VPI/VCI detection Configuration backup and restore Diagnostics Log & Trace function Utilities ADSL Setting Wizard Firmware Restoration Device Discovery VPN Support IPSec Pass-Throuth PPTP Pass-Through L2TP Pass-Through Power Adapter AC Input : 100 ~240 V(50~60HZ) DC Output : 12 V/1 A Power Consumption : 12 W Max. Dimensions 164 x 116.5 x 31 mm (WxDxH) Weight 255 g (Device Only) OS Support Windows® 8 , 32bit/64bit Windows® 7 , 32bit/64bit Windows® Vista , 32bit/64bit Windows® XP , 32bit/64bit Mac OS X Linux Whats in the Box DSL-N10 Wireless ADSL Router 5dBi detachable antenna Power adapter Support CD (user manual, utilities) RJ45 cable RJ11 cable Quick Start Guid |
