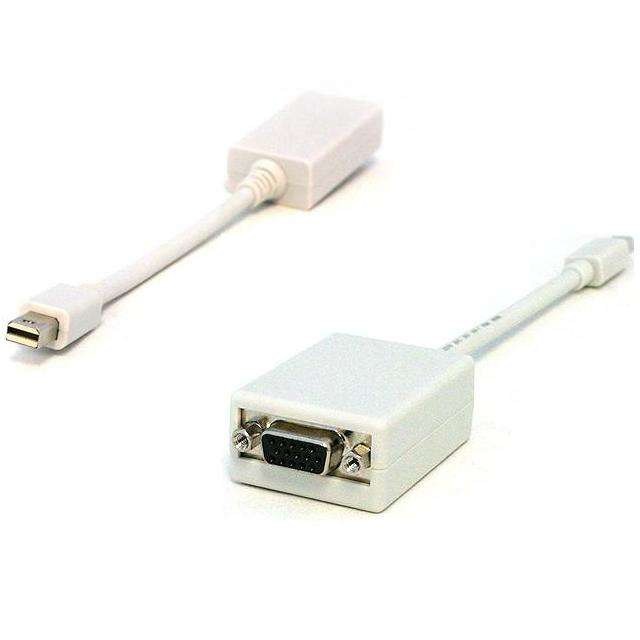

DisplayPort to VGA Adapter quick view:
what is displayport? The displayPort to VGA adapter sends video from your MacBook, Mac, or PC laptop via Mini DisplayPort to monitors, TVs, or projectors.
Features
This Mini DisplayPort to VGA converter has many features that enable it to perform in a superior manner. Among those features you will find:
1.Mini DisplayPort 1.1a compliant receiver offering 5.4 Gbps bandwidth over 2 lanes
2. tegrated triple 10-bit, 162 MHz video DAC for analog VGA signal output
3.supports up to 1080p, 1920 x 1200 reduced blanking video resolution
4. Ultra-fast video image recovery.
5.ID pass-through from PC source to display
6.read Spectrum (de-spreading) for EMI reduction
7. automatic monitor plug and unplug detection
8. with power standby mode operation initiated based on sink detection status
9. powered from Mini DisplayPort source
10. 3V IO, 1.2V Core
11. power operation – Active 400mW, standby mode 15mW
Note: For few display cards, the image would not appear until the PC enters into Windows from DOS at the time of restarting.
Specification:
Signal Inputs/Output
Maximum Single Link Range:1920X1200, 1080P
Video format supported
VGA:Max to1920x1200
Operating Frequency
Vertical Frequency Range: 50/60Hz
Video Amplifier Bandwidth: 162MHz
