BRAND NEW - WIRELESS CAMERA KIT
As the parent of an infant and older children, you may want to keep an eye on your little ones at all times from up to 4 locations. This “State of the Art” High quality Wireless Video Camera with Night Vision, will broadcast live color video to your TV, VCR or PC. Wide use in Home, Office, School, Age Care, Childcare applications. Also ideal for Theft Prevention, after-hours Surveillance and Home Security.
Its’ weather resistant design and IR illumination will allows you to install the camera indoors or outdoors even in some dim light. You can also hook it up to a VCR or DVR for recording by the av. cable and has a Built-in Microphone for Audio Monitoring. It's a good choice for your Home or Business Security. Set-up is fast and easy with the 2.4GHz Wireless Video Camera System, our most affordable wireless system! Just connect it to an AC adapter, and it will send color Surveillance Images to a Wireless receiver that you connect to any TV Monitor or VCR, with composite input within 200 feet. With Digital signal transmission, you will experience less interference, and more encryption to protect privacy.
Specification:
380 TVL of horizontal definition.
Extra 4 PIP with 4 channels for watch.
Camera with 12 pcs of φ5 LED infrared lamps and 7m night vision distance.
Camera designed with waterproof.
Camera can work with wire & wireless.
100m transmission distance without block.
Audio monitoring with microphone in camera.
Description:

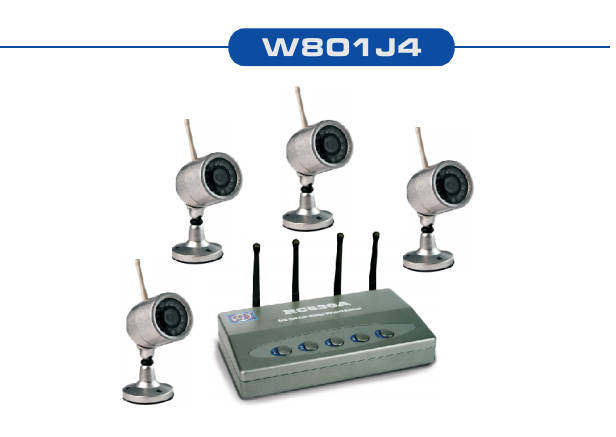

wireless camera and receiver with night vision(W801J4)
Description | |
Features | |
380 TVL of horizontal definition. | |
Extra 4 PIP with 4 channels for watch. | |
Camera with 12 pcs of φ5 LED infrared lamps and 7m night vision distance. | |
Camera designed with waterproof. | |
Camera can work with wire & wireless. | |
100m transmission distance without block. | |
Audio monitoring with microphone in camera. | |
Function parameters | |
Transmission Frequency | ISM 2,400 MHz~2,483 MHz 4CH |
Modulation Mode | FM |
Unobstructed Effective Range | 100m(Without Block) |
Operating Temperature | 0°C~ +50°C / +32°F~ +122°F |
Storage Temperature | –20°C ~ +60°C / -4°F ~ +140°F |
Operating Humidity | 85%RH |
Camera | |
TV System | PAL /NTSC |
Validity Pixel | 628(H) x 582(V) 510(H) x 492(V) |
Image Device | 1/3" OmnVision CMOS |
Horizontal Definition | 380TV Line |
Angular Field of View | 45° (f=6mm) |
Minimum Illumination | 0 Lux |
Scanning Frequency(H) | 15.625KHz 15.734KHz |
Scanning Frequency(V) | 50Hz 60Hz |
Power Adapter | DC 12V/500mA |
Dimension | ¢44x100mm |
Weight | 125g |
Receiver | |
Receiving Sensitivity | ≤-85dBm |
Video Output | 1Vp-p@75Ω,S/N>38dB |
Audio Output | 10KΩ/200mVp-p |
Power Adapter | DC 12V/500mA |
Dimension | 205x120x43mm |
Weight | 520g |
Antenna | 50ohm SMA |
Intermediate Frequency | 480MHz |
Frequency Stabilization | ± 100MHz |
